/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/IEEE 841/Foot Mount, C-Face/00518ST3QIE184TC-W22 WEG 5HP Severe Duty Electric Motor, 1800RPM

Product ID: 00518ST3QIE184TC-W22

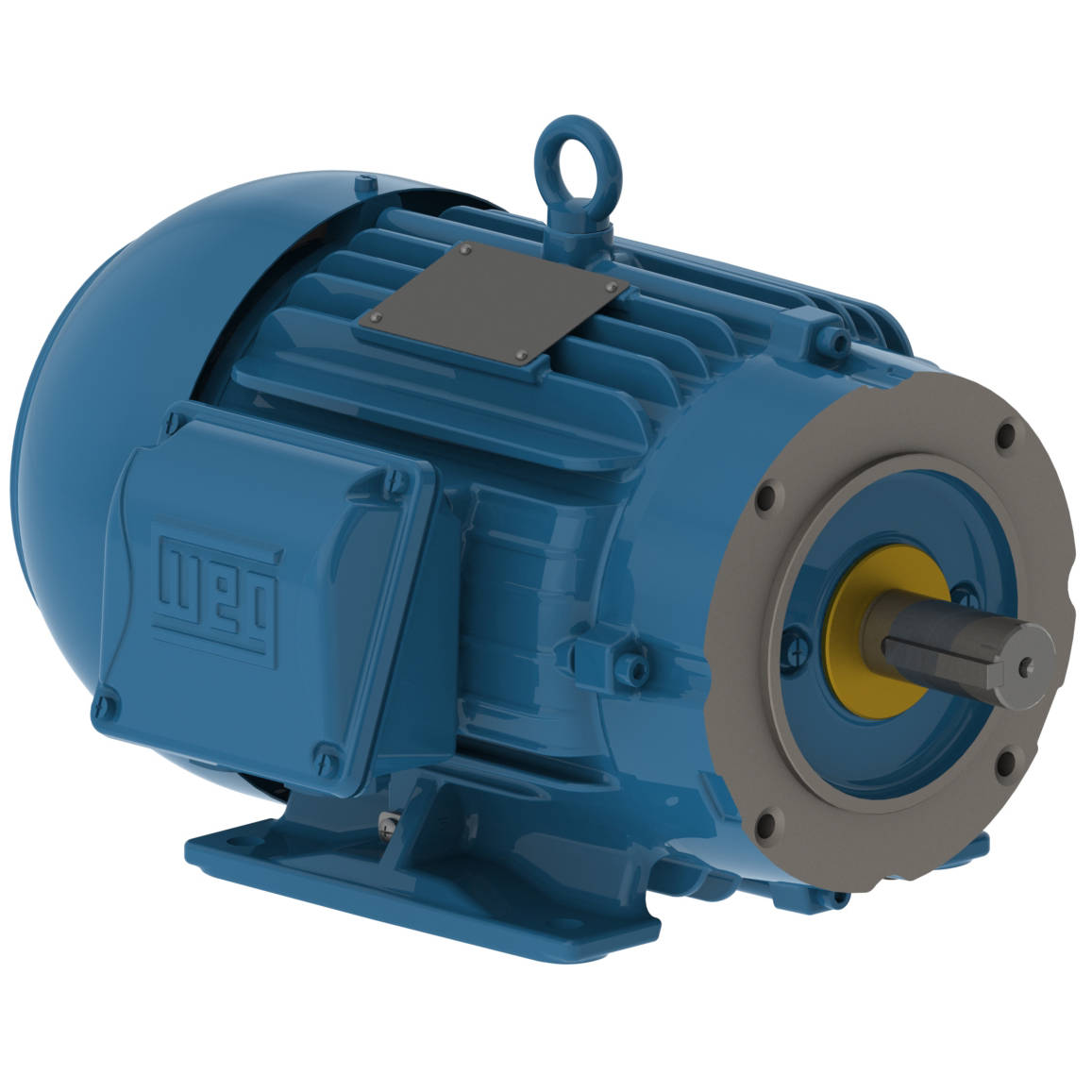

00518ST3QIE184TC-W22 WEG 5HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00518ST3QIE184TC-W22

Selected accessories will also be added to cart

$1,278.04 / Each

Quantity:

IC411 - TEFC, IP55, 182TC/184TC Frame, 460VAC 60Hz 3 Phase, 11433391, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, IEEE 841, 1-1/8" Keyed Shaft

Electric Motors

Frame	182/4TC
Output	5 HP (3.7 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1750 rpm
Slip	2.78 %
Rated voltage	460 V
Rated current	6.49 A
L. R. Amperes	50.0 A
LRC	7.7x(Code J)
No load current	2.90 A
Rated torque	15.0 ft.lb
Locked rotor torque	229 %
Breakdown torque	300 %
Locked rotor time	50s (cold) 28s (hot)

Moment of inertia (J)	0.4003 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	113 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.5	89.5

Power factor

50%	75%	100%
0.62	0.74	0.80

Frame	182/4TC
Output	4 HP (3 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1455 rpm
Slip	3.00 %
Rated voltage	380 V
Rated current	6.42 A
L. R. Amperes	44.9 A
LRC	7.0x(Code J)
No load current	2.80 A
Rated torque	14.4 ft.lb
Locked rotor torque	229 %
Breakdown torque	280 %
Locked rotor time	59s (cold) 33s (hot)

Moment of inertia (J)	0.4003 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	113 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.2	87.7

Power factor

50%	75%	100%
0.61	0.75	0.81

Frame	182/4TC
Output	4 HP (3 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1458 rpm
Slip	2.80 %
Rated voltage	400 V
Rated current	6.21 A
L. R. Amperes	47.2 A
LRC	7.6x(Code K)
No load current	3.00 A
Rated torque	14.4 ft.lb
Locked rotor torque	260 %
Breakdown torque	300 %
Locked rotor time	54s (cold) 30s (hot)

Moment of inertia (J)	0.4003 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	113 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.7	88.2	88.2

Power factor

50%	75%	100%
0.57	0.71	0.79

Frame	182/4TC
Output	4 HP (3 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1462 rpm
Slip	2.53 %
Rated voltage	415 V
Rated current	6.23 A
L. R. Amperes	49.8 A
LRC	8.0x(Code K)
No load current	3.20 A
Rated torque	14.4 ft.lb
Locked rotor torque	290 %
Breakdown torque	320 %
Locked rotor time	50s (cold) 28s (hot)

Moment of inertia (J)	0.4003 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	113 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	88.2	88.2

Power factor

50%	75%	100%
0.53	0.67	0.76

Frame	182/4TC
Output	5 HP (3.7 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1435 rpm
Slip	4.33 %
Rated voltage	380 V
Rated current	7.74 A
L. R. Amperes	44.9 A
LRC	5.8x(Code G)
No load current	2.90 A
Rated torque	18.3 ft.lb
Locked rotor torque	180 %
Breakdown torque	240 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	0.4003 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	113 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	87.5	86.5

Power factor

50%	75%	100%
0.69	0.80	0.84

Frame	182/4TC
Output	5 HP (3.7 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1440 rpm
Slip	4.00 %
Rated voltage	400 V
Rated current	7.44 A
L. R. Amperes	47.6 A
LRC	6.4x(Code H)
No load current	3.00 A
Rated torque	18.2 ft.lb
Locked rotor torque	210 %
Breakdown torque	240 %
Locked rotor time	43s (cold) 24s (hot)

Moment of inertia (J)	0.4003 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	113 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.5	87.5

Power factor

50%	75%	100%
0.65	0.77	0.82

Frame	182/4TC
Output	5 HP (3.7 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1450 rpm
Slip	3.33 %
Rated voltage	415 V
Rated current	7.35 A
L. R. Amperes	50.7 A
LRC	6.9x(Code J)
No load current	3.20 A
Rated torque	18.1 ft.lb
Locked rotor torque	229 %
Breakdown torque	260 %
Locked rotor time	41s (cold) 23s (hot)

Moment of inertia (J)	0.4003 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	113 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.5	87.5

Power factor

50%	75%	100%
0.61	0.74	0.80

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Type T, Threaded
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Foot flatness	(0.005 pol) 0.127 mm
Fan material	Conductive Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	3
