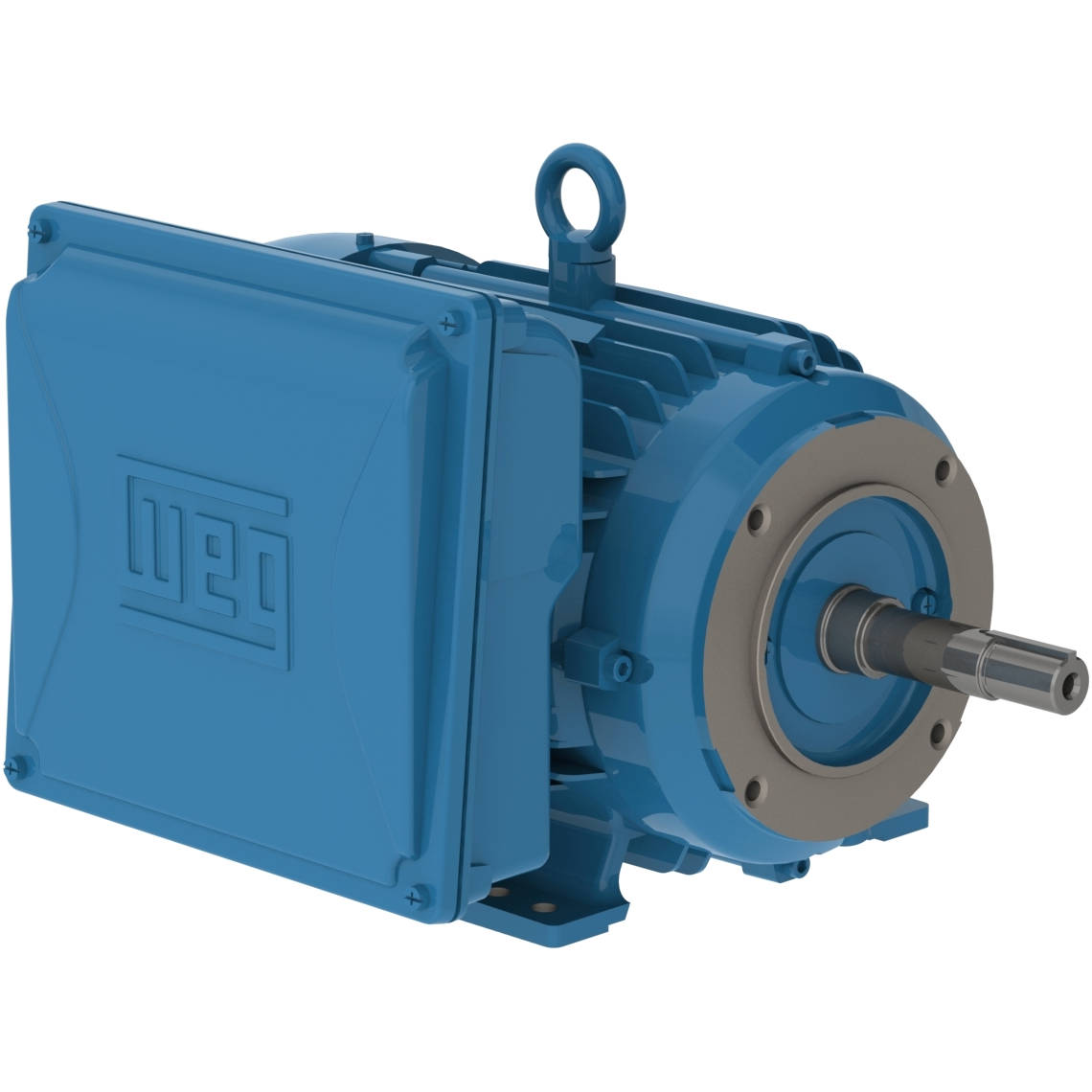

00518ES1B184JM-W22 WEG 5HP JM Close Coupled Pump Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00518ES1B184JM-W22

00518ES1B184JM-W22 WEG 5HP JM Close Coupled Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00518ES1B184JM-W22

Selected accessories will also be added to cart
$1,272.70 / Each
Quantity:
IC411-TEFC, IP55, 182/4JM Frame, 115/208-230V, 60Hz, 1 Phase
14221570, Foot Mounted, Cast Iron Frame, 7/8" Keyed Shaft

Electric Motors

Frame182/4JM
Output5 HP (3.7 kW)
Number of Poles4
Frequency60 Hz
Rated speed1735 rpm
Slip3.61 %
Rated voltage115/230 V
Rated current44.8/22.4 A
L. R. Amperes349/175 A
LRC7.8x(Code K)
No load current19.6/9.80 A
Rated torque15.1 ft.lb
Locked rotor torque280 %
Breakdown torque245 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.4343 sq.ft.lb
Insulation ClassF
Service factor1.15
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Approx. weight³119 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
70.076.078.0

Power factor

50%75%100%
0.830.890.92
Frame182/4JM
Output5 HP (3.7 kW)
Number of Poles4
Frequency60 Hz
Rated speed1720 rpm
Slip4.44 %
Rated voltage208 V
Rated current24.0 A
L. R. Amperes156 A
LRC6.5x(Code H)
No load current5.50 A
Rated torque15.3 ft.lb
Locked rotor torque229 %
Breakdown torque195 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.4343 sq.ft.lb
Insulation ClassF
Service factor1.15
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Approx. weight³119 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
73.077.578.0

Power factor

50%75%100%
0.930.950.95

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C3)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Bearing capYes- Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Fan materialPlastic
Screw capCARBON STEEL SAE 1010/20
NDE bearing SealV'Ring
DE bearing SealV'Ring
Cable Press MaterialSem
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
TEFC
Horsepower
5HP
Frame
182JM
Input Voltage
115VAC
Input Voltage
208VAC
Input Voltage
230VAC
Frame
184JM
