Product ID: 00518ES1C184T-W22

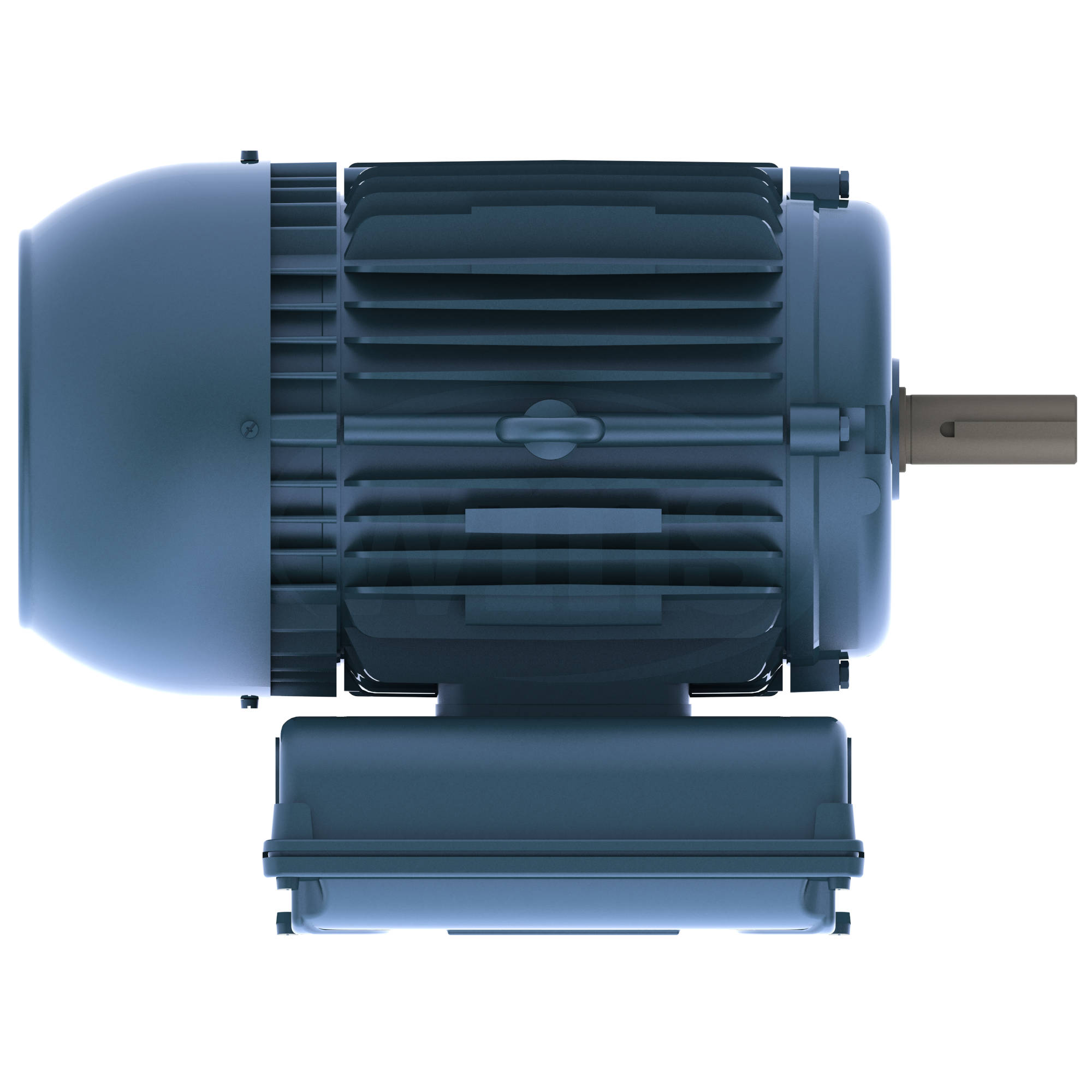

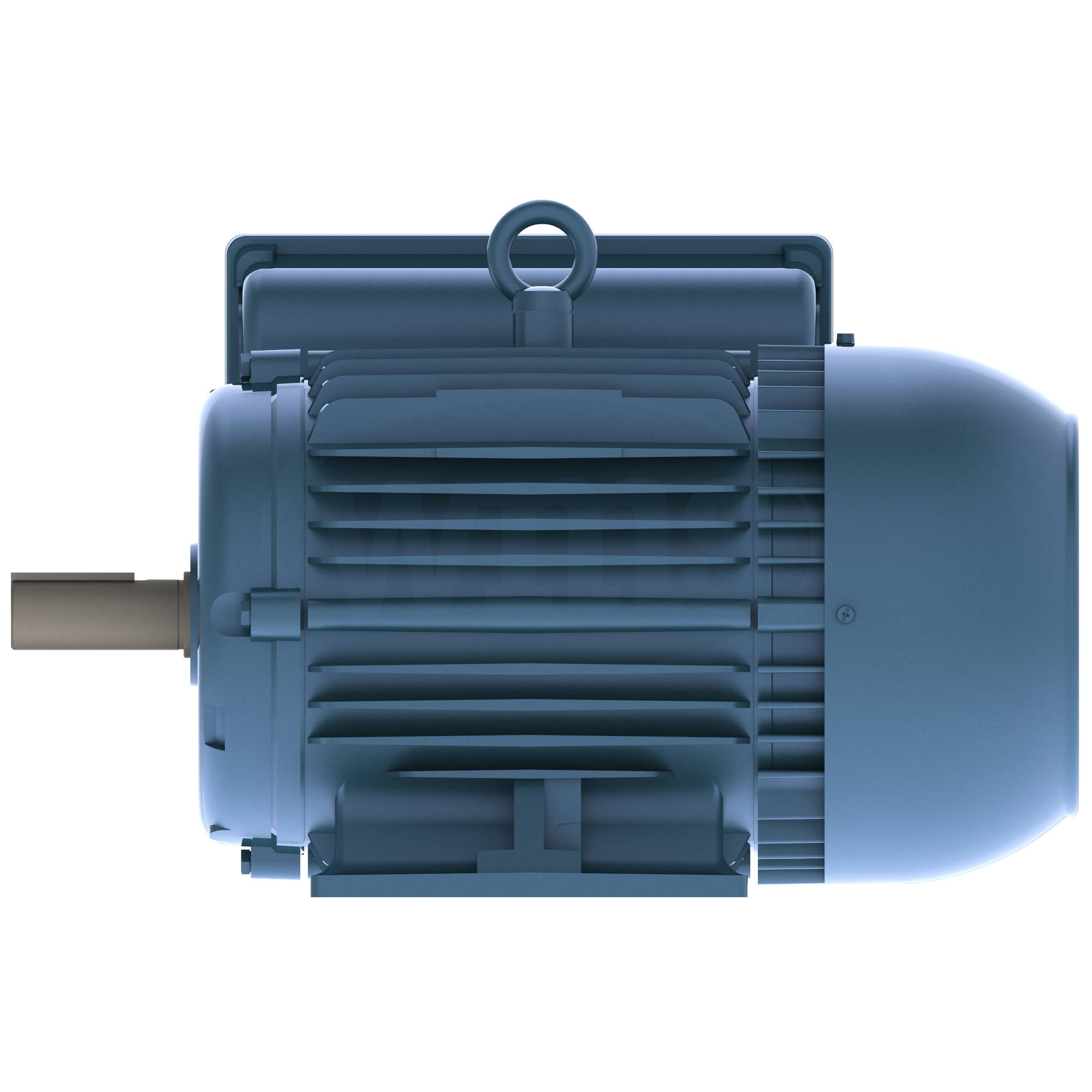

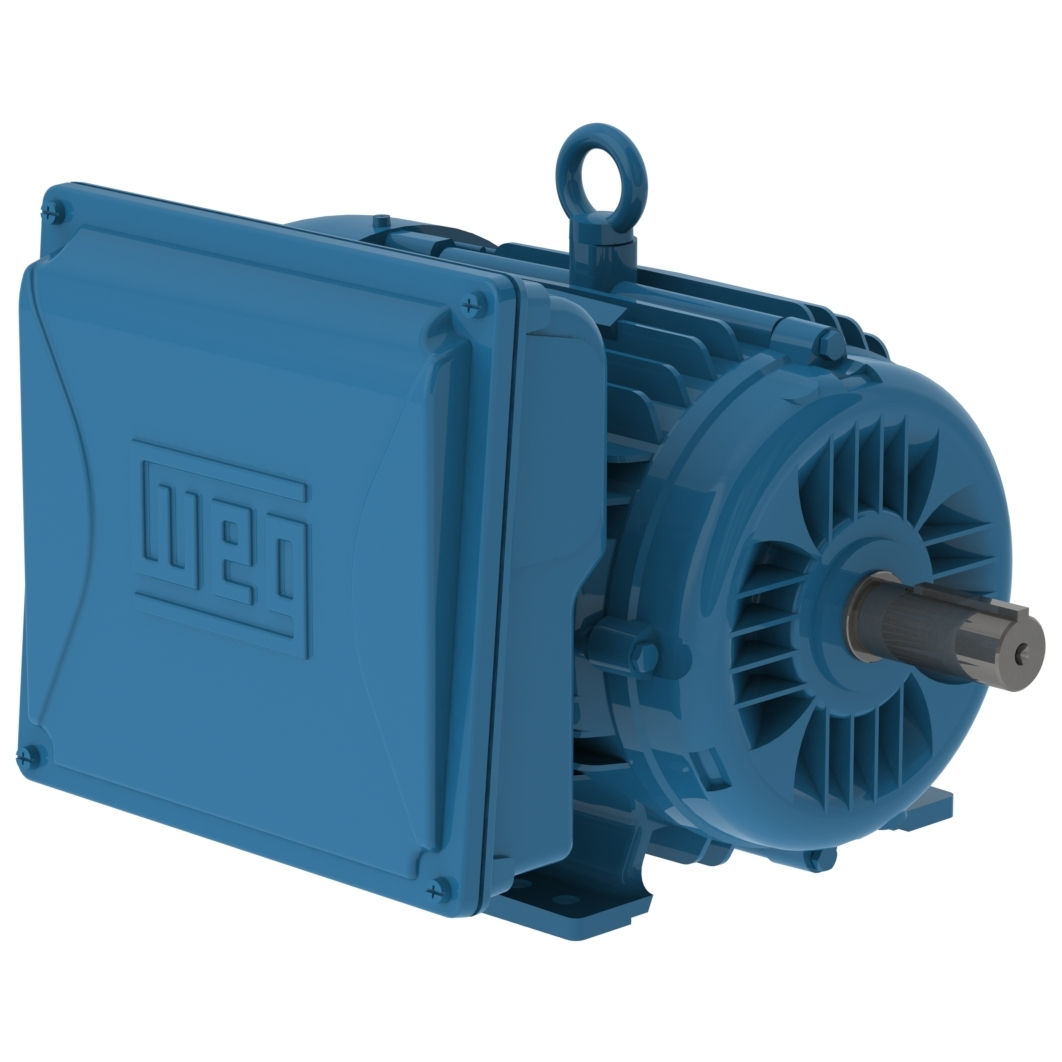

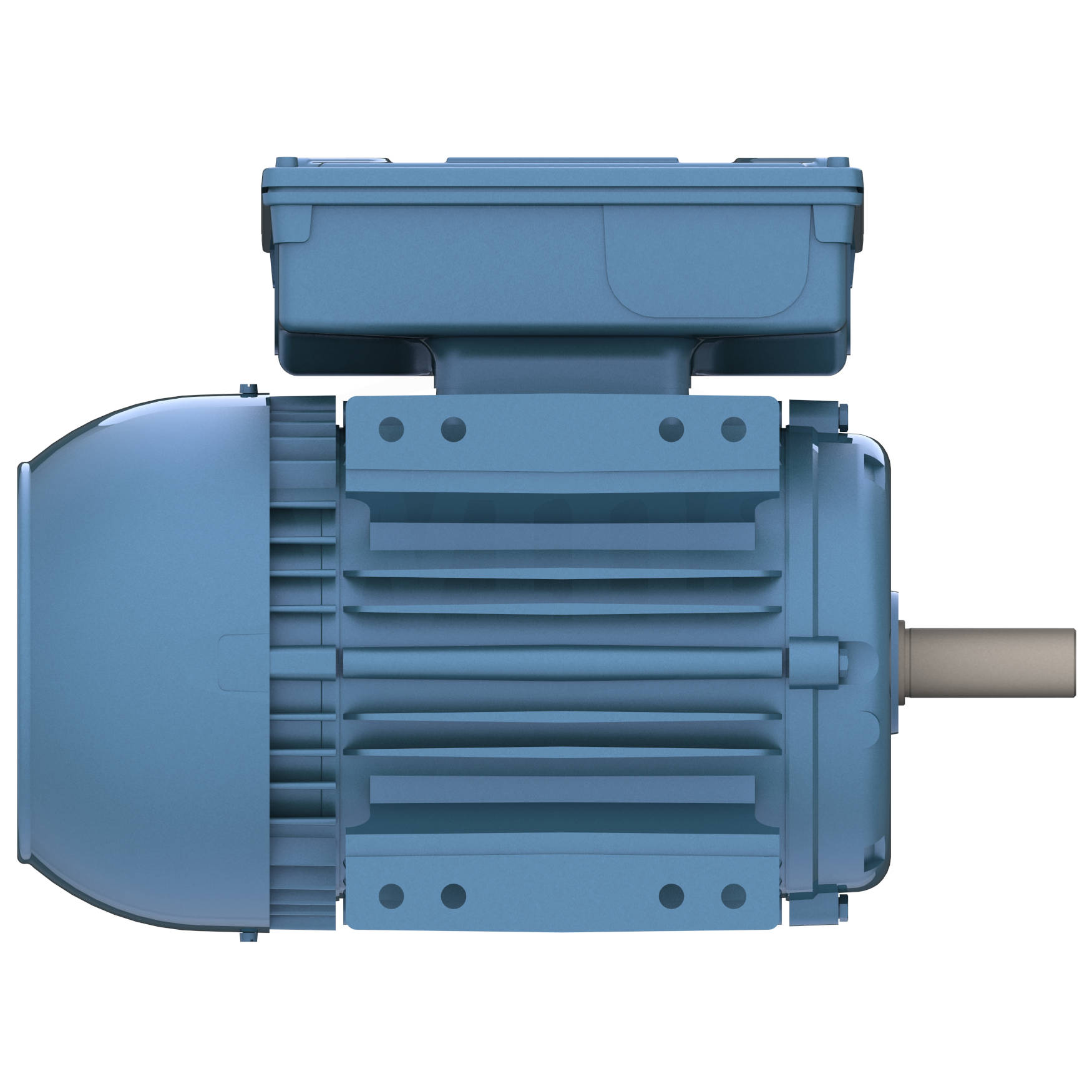

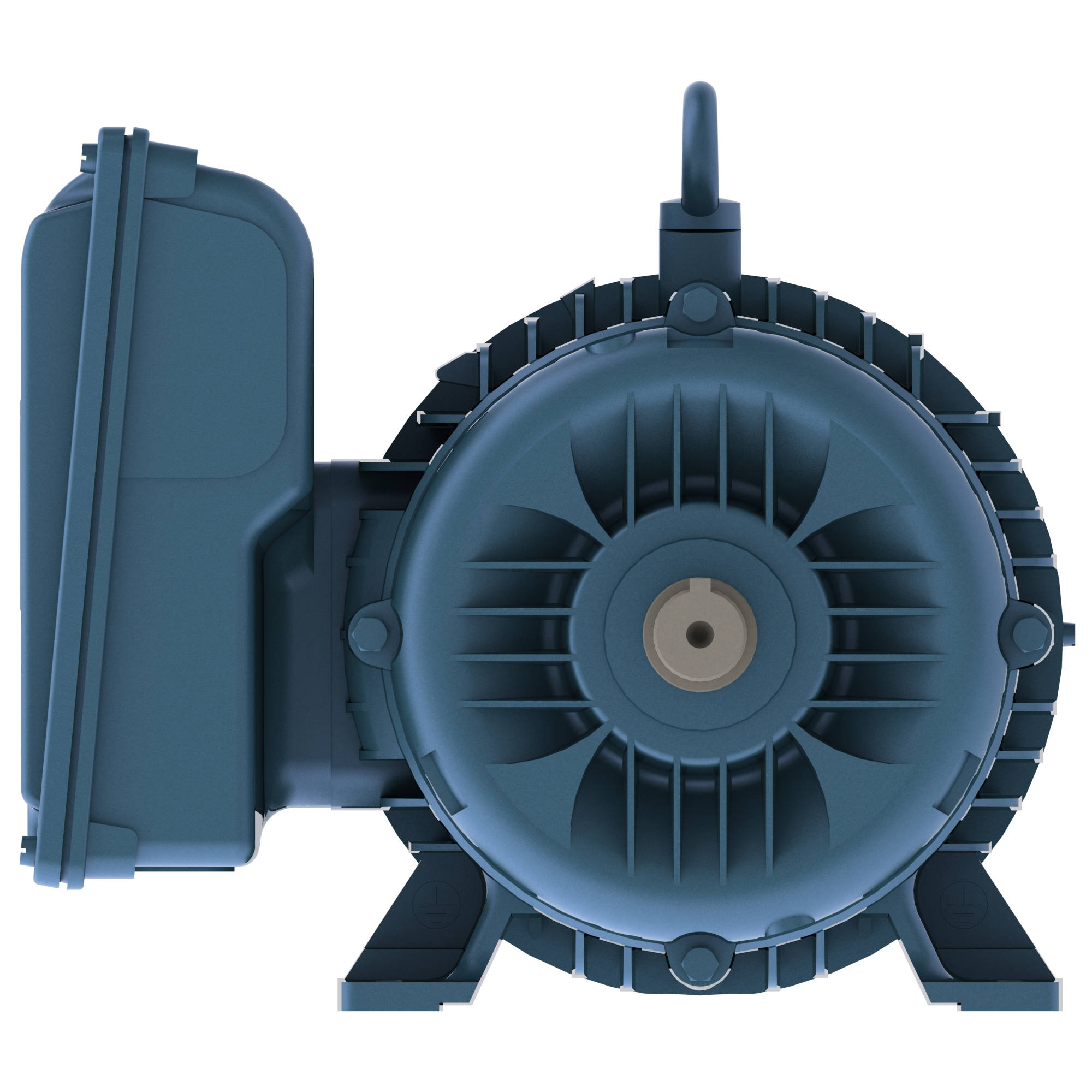

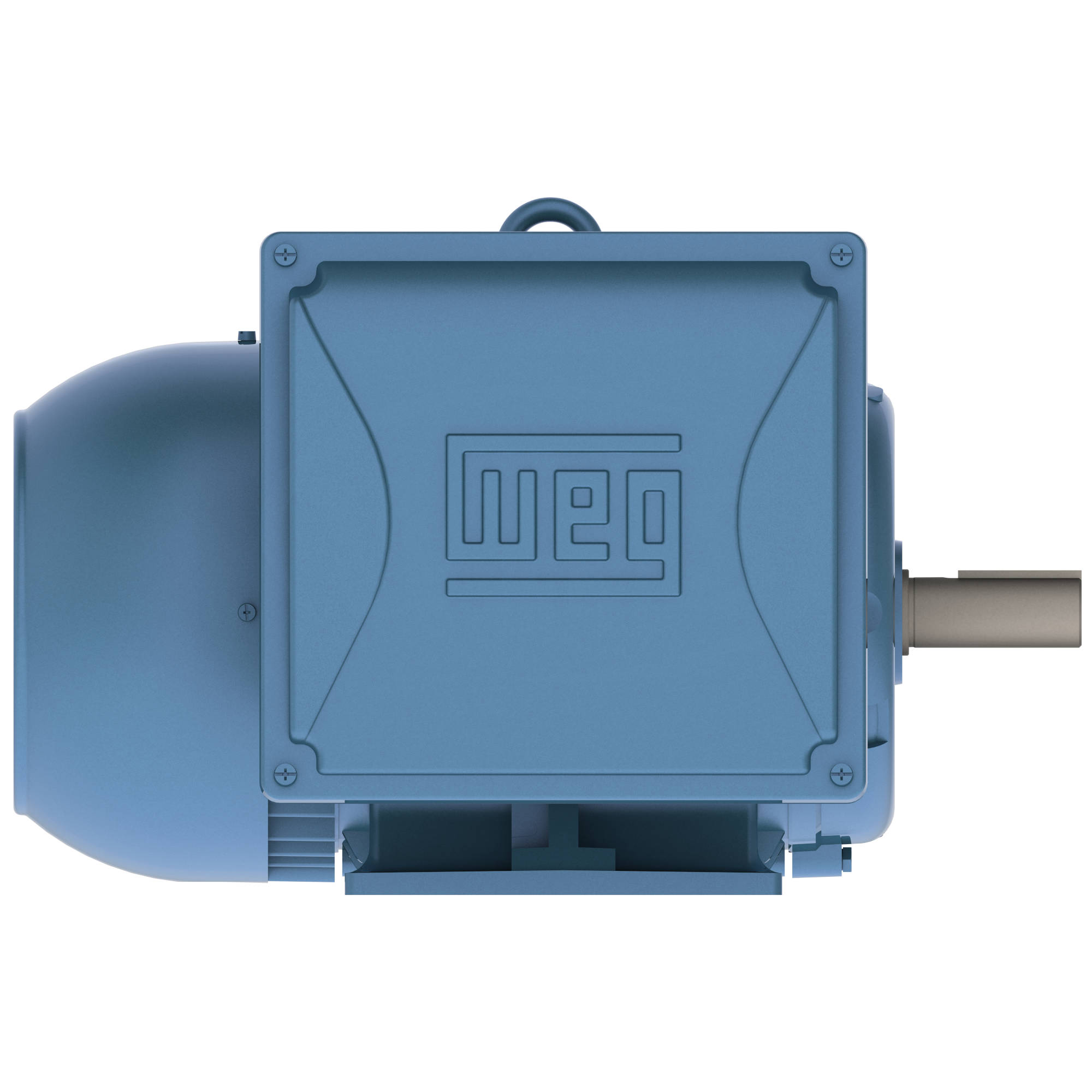

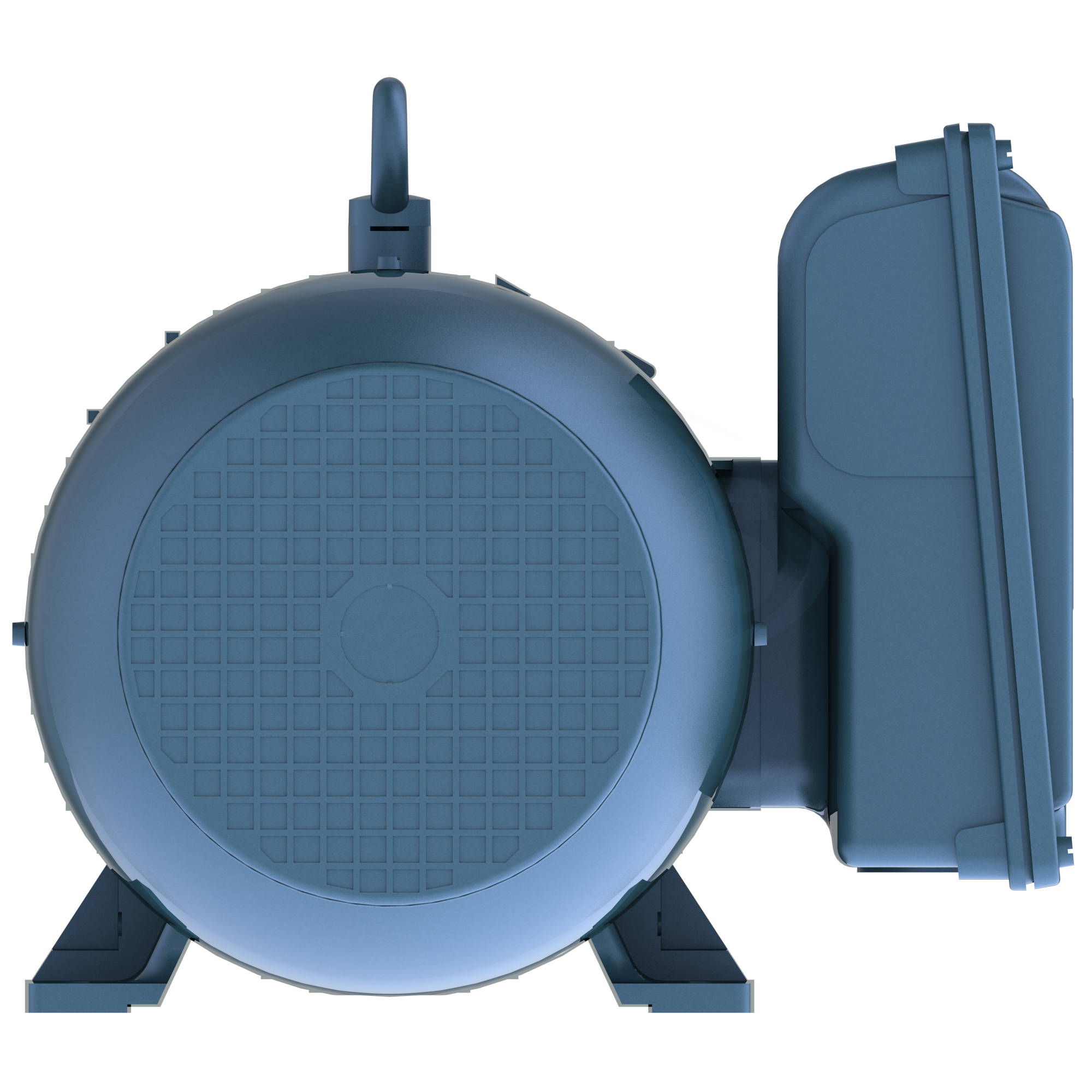

00518ES1C184T-W22 WEG 5HP Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00518ES1C184T-W22

Selected accessories will also be added to cart

$948.74 / Each

Quantity:

IC411 - TEFC, IP55, 182T/184T Frame, 208-230VAC 60Hz Single Phase, 14174625, Foot Mount, Cast Iron Frame, 1-1/8" Keyed Shaft

Electric Motors

Frame	182/4T
Output	5 HP (3.7 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1730 rpm
Slip	3.89 %
Rated voltage	208-230 V
Rated current	23.0-21.4 A
L. R. Amperes	150-139 A
LRC	6.5x(Code H)
No load current	6.90-8.00 A
Rated torque	15.2 ft.lb
Locked rotor torque	360 %
Breakdown torque	235 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	0.4357 sq.ft.lb
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	60.0 dB(A)
Approx. weightÂ³	116 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
