00518ES1E184JP-W22 WEG 5HP JP Close Coupled Pump Electric Motor, 1800RPM

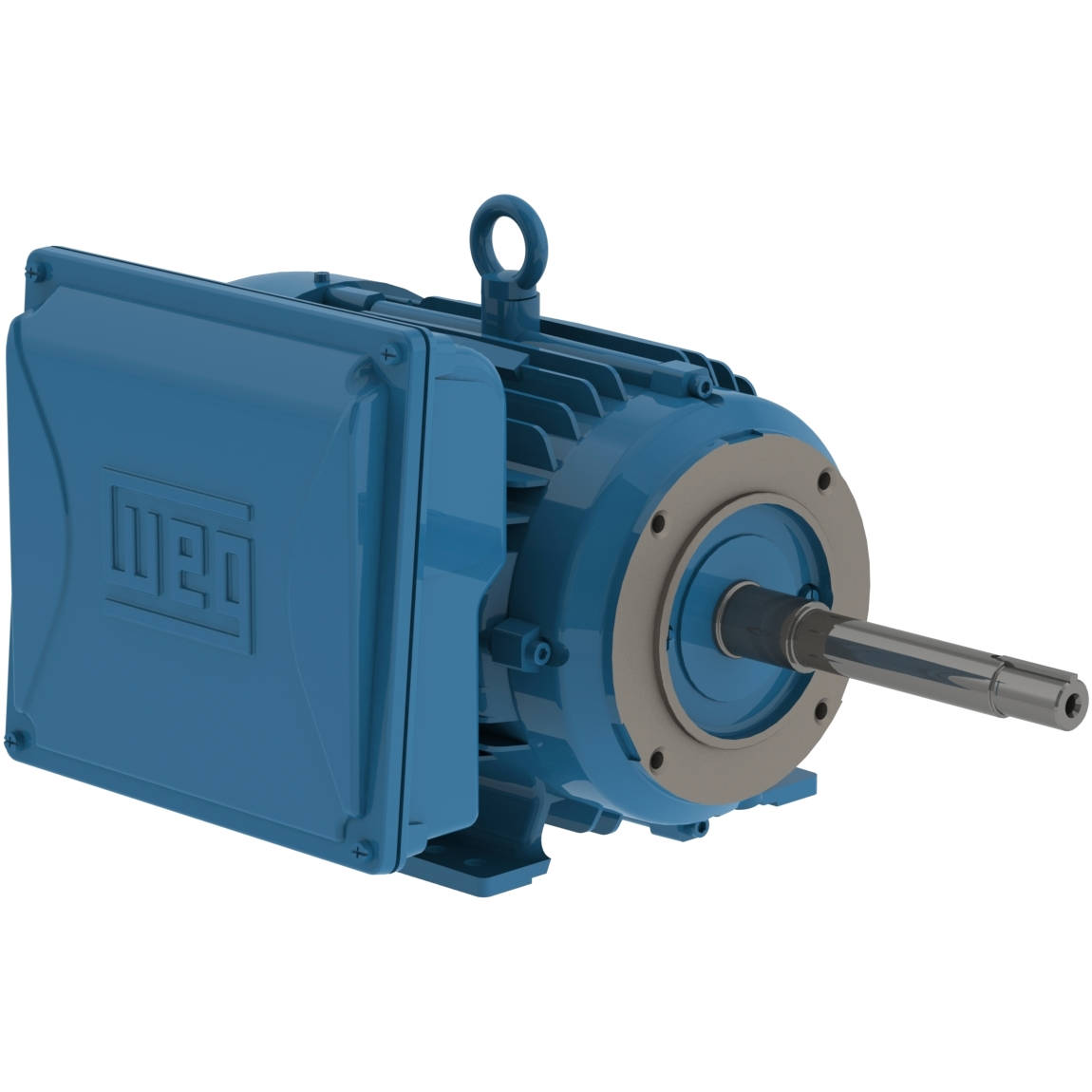

Enlarge Photo

Product ID: 00518ES1E184JP-W22

00518ES1E184JP-W22 WEG 5HP JP Close Coupled Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00518ES1E184JP-W22

Selected accessories will also be added to cart
$1,272.70 / Each
Quantity:
IC411-TEFC, IP55, 182/184JP Frame, 208-230/460V, 602Hz, 1 Phase,14180706, Foot Mounted, Cast Iron, 7/8" Keyed Shaft

Electric Motors

Frame182/4JP
Output5 HP (3.7 kW)
Number of Poles4
Frequency60 Hz
Rated speed1730 rpm
Slip3.89 %
Rated voltage208-230/460 V
Rated current23.0-21.4/10.7 A
L. R. Amperes150-139/69.5 A
LRC6.5x(Code H)
No load current6.90-8.00/4.00 A
Rated torque15.2 ft.lb
Locked rotor torque330 %
Breakdown torque235 %
Locked rotor time12s (cold) 7s (hot)
Moment of inertia (J)0.4357 sq.ft.lb
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²60.0 dB(A)
Approx. weight³116 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
72.578.580.0

Power factor

50%75%100%
0.890.930.94

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C3)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Bearing capYes- Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Fan materialPlastic
Screw capCARBON STEEL SAE 1010/20
NDE bearing SealV'Ring
DE bearing SealV'Ring
Cable Press MaterialSem
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
TEFC
Horsepower
5HP
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
182JP
Frame
184JP
