00518ES1EID184TC-W22 WEG 5HP Irrigation Duty Electric Motor, 1800RPM

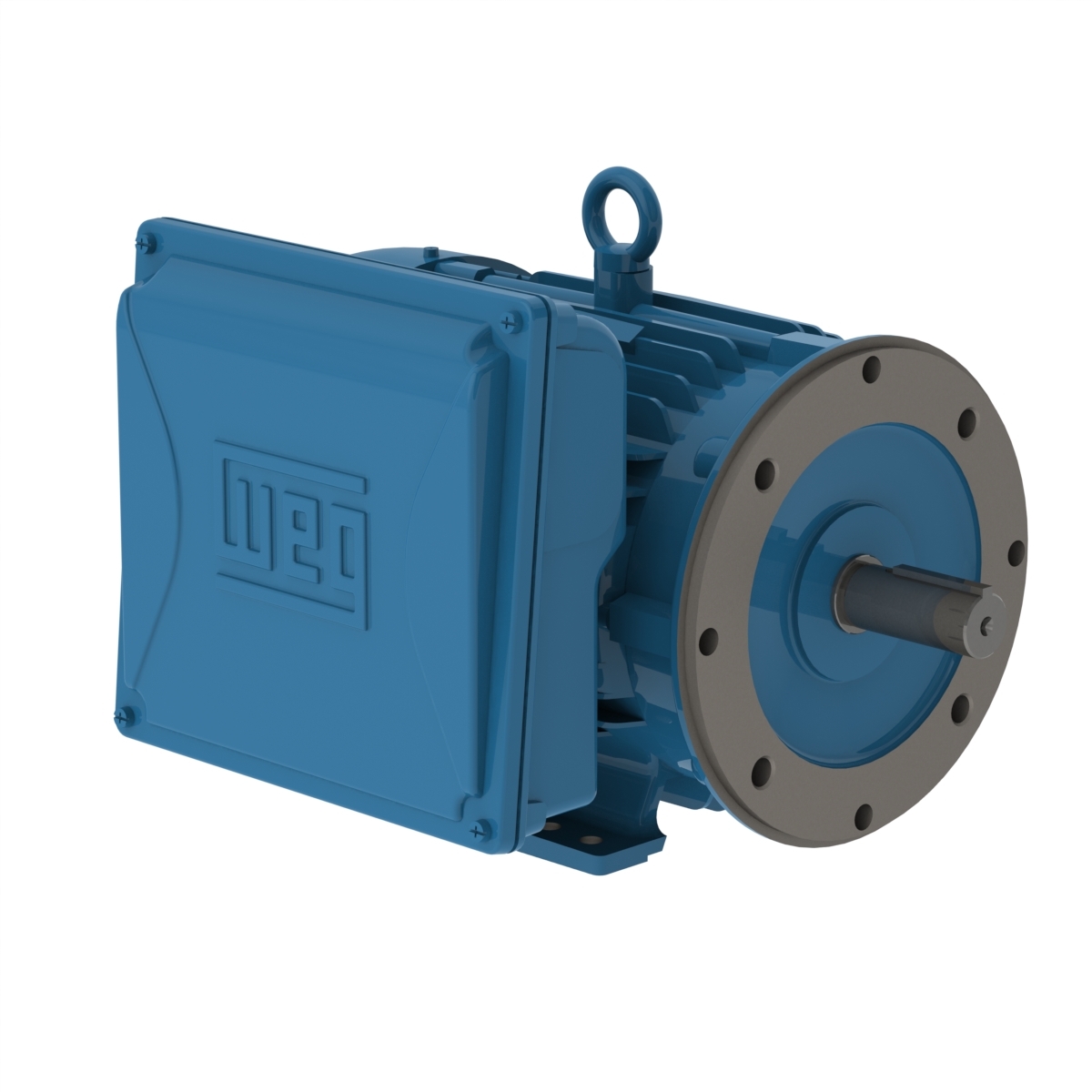

Enlarge Photo

Product ID: 00518ES1EID184TC-W22

00518ES1EID184TC-W22 WEG 5HP Irrigation Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00518ES1EID184TC-W22

Selected accessories will also be added to cart
$1,026.17 / Each
Quantity:
TEFC, 184TC Frame, 208-230/460VAC 60Hz Single Phase, C-Face, Foot Mount, Cast Iron Frame, 14174823, 1-1/8" Keyed Shaft

Electric Motors

Frame182/4TC
Output5 HP (3.7 kW)
Number of Poles4
Frequency60 Hz
Rated speed1730 rpm
Slip3.89 %
Rated voltage208-230/460 V
Rated current23.0-21.4/10.7 A
L. R. Amperes150-139/69.5 A
LRC6.5x(Code H)
No load current6.90-8.00/4.00 A
Rated torque15.0 ft.lb
Locked rotor torque330 %
Breakdown torque235 %
Locked rotor time12s (cold) 7s (hot)
Moment of inertia (J)0.4357 sq.ft.lb
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²60.0 dB(A)
Approx. weight³121 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
72.578.580.0

Power factor

50%75%100%
0.890.930.94
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
TEFC
Horsepower
5HP
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
184TC
