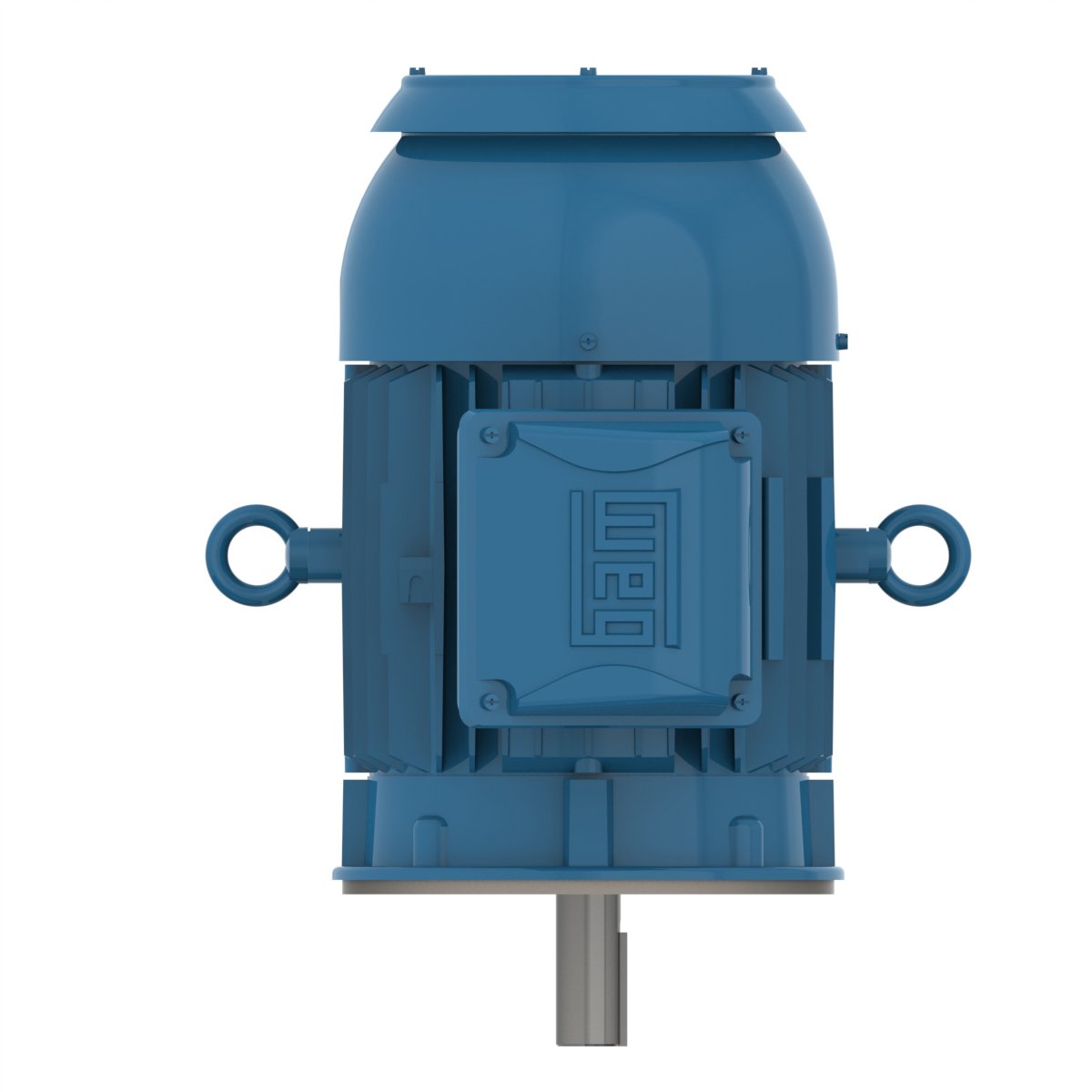

00518ET3ER184TC-W22 WEG 5HP Severe Duty Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00518ET3ER184TC-W22

00518ET3ER184TC-W22 WEG 5HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00518ET3ER184TC-W22

Selected accessories will also be added to cart
$742.26 / Each
Quantity:
IC411 - TEFC, IP55, 184TC Frame, 208-230/460VAC 3-Phase 60Hz, 12216472, C-Face, Footless, Cast Iron, NEMA Premium Efficiency, 1-1/8" Keyed Shaft

Electric Motors

Frame184TC
Output5 HP (3.7 kW)
Number of Poles4
Frequency60 Hz
Rated speed1755 rpm
Slip2.50 %
Rated voltage208-230/460 V
Rated current14.3-12.9/6.45 A
L. R. Amperes107-96.7/48.4 A
LRC7.5x(Code J)
No load current5.52-6.40/3.20 A
Rated torque14.8 ft.lb
Locked rotor torque229 %
Breakdown torque320 %
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)0.4003 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?56.0 dB(A)
Approx. weight?102 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.5  89.5  89.5

Power factor

50%75%100%
0.62  0.74  0.80
Frame184TC
Output4 HP (3 kW)
Number of Poles4
Frequency50 Hz
Rated speed1455 rpm
Slip3.00 %
Rated voltage380 V
Rated current6.42 A
L. R. Amperes44.9 A
LRC7.0x(Code J)
No load current3.15 A
Rated torque14.2 ft.lb
Locked rotor torque229 %
Breakdown torque300 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)0.4003 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?56.0 dB(A)
Approx. weight?102 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
87.5  88.2  87.7

Power factor

50%75%100%
0.61  0.75  0.81
Frame184TC
Output4 HP (3 kW)
Number of Poles4
Frequency50 Hz
Rated speed1455 rpm
Slip3.00 %
Rated voltage400 V
Rated current6.13 A
L. R. Amperes47.2 A
LRC7.7x(Code K)
No load current3.45 A
Rated torque14.2 ft.lb
Locked rotor torque260 %
Breakdown torque350 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)0.4003 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?56.0 dB(A)
Approx. weight?102 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
86.7  88.2  88.2

Power factor

50%75%100%
0.57  0.71  0.79
Frame184TC
Output4 HP (3 kW)
Number of Poles4
Frequency50 Hz
Rated speed1460 rpm
Slip2.67 %
Rated voltage415 V
Rated current6.14 A
L. R. Amperes50.4 A
LRC8.2x(Code L)
No load current3.70 A
Rated torque14.2 ft.lb
Locked rotor torque290 %
Breakdown torque380 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)0.4003 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?56.0 dB(A)
Approx. weight?102 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
86.5  88.2  88.2

Power factor

50%75%100%
0.53  0.67  0.76
Frame184TC
Output5 HP (3.7 kW)
Number of Poles4
Frequency50 Hz
Rated speed1440 rpm
Slip4.00 %
Rated voltage380 V
Rated current7.74 A
L. R. Amperes44.9 A
LRC5.8x(Code G)
No load current3.15 A
Rated torque18.0 ft.lb
Locked rotor torque180 %
Breakdown torque240 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)0.4003 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?56.0 dB(A)
Approx. weight?102 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.5  87.5  86.5

Power factor

50%75%100%
0.69  0.80  0.84
Frame184TC
Output5 HP (3.7 kW)
Number of Poles4
Frequency50 Hz
Rated speed1445 rpm
Slip3.67 %
Rated voltage400 V
Rated current7.44 A
L. R. Amperes47.6 A
LRC6.4x(Code H)
No load current3.45 A
Rated torque17.9 ft.lb
Locked rotor torque210 %
Breakdown torque280 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)0.4003 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?56.0 dB(A)
Approx. weight?102 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
87.5  88.5  87.5

Power factor

50%75%100%
0.65  0.77  0.82
Frame184TC
Output5 HP (3.7 kW)
Number of Poles4
Frequency50 Hz
Rated speed1450 rpm
Slip3.33 %
Rated voltage415 V
Rated current7.35 A
L. R. Amperes50.7 A
LRC6.9x(Code J)
No load current3.70 A
Rated torque17.9 ft.lb
Locked rotor torque229 %
Breakdown torque300 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)0.4003 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?56.0 dB(A)
Approx. weight?102 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
87.5  88.5  87.5

Power factor

50%75%100%
0.61  0.74  0.80

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialRolled Steel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Drip CoverWith
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Application
Severe Duty
Horsepower
5HP
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
184TC
