Product ID: 00518ET3V184TC-W22

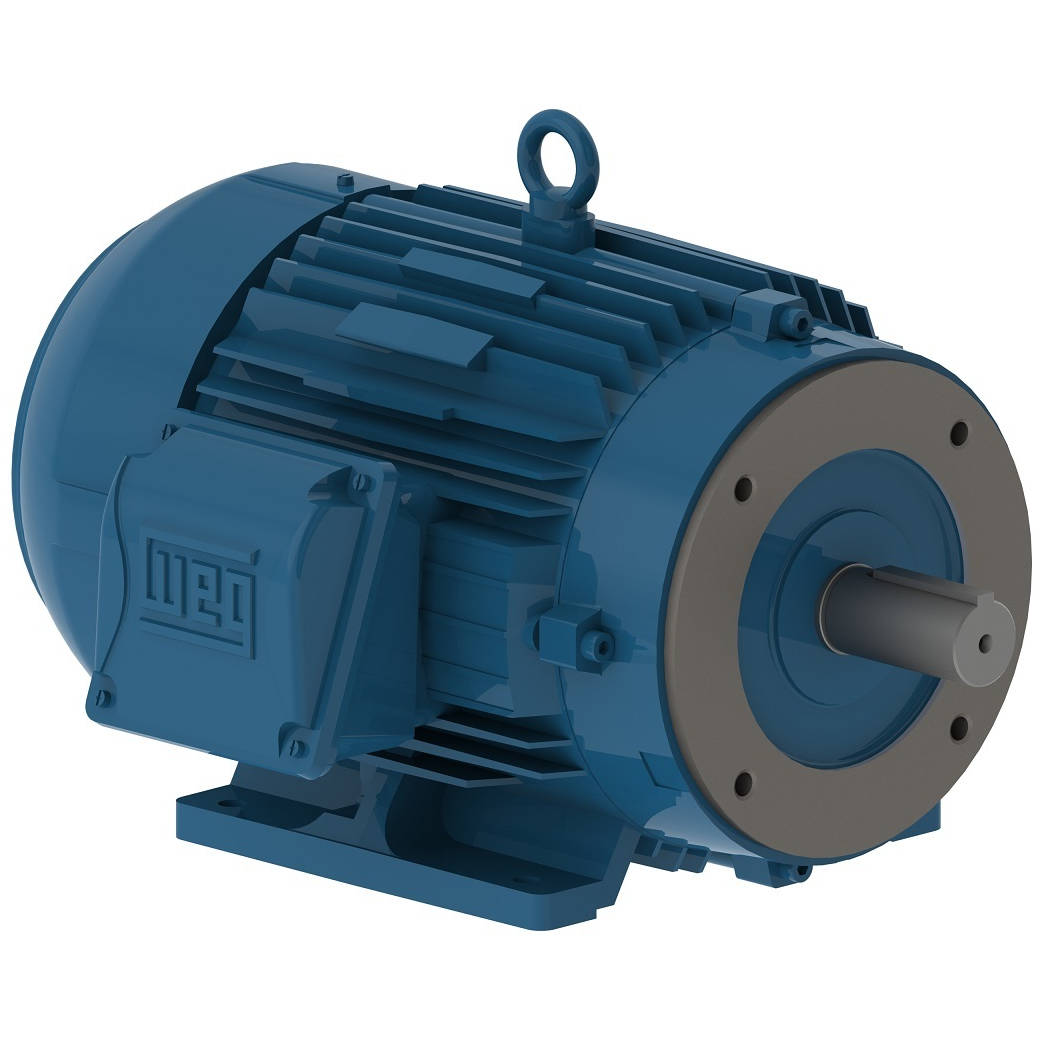

00518ET3V184TC-W22 WEG 5HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00518ET3V184TC-W22

Selected accessories will also be added to cart

$607.50 / Each

Quantity:

IC411 - TEFC, IP55, 182TC/184TC Frame, 200/400VAC 60Hz 3 Phase, 12474535, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, 1-1/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	182/4TC
Output	5 HP (3.7 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1755 rpm
Slip	2.50 %
Rated voltage	200/400 V
Rated current	14.8/7.42 A
L. R. Amperes	111/55.6 A
LRC	7.5x(Code J)
No load current	7.36/3.68 A
Rated torque	15.0 ft.lb
Locked rotor torque	229 %
Breakdown torque	320 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.4003 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	103 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.5	89.5

Power factor

50%	75%	100%
0.62	0.74	0.80

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
