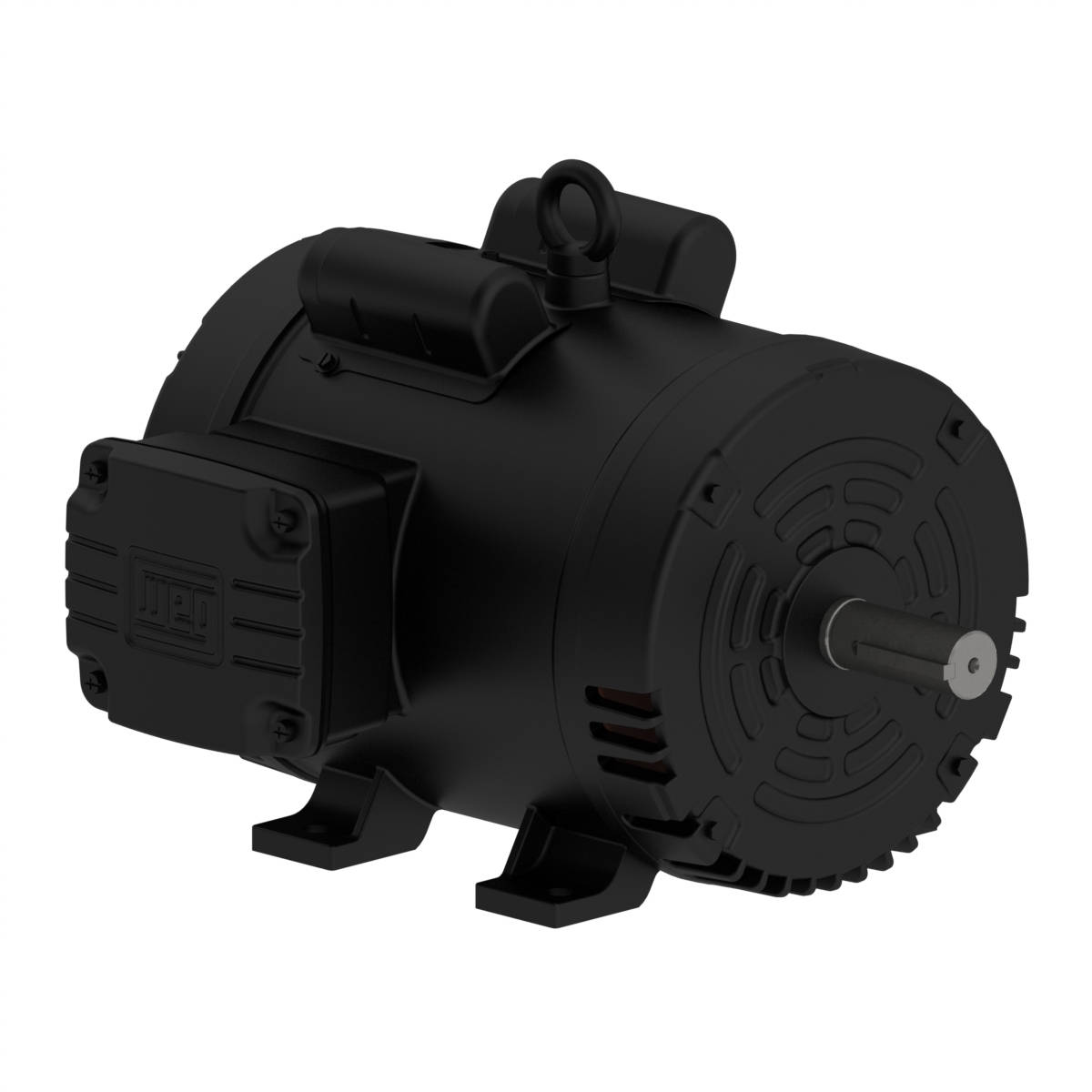

00518OS1CCD184T WEG 5HP Compressor Duty Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00518OS1CCD184T

00518OS1CCD184T WEG 5HP Compressor Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00518OS1CCD184T

Selected accessories will also be added to cart
$606.98 / Each
Quantity:
IC01-ODP, IP22, 184T Frame, 208-230VAC 60Hz Single Phase, 10016488, Foot Mounted, Cast Iron Frame, 1-1/8" Keyed Shaft

Electric Motors

Frame184T
Output5 HP (3.7 kW)
Number of Poles4
Frequency60 Hz
Rated speed1750 rpm
Slip2.78 %
Rated voltage208-230 V
Rated current23.0-20.5 A
L. R. Amperes152-135 A
LRC6.6x(Code G)
No load current4.31-5.00 A
Rated torque14.8 ft.lb
Locked rotor torque254 %
Breakdown torque250 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.4983 sq.ft.lb
Insulation ClassF
Temperature rise80 K
Service factor1.25 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP22
EnclosureIC01 - ODP
MountingF-1
Rotation¹Both (CW and CCW)
Approx. weight³96.2 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
74.080.082.5

Power factor

50%75%100%
0.900.920.95

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207A (ISO 12944 - C2)

Grounding LugsSingle
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Drip CoverWithout

 Loading...

Bearing details

 Drive EndNon Drive End
Bearing type6206 ZZ 6205 ZZ
SealingWithout Bearing SealWithout Bearing Seal
Lubrication interval--
Lubricant amount--
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
188 lb284 lb
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
ODP
Horsepower
5HP
Frame
184T
Input Voltage
208VAC
Input Voltage
230VAC
