00518OS1CCDOL184T WEG 5HP Compressor Duty Electric Motor, 1800RPM

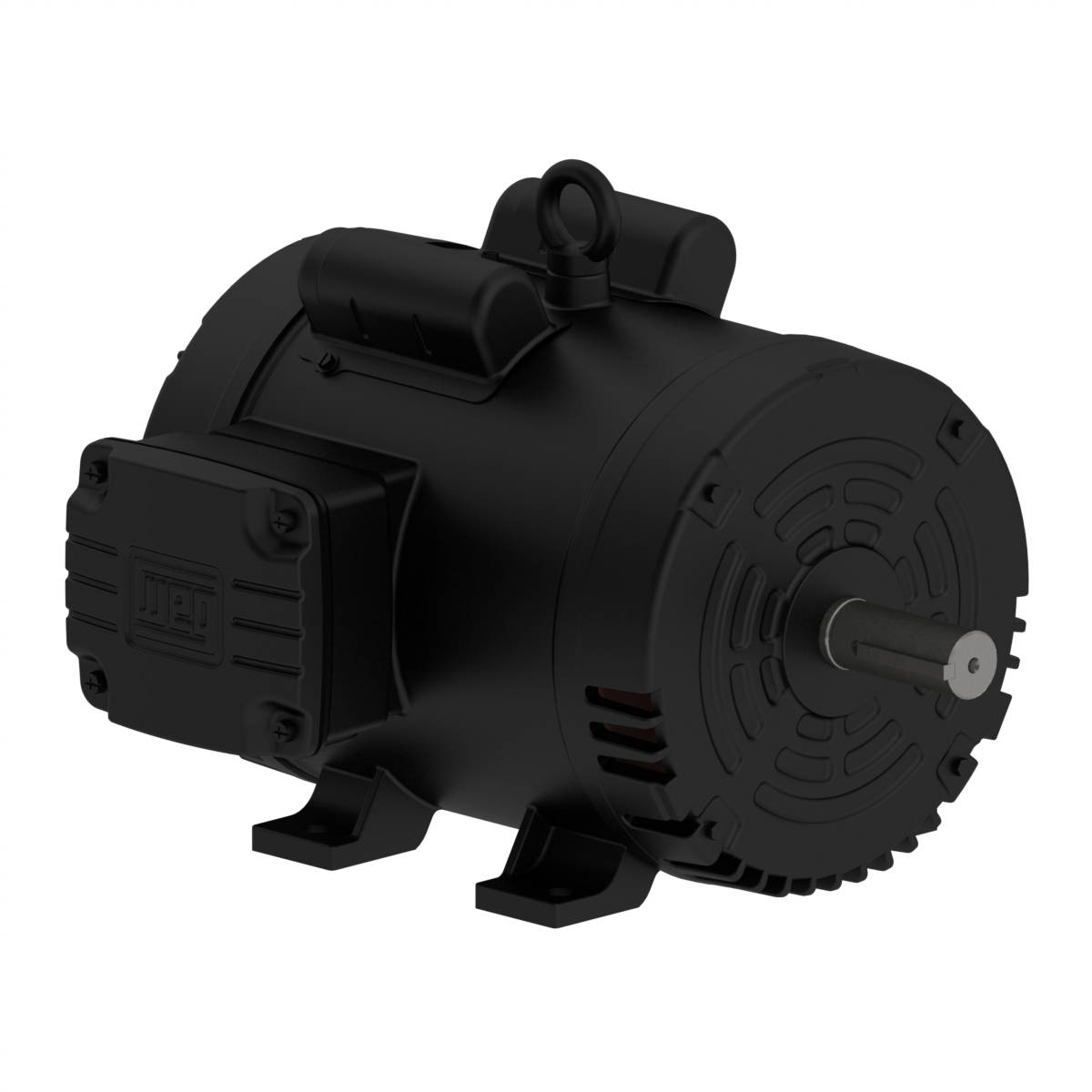

Enlarge Photo

Product ID: 00518OS1CCDOL184T

00518OS1CCDOL184T WEG 5HP Compressor Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00518OS1CCDOL184T

Selected accessories will also be added to cart
$641.69 / Each
Quantity:
IC01-ODP, IP22, 184T Frame, 208-230VAC 60Hz Single Phase, 11206171, Foot Mounted, Cast Iron Frame, 1-1/8" Keyed Shaft

Electric Motors

Frame184T
Output5 HP (3.7 kW)
Number of Poles4
Frequency60 Hz
Rated speed1750 rpm
Slip2.78 %
Rated voltage208-230 V
Rated current23.0-20.7 A
L. R. Amperes152-137 A
LRC6.6x(Code H)
No load current5.17-5.40 A
Rated torque15.0 ft.lb
Locked rotor torque254 %
Breakdown torque220 %
Locked rotor time10s (cold) 6s (hot)
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP22
EnclosureIC01 - ODP
MountingF-1
Rotation¹Both (CW and CCW)
Approx. weight³115 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
74.080.082.5

Power factor

50%75%100%
0.900.920.94

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Manual
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
ODP
Horsepower
5HP
Frame
184T
Input Voltage
208VAC
Input Voltage
230VAC
