/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Rolled Steel, TEFC/Foot Mount/00536ET3E184T-SRT WEG 5HP Electric Motor, 3600RPM

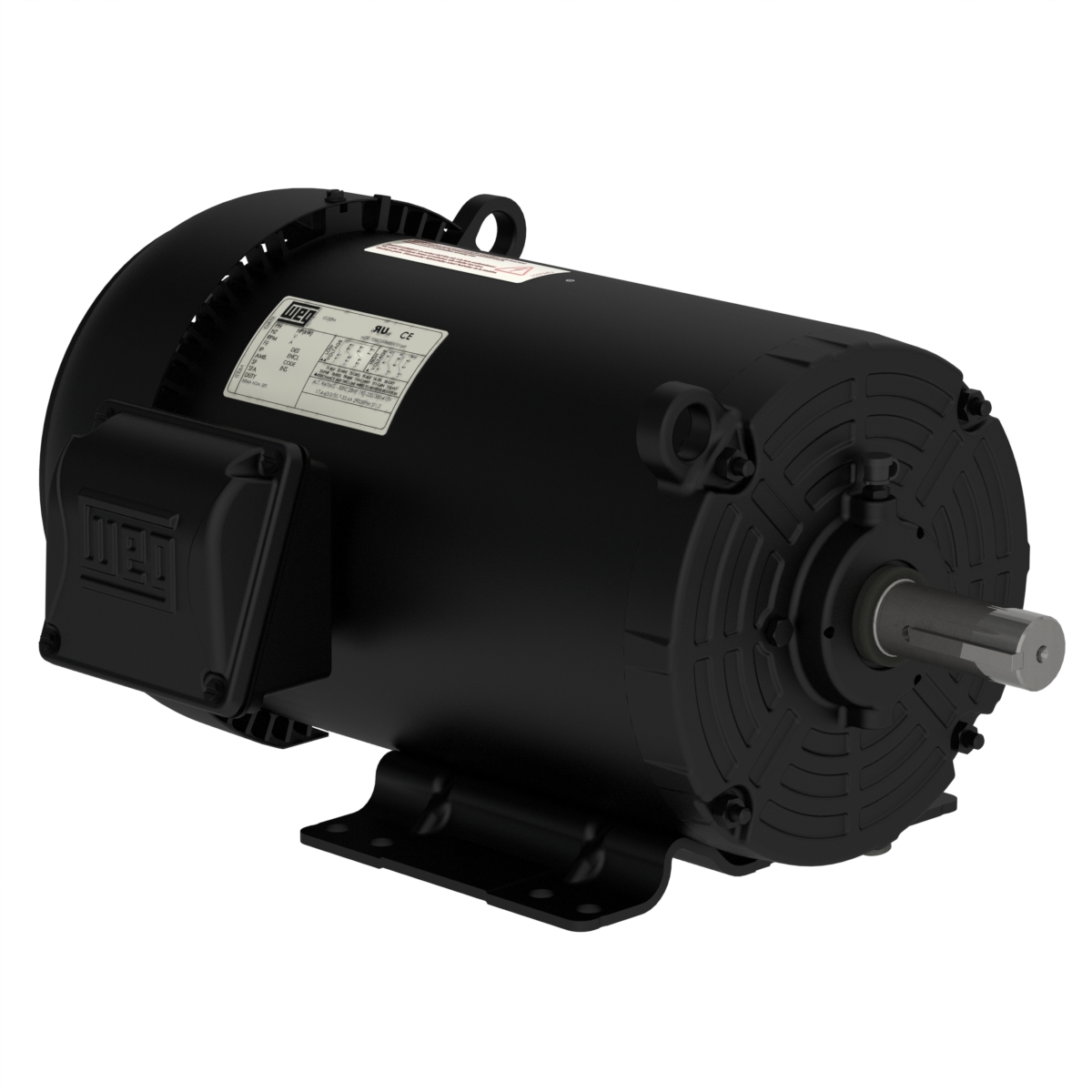

00536ET3E184T-SRT WEG 5HP Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00536ET3E184T-SRT

00536ET3E184T-SRT WEG 5HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00536ET3E184T-SRT

Selected accessories will also be added to cart
$720.90 / Each
Quantity:
IC411 - TEFC, IP55, 182T/184T Frame, 208-230/460VAC 3 Phase 50/60Hz, 13185154, Rolled Steel NEMA Premium Efficiency, Foot Mount, 1-1/8" Keyed Shaft

Electric Motors

Frame182/4T
Output5 HP (3.7 kW)
Number of Poles2
Frequency60 Hz
Rated speed3490 rpm
Slip3.06 %
Rated voltage208-230/460 V
Rated current13.0-11.8/5.90 A
L. R. Amperes107-96.8/48.4 A
LRC8.2x(Code J)
No load current0.000-4.60/2.30 A
Rated torque7.42 ft.lb
Locked rotor torque220 %
Breakdown torque350 %
Locked rotor time39s (cold) 22s (hot)
DesignB
Insulation ClassF
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?72.7 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
87.5  88.5  88.5

Power factor

50%75%100%
0.76  0.85  0.89

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.118"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
Painting

Grounding LugsSingle
Fan Cover materialRolled Steel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout

Bearing details

 Drive EndNon Drive End
Bearing type6206 ZZ  6205 ZZ
SealingV'Ring V'Ring
Lubrication interval- -
Lubricant amount- -
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
129 lb 202 lb
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
5HP
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
182T
Frame
184T
