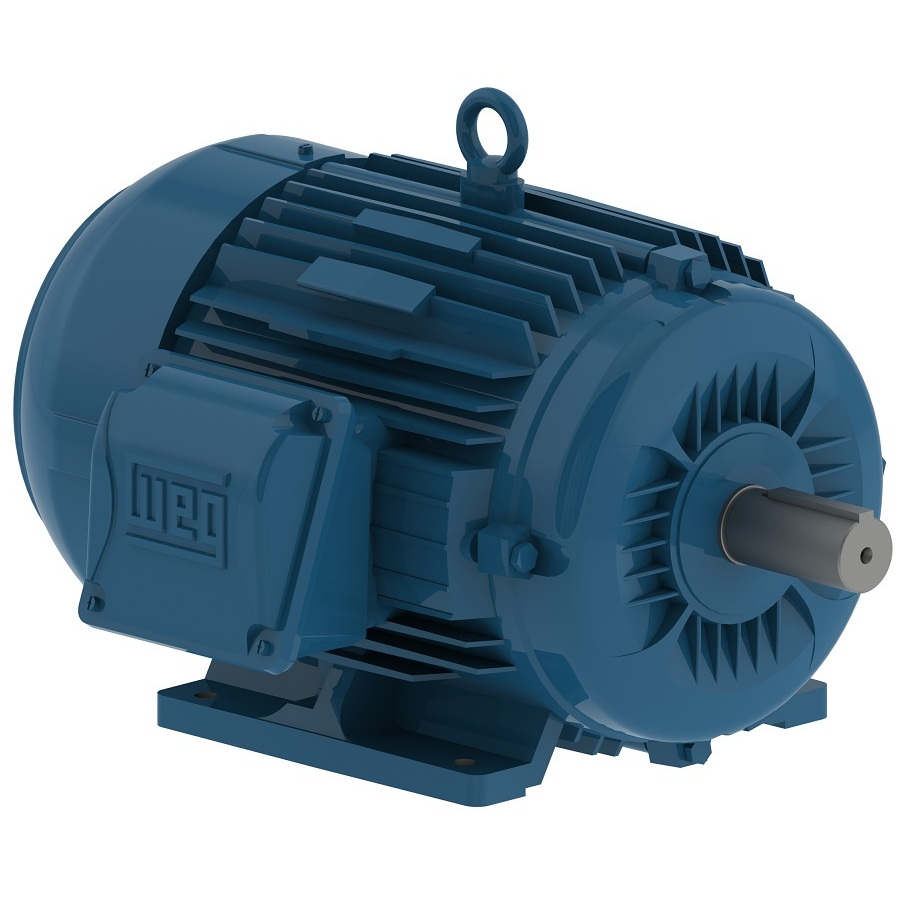

Motor/Control Division

Frame	182/4T
Output	5 HP (3.7 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3485 rpm
Slip	3.19 %
Rated voltage	208-230/460 V
Rated current	13.1-11.8/5.90 A
L. R. Amperes	99.3-89.7/44.8 A
LRC	7.6x(Code J)
No load current	3.45-4.00/2.00 A
Rated torque	7.43 ft.lb
Locked rotor torque	229 %
Breakdown torque	350 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	0.2233 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	69.0 dB(A)
Approx. weight?	100 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	88.5	88.5

Power factor

50%	75%	100%
0.76	0.85	0.89

Frame	182/4T
Output	4 HP (3 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2890 rpm
Slip	3.67 %
Rated voltage	380 V
Rated current	5.79 A
L. R. Amperes	42.8 A
LRC	7.4x(Code H)
No load current	2.00 A
Rated torque	7.17 ft.lb
Locked rotor torque	229 %
Breakdown torque	320 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	0.2233 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	69.0 dB(A)
Approx. weight?	100 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.3	87.7	87.5

Power factor

50%	75%	100%
0.74	0.85	0.90

Frame	182/4T
Output	4 HP (3 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2900 rpm
Slip	3.33 %
Rated voltage	400 V
Rated current	5.57 A
L. R. Amperes	45.1 A
LRC	8.1x(Code J)
No load current	2.15 A
Rated torque	7.15 ft.lb
Locked rotor torque	270 %
Breakdown torque	370 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	0.2233 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	69.0 dB(A)
Approx. weight?	100 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.3	88.2	88.3

Power factor

50%	75%	100%
0.71	0.83	0.88

Frame	182/4T
Output	4 HP (3 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2910 rpm
Slip	3.00 %
Rated voltage	415 V
Rated current	5.43 A
L. R. Amperes	48.3 A
LRC	8.9x(Code K)
No load current	2.25 A
Rated torque	7.12 ft.lb
Locked rotor torque	300 %
Breakdown torque	400 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	0.2233 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	69.0 dB(A)
Approx. weight?	100 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.1	88.2	88.3

Power factor

50%	75%	100%
0.68	0.81	0.87

Frame	182/4T
Output	5 HP (3.7 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2850 rpm
Slip	5.00 %
Rated voltage	380 V
Rated current	7.14 A
L. R. Amperes	42.1 A
LRC	5.9x(Code F)
No load current	2.00 A
Rated torque	9.09 ft.lb
Locked rotor torque	180 %
Breakdown torque	250 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	0.2233 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	69.0 dB(A)
Approx. weight?	100 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	87.5	86.5

Power factor

50%	75%	100%
0.81	0.88	0.91

Frame	182/4T
Output	5 HP (3.7 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2870 rpm
Slip	4.33 %
Rated voltage	400 V
Rated current	6.78 A
L. R. Amperes	44.7 A
LRC	6.6x(Code G)
No load current	2.15 A
Rated torque	9.03 ft.lb
Locked rotor torque	210 %
Breakdown torque	290 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	0.2233 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	69.0 dB(A)
Approx. weight?	100 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.5	87.5

Power factor

50%	75%	100%
0.78	0.87	0.90

Frame	182/4T
Output	5 HP (3.7 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2880 rpm
Slip	4.00 %
Rated voltage	415 V
Rated current	6.61 A
L. R. Amperes	47.6 A
LRC	7.2x(Code H)
No load current	2.25 A
Rated torque	8.99 ft.lb
Locked rotor torque	240 %
Breakdown torque	320 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	0.2233 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	69.0 dB(A)
Approx. weight?	100 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.5	87.5

Power factor

50%	75%	100%
0.76	0.85	0.89

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
