/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Rolled Steel, ODP/C-Face, Foot Mount, AEGIS Ring/00536OT3E182TC-SG WEG 5HP General Purpose Electric Motor, 3600RPM

Product ID: 00536OT3E182TC-SG

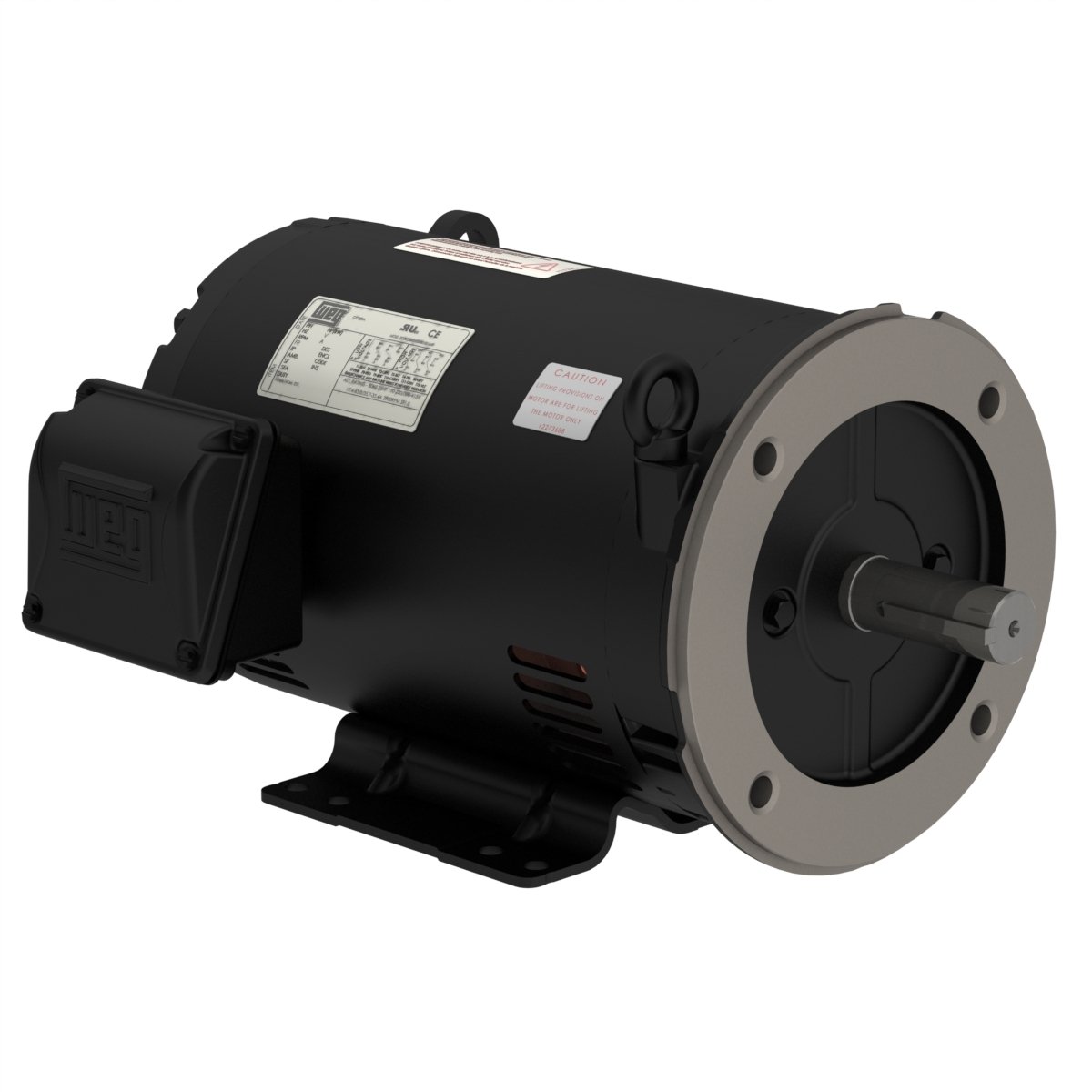

00536OT3E182TC-SG WEG 5HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00536OT3E182TC-SG

Selected accessories will also be added to cart

$764.51 / Each

Quantity:

IC01 - ODP, 182TC/184TC Frame, 208-230/460VAC 3 Phase 50/60Hz, 13163400, Rolled Steel NEMA Premium Efficiency, Foot Mount, AEGIS Shaft Grounding Ring, C-Face, 1-1/8" Keyed Shaft

Electric Motors

Frame	182/4TC
Output	5 HP (3.7 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3510 rpm
Slip	2.50 %
Rated voltage	208-230/460 V
Rated current	13.5-12.2/6.10 A
L. R. Amperes	103-92.7/46.4 A
LRC	7.6x(Code J)
No load current	4.44-5.15/2.58 A
Rated torque	7.38 ft.lb
Locked rotor torque	190 %
Breakdown torque	300 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.1386 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	65.0 dB(A)
Approx. weight?	58.7 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	86.5	86.5

Power factor

50%	75%	100%
0.73	0.83	0.88

Frame	182/4TC
Output	5 HP (3.7 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2885 rpm
Slip	3.83 %
Rated voltage	190/380 V
Rated current	14.7/7.37 A
L. R. Amperes	85.5/42.7 A
LRC	5.8x(Code G)
No load current	5.05/2.53 A
Rated torque	8.98 ft.lb
Locked rotor torque	150 %
Breakdown torque	220 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.1386 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	63.0 dB(A)
Approx. weight?	58.7 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	86.0	83.8

Power factor

50%	75%	100%
0.79	0.88	0.91

Frame	182/4TC
Output	5 HP (3.7 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2905 rpm
Slip	3.17 %
Rated voltage	220/415 V
Rated current	13.0/6.87 A
L. R. Amperes	89.4/47.4 A
LRC	6.9x(Code H)
No load current	5.90/3.13 A
Rated torque	8.92 ft.lb
Locked rotor torque	180 %
Breakdown torque	270 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.1386 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	63.0 dB(A)
Approx. weight?	58.7 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.4	86.2	85.2

Power factor

50%	75%	100%
0.71	0.83	0.88

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
