/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Super Premium Efficiency/00536EG3E184T-W22 WEG 5HP Electric Motor, 3600RPM

Product ID: 00536EG3E184T-W22

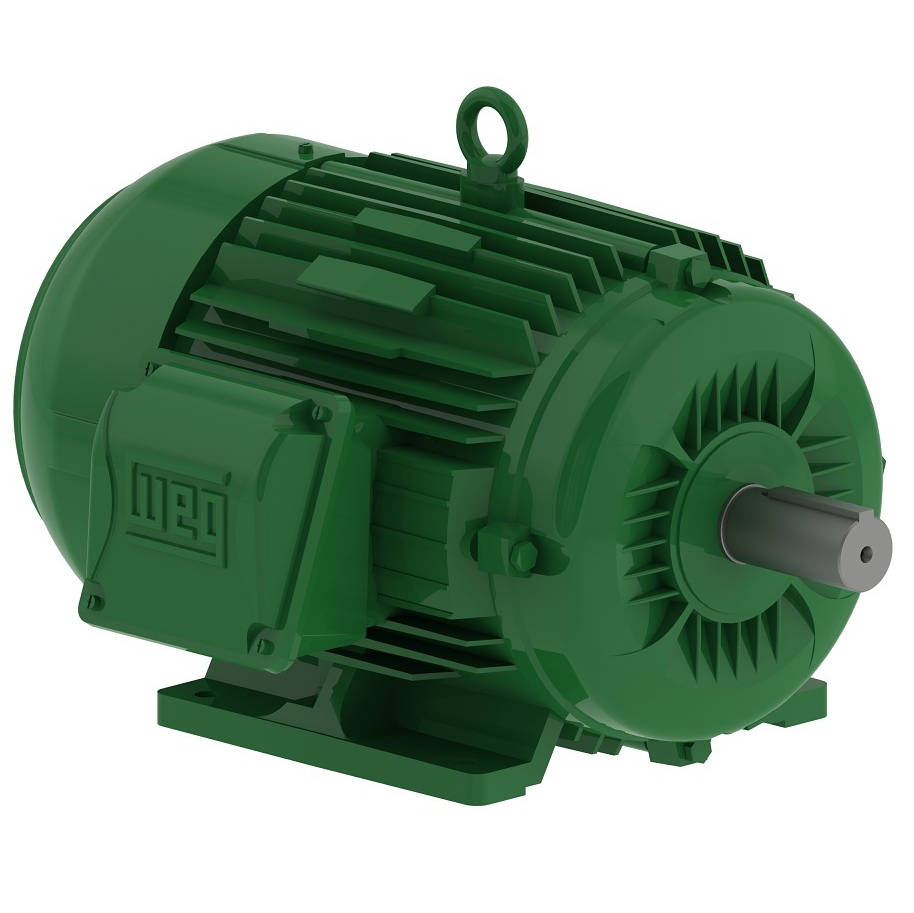

00536EG3E184T-W22 WEG 5HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00536EG3E184T-W22

Selected accessories will also be added to cart

$854.40 / Each

Quantity:

IC411 - TEFC, IP55, 182T/184T Frame, 208-230/460/380VAC 60Hz 3 Phase, 11792016, Super Premium Efficiency, Cast Iron Frame, Foot Mounted, 1-1/8" Keyed Shaft

Electric Motors

Frame	182/4T
Output	5 HP (3.7 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3505 rpm
Slip	2.64 %
Rated voltage	230/460 V
Rated current	12.0/5.99 A
L. R. Amperes	98.2/49.1 A
LRC	8.2x(Code J)
No load current	4.80/2.40 A
Rated torque	7.49 ft.lb
Locked rotor torque	240 %
Breakdown torque	350 %
Locked rotor time	54s (cold) 30s (hot)

Moment of inertia (J)	0.2233 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	66.0 dB(A)
Approx. weight?	104 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.5	90.2

Power factor

50%	75%	100%
0.73	0.83	0.86

Frame	182/4T
Output	5 HP (3.7 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2885 rpm
Slip	3.83 %
Rated voltage	380 V
Rated current	7.06 A
L. R. Amperes	50.8 A
LRC	7.2x(Code H)
No load current	2.30 A
Rated torque	9.10 ft.lb
Locked rotor torque	210 %
Breakdown torque	310 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.2233 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	104 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.5	88.5

Power factor

50%	75%	100%
0.78	0.86	0.90

Frame	182/4T
Output	5 HP (3.7 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2890 rpm
Slip	3.67 %
Rated voltage	400 V
Rated current	6.70 A
L. R. Amperes	52.3 A
LRC	7.8x(Code J)
No load current	2.50 A
Rated torque	9.09 ft.lb
Locked rotor torque	240 %
Breakdown torque	350 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.2233 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	104 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.5	89.5

Power factor

50%	75%	100%
0.75	0.84	0.89

Frame	182/4T
Output	5 HP (3.7 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2905 rpm
Slip	3.17 %
Rated voltage	415 V
Rated current	6.54 A
L. R. Amperes	54.3 A
LRC	8.3x(Code J)
No load current	2.60 A
Rated torque	9.04 ft.lb
Locked rotor torque	260 %
Breakdown torque	370 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.2233 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	104 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.5	89.5

Power factor

50%	75%	100%
0.72	0.83	0.88

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 6002 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	9
