/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/General Purpose, TEFC, W22/00536ES1B184T-W22 WEG 5HP Electric Motor, 3600RPM
Click Image to Expand

Product ID: 00536ES1B184T-W22

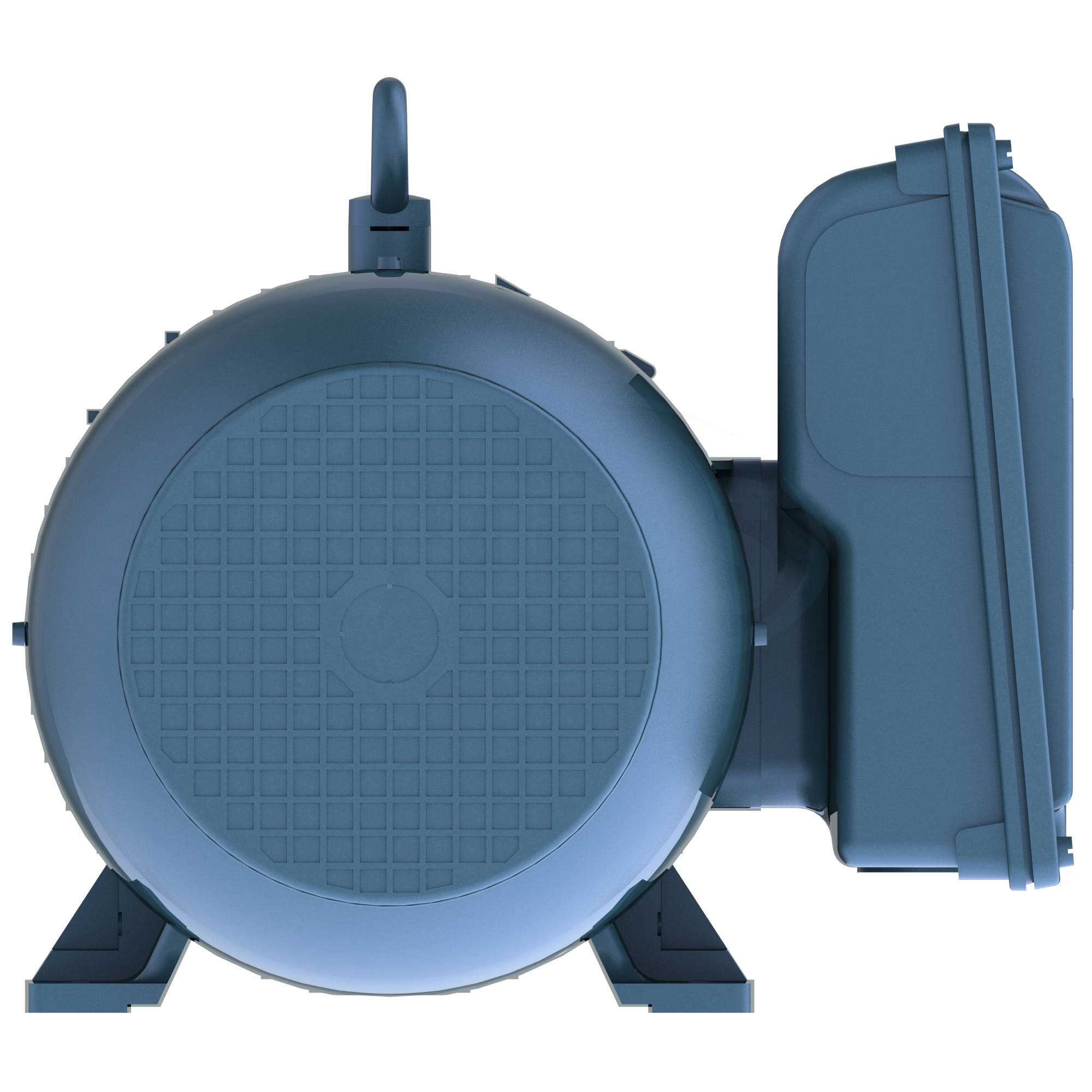

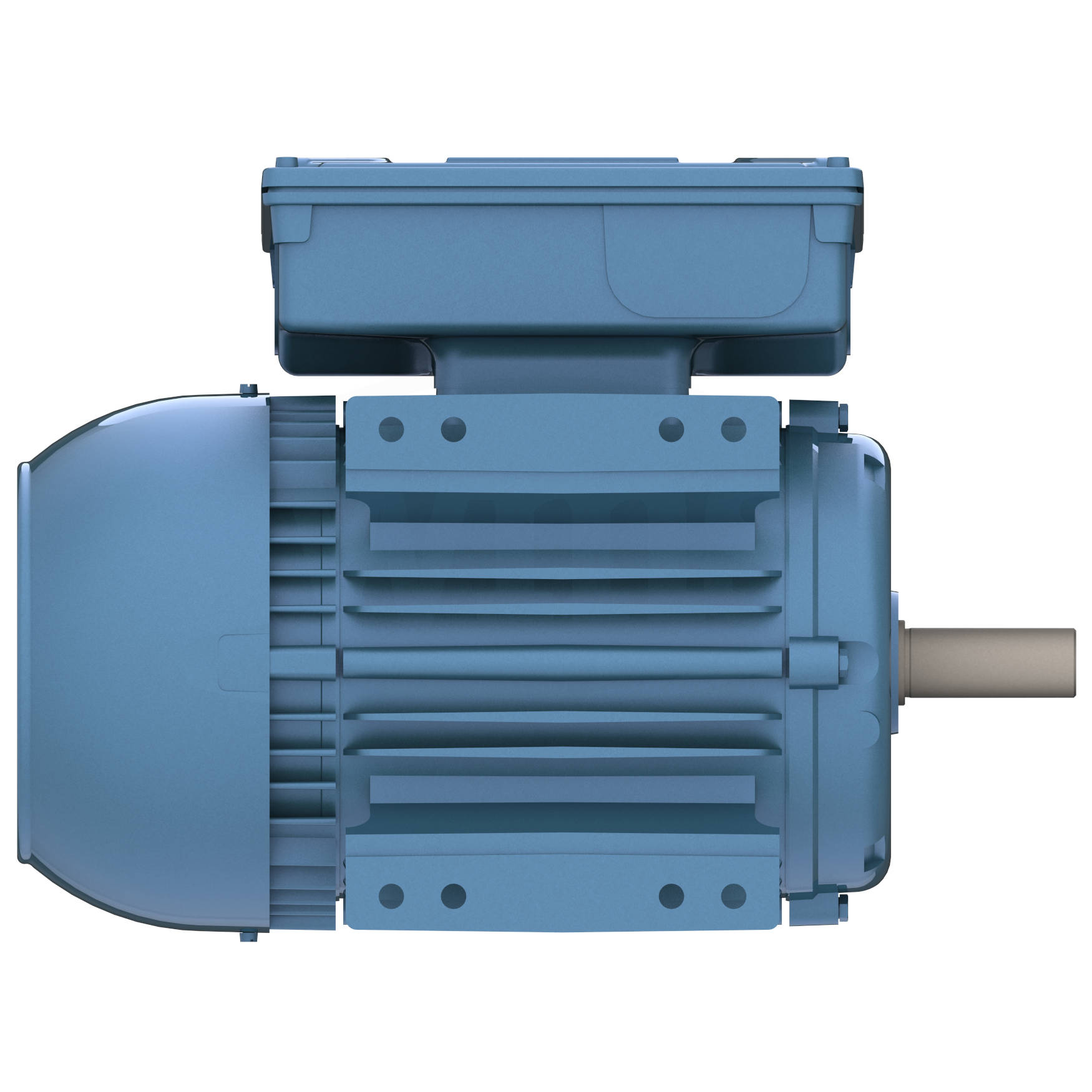

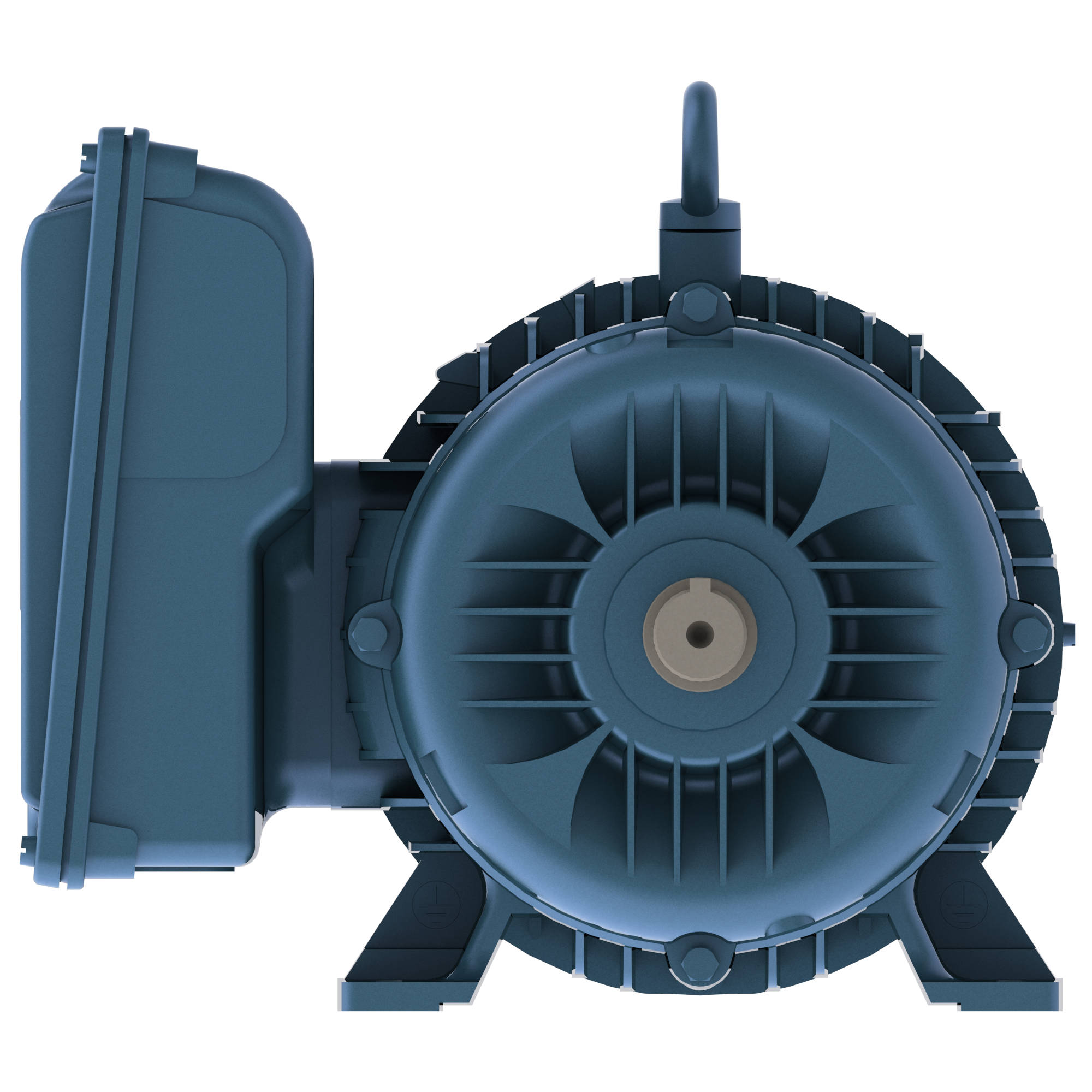

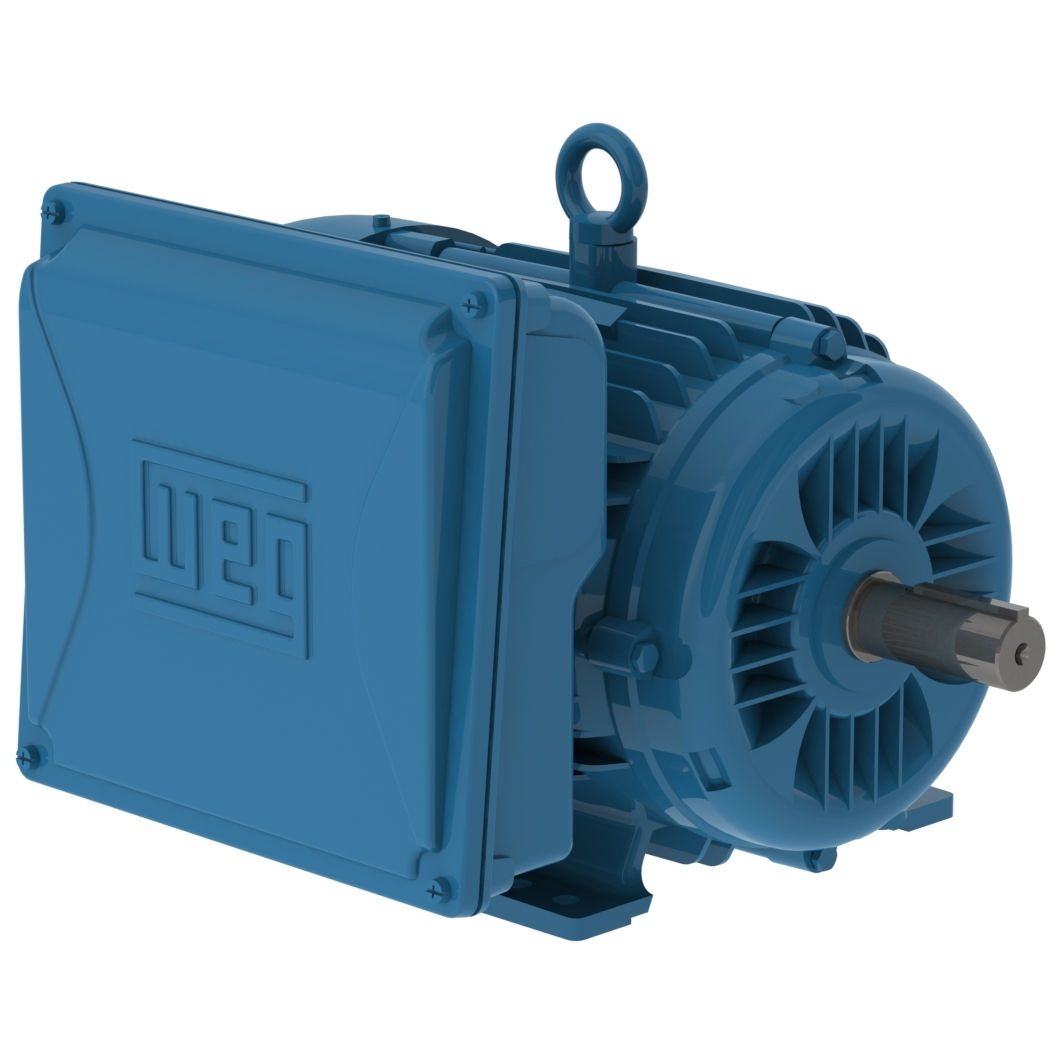

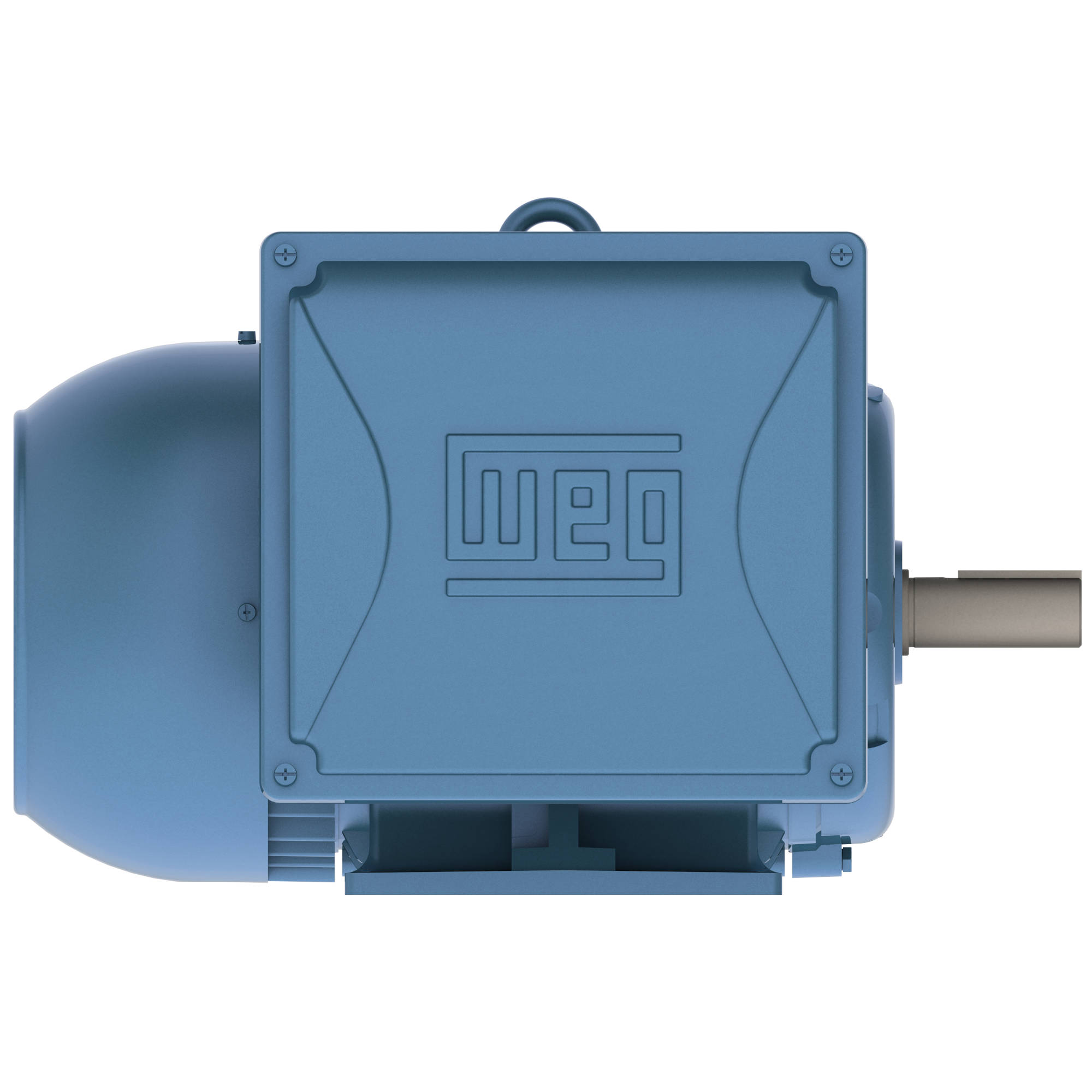

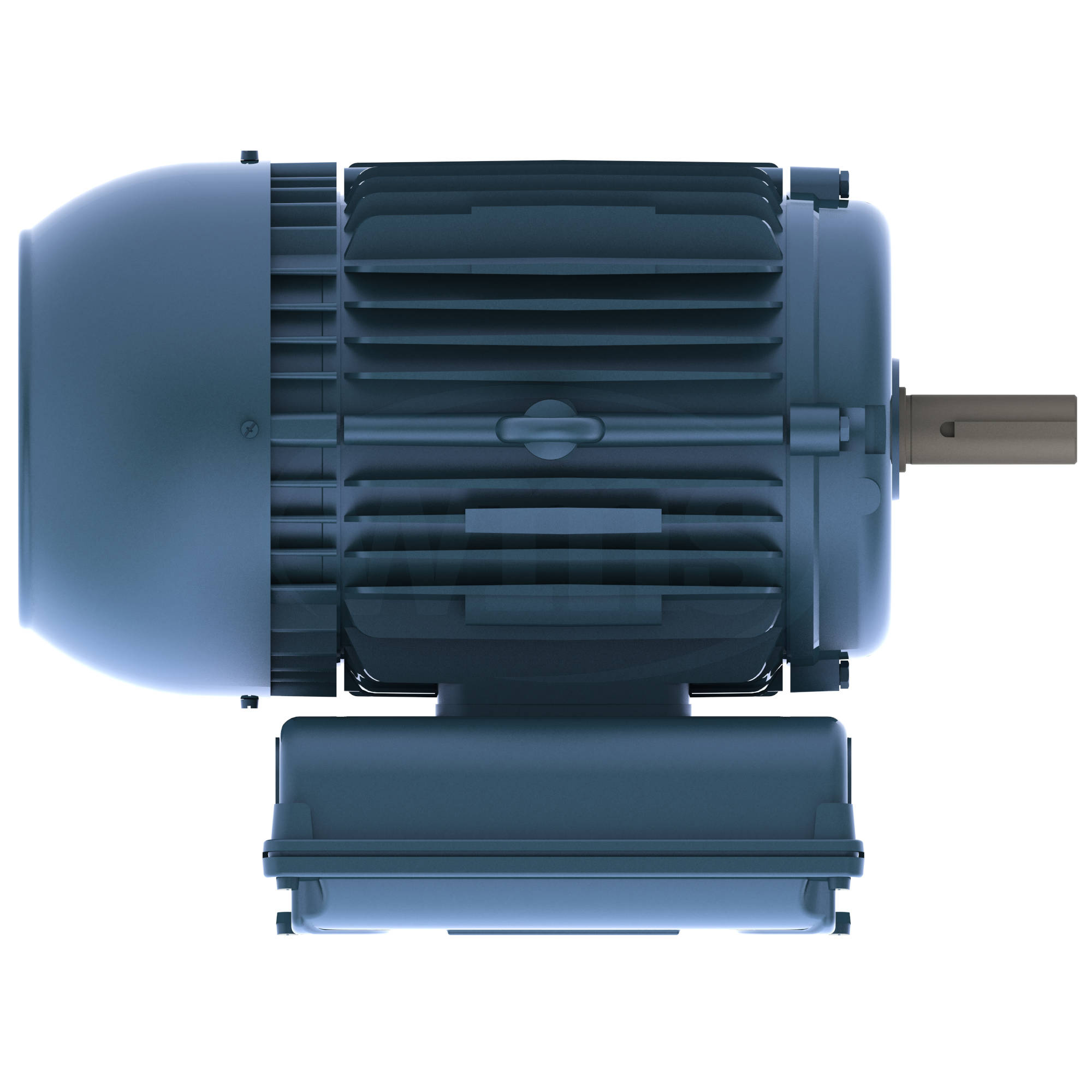

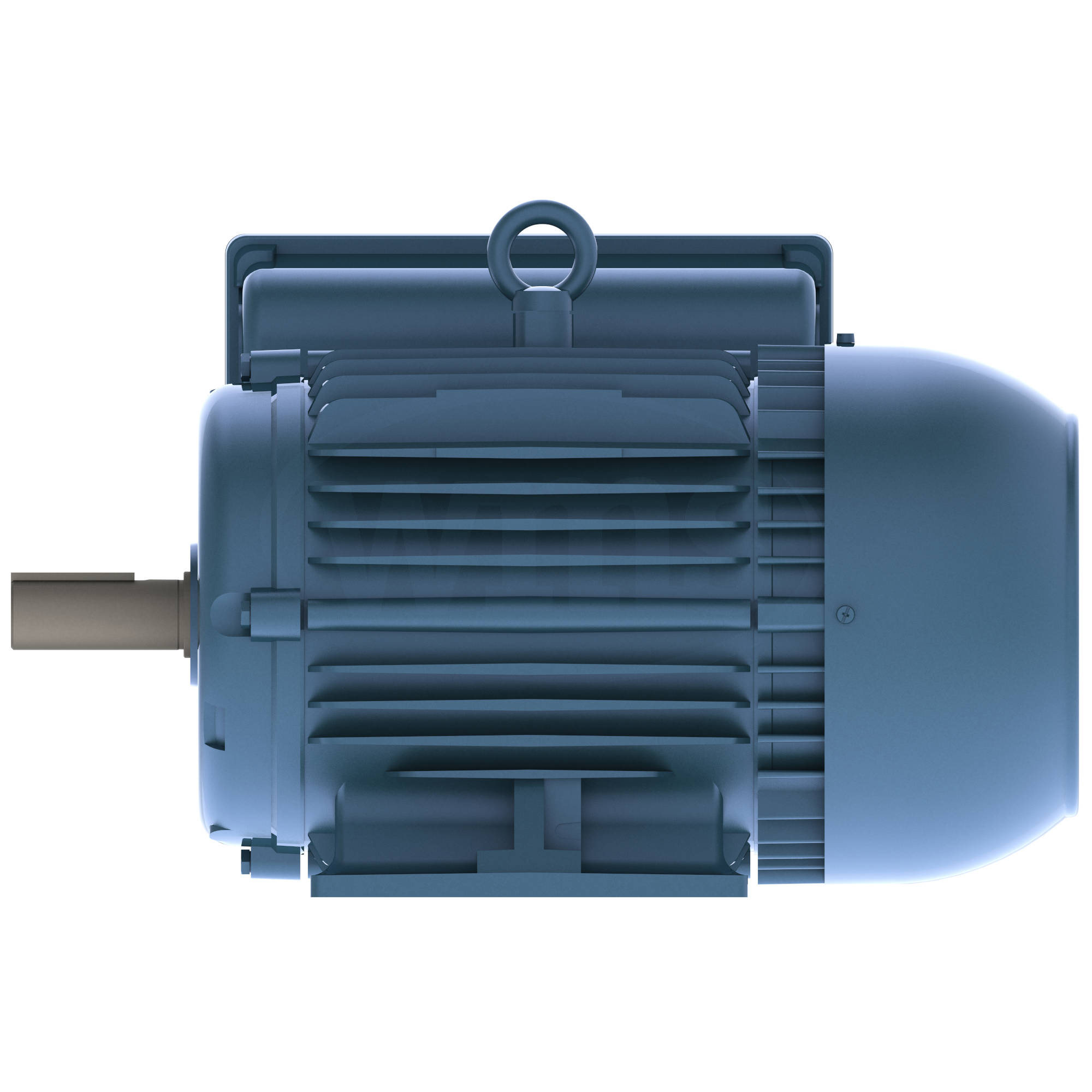

00536ES1B184T-W22 WEG 5HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00536ES1B184T-W22

Selected accessories will also be added to cart
$925.60 / Each
Quantity:
IC411 - TEFC, IP55, 182T/184T Frame, 115/208-230VAC 60Hz Single Phase, 14165571, Foot Mount, Cast Iron Frame, 1-1/8" Keyed Shaft

Electric Motors

Frame182/4T
Output5 HP (3.7 kW)
Number of Poles2
Frequency60 Hz
Rated speed3515 rpm
Slip2.36 %
Rated voltage115/208-230 V
Rated current41.1/22.1-20.8 A
L. R. Amperes358/192-181 A
LRC8.7x(Code K)
No load current15.0/0.000-7.50 A
Rated torque7.47 ft.lb
Locked rotor torque320 %
Breakdown torque320 %
Locked rotor time10s (cold) 6s (hot)
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Approx. weight³103 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
78.082.584.0

Power factor

50%75%100%
0.780.870.89

About this Product

V-Ring Seal



V-Ring Seal to keep liquids and dust out of the motor.





Capacitor



Available with a run capacitor, run and start capacitor or start capacitor.



        Cast Iron Frame



          • FC-200 (EN GJL 200) cast iron frames meet impact
            level IK08 (5J) ensuring superior mechanical strength
            for the most demanding applications.
          • Solid motor feet provide excellent rigidity, allowing
            easier alignment and installation.



        Cooling System



          • The cooling system (fan, non drive endshield and fan cover)
            is designed to minimize noise level and improve thermal efficiency.
          • Steel plate fan cover provides high mechanical strength,
            corrosion resistance and extended lifetime.



        Centrifugal Switch



          • The starting system of W22 single phase motors
            was completely redesigned to improve functionality,
            thus increasing system reliability and lifespan.



Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
TEFC
Horsepower
5HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
Frame
182T
Frame
184T
