Product ID: 00536ES1E184T-W22

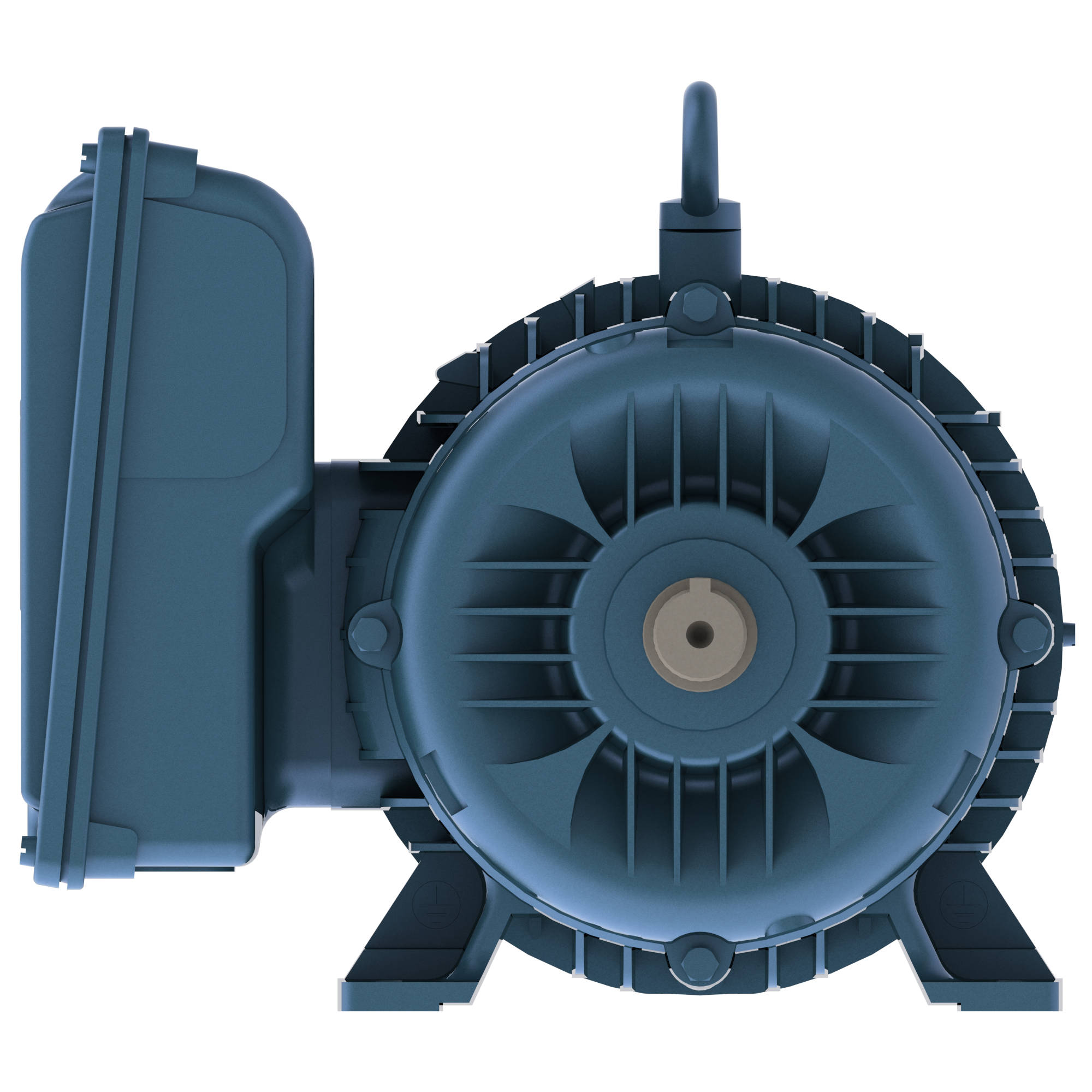

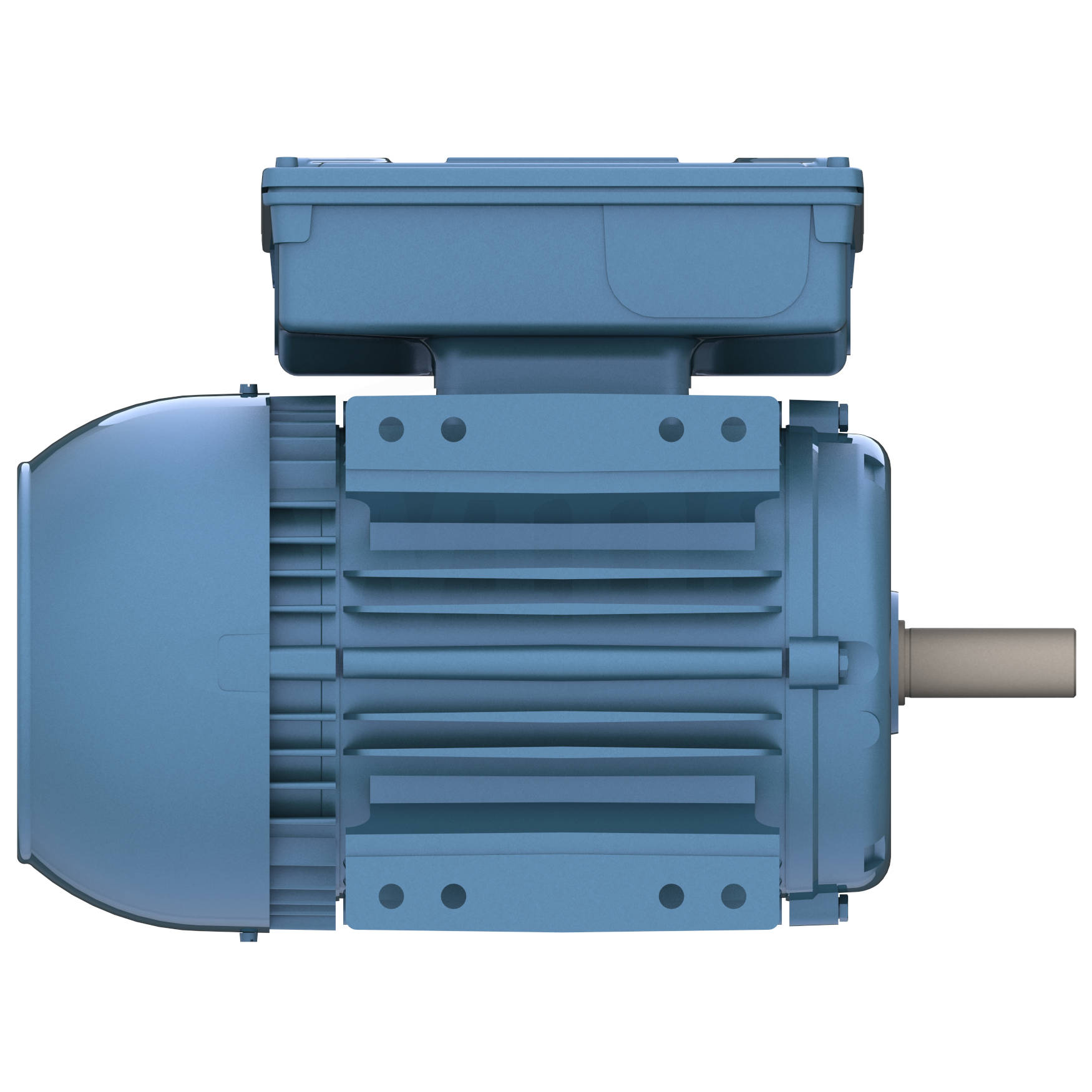

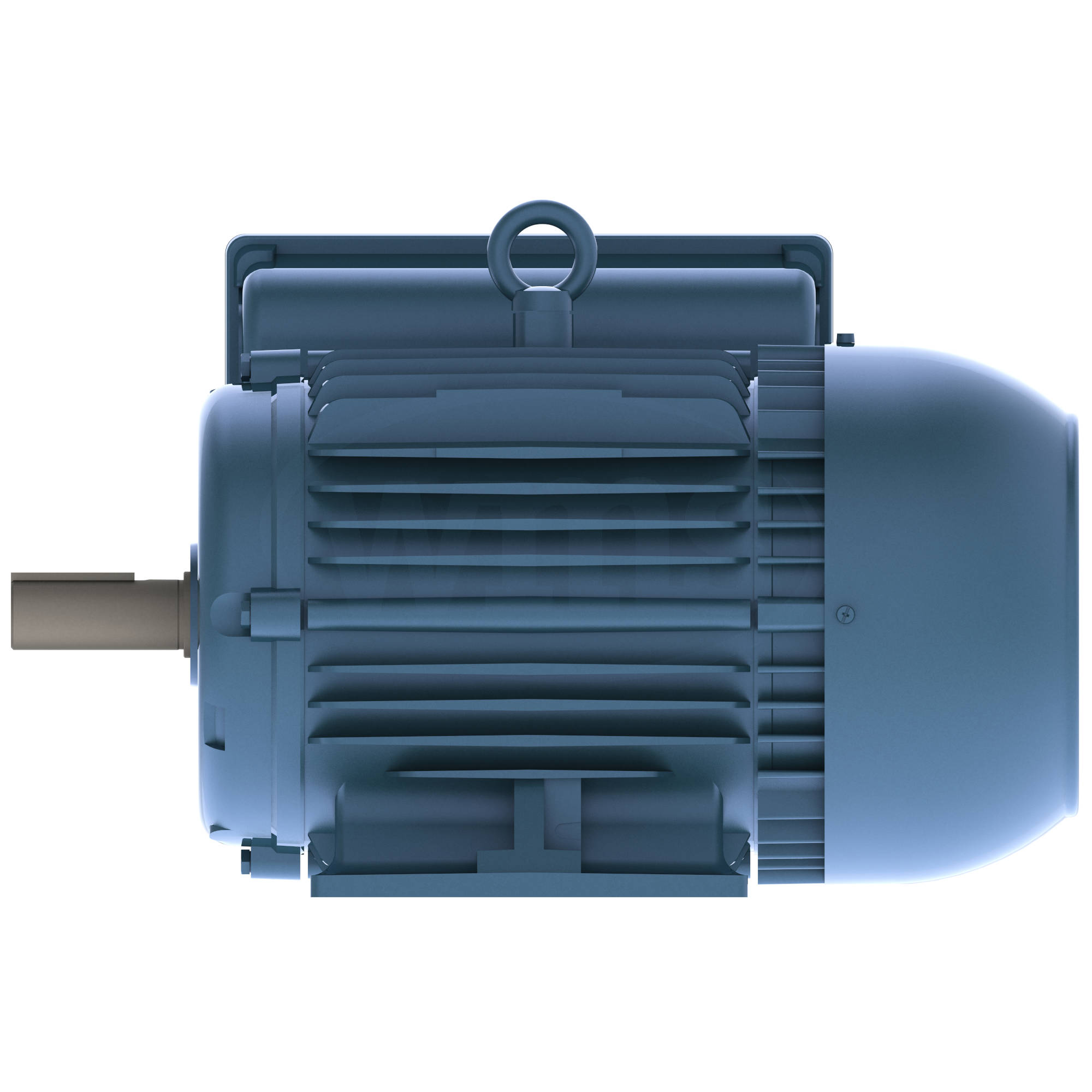

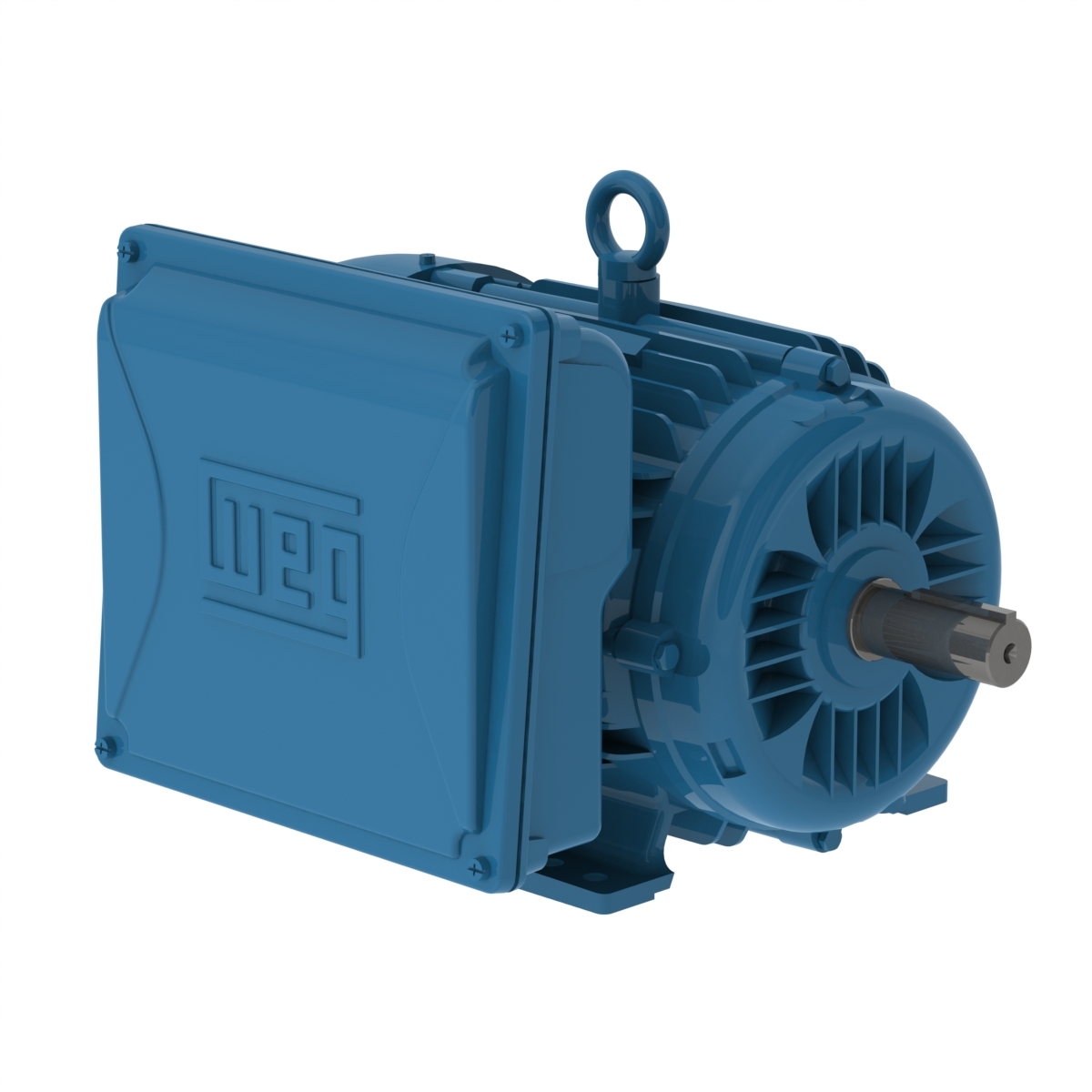

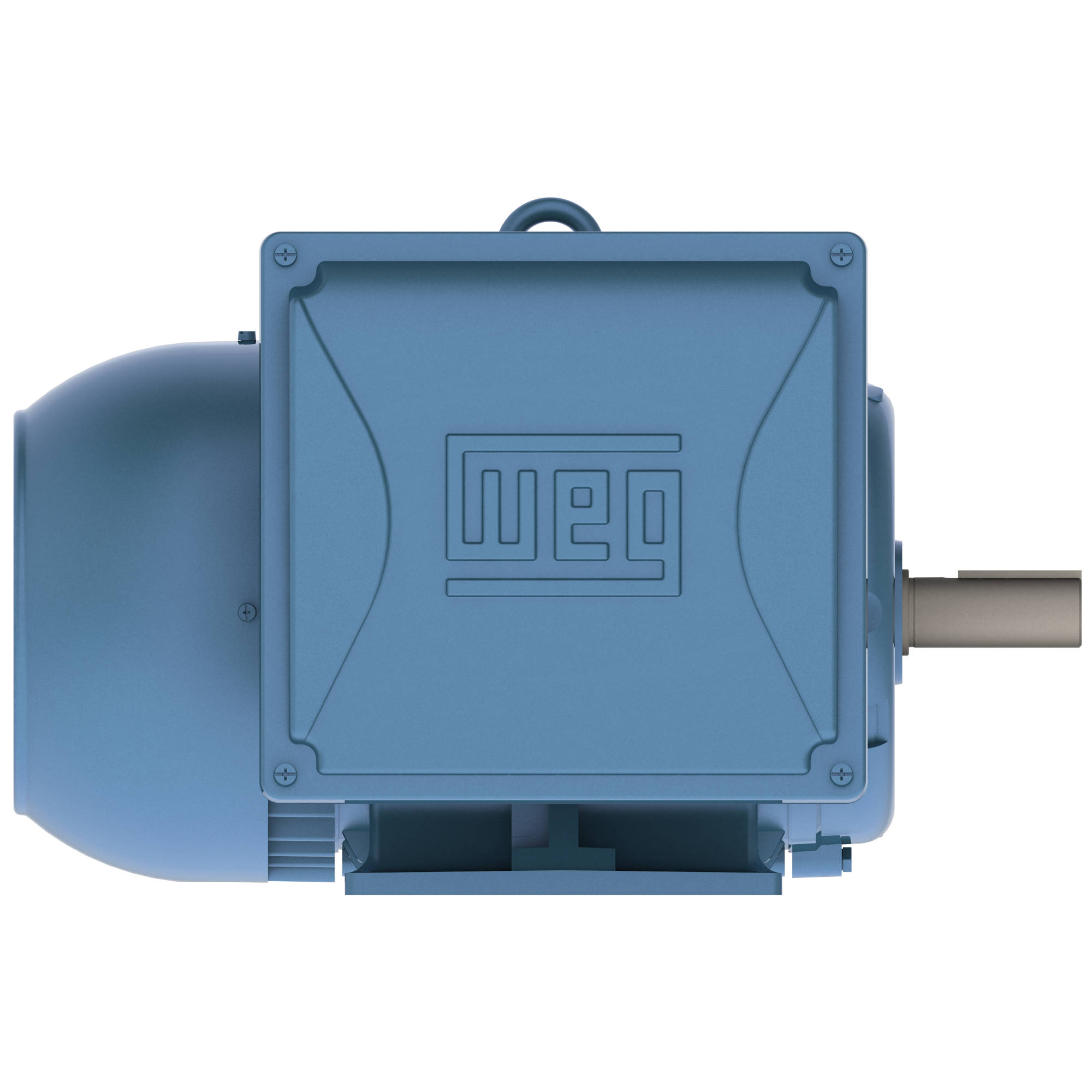

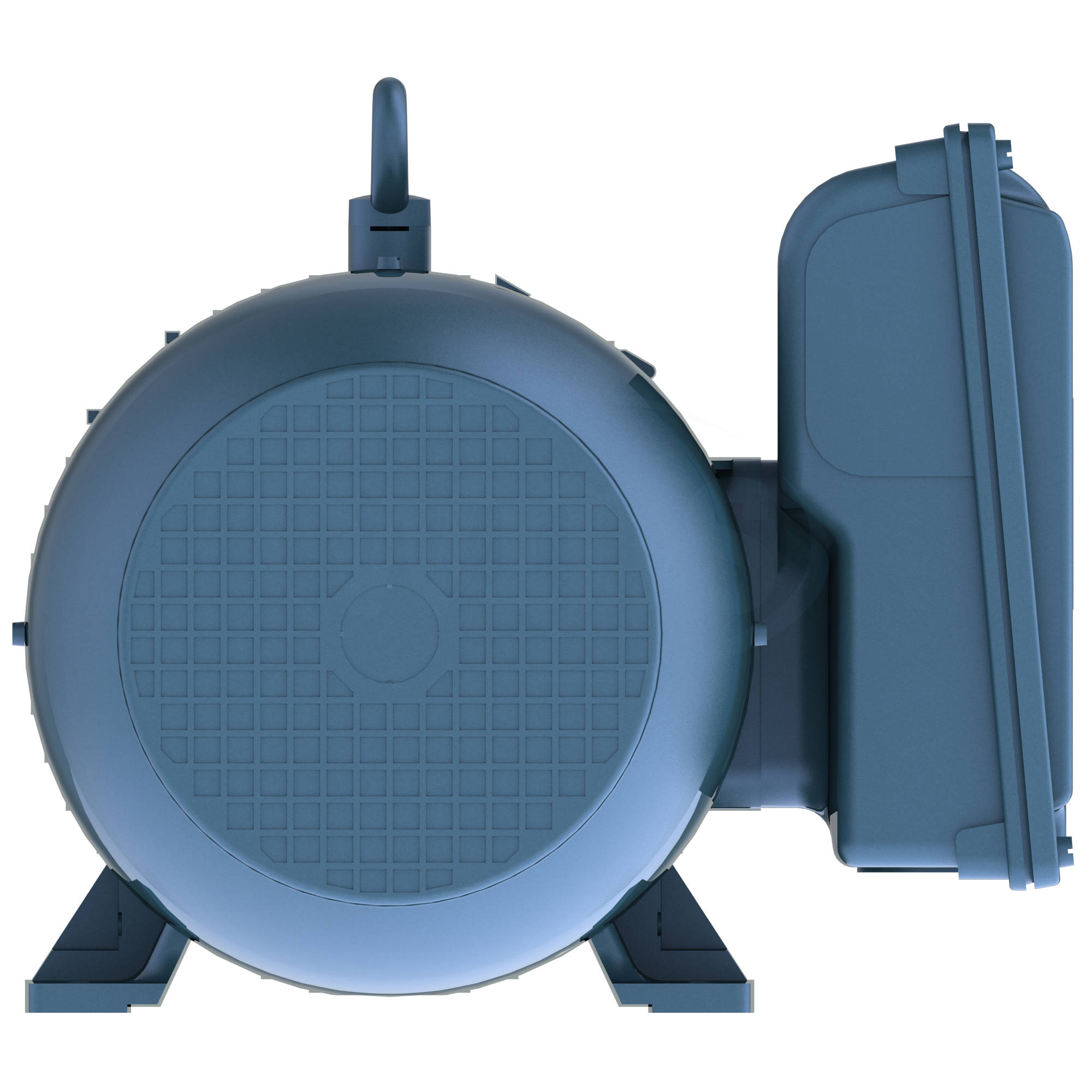

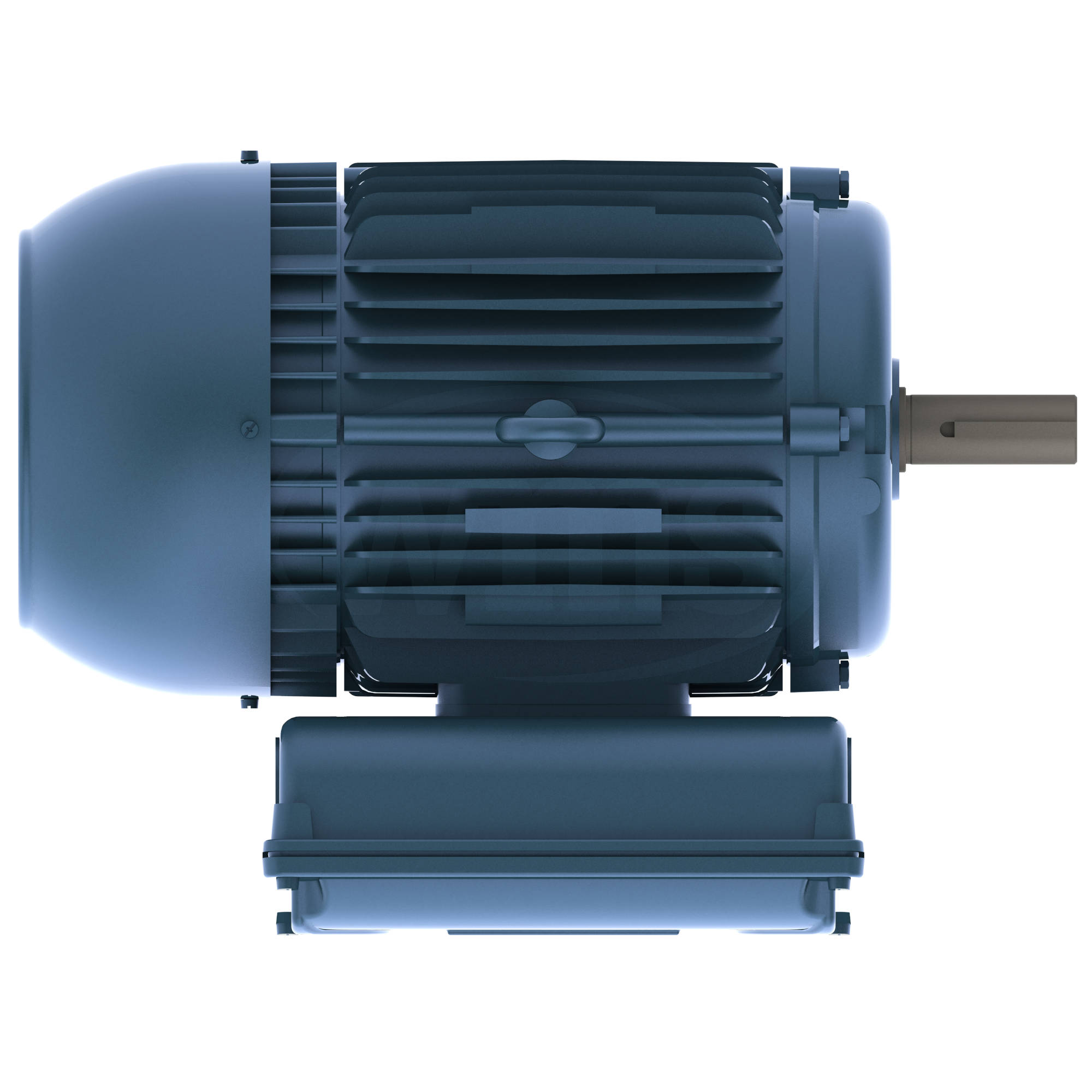

00536ES1E184T-W22 WEG 5HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00536ES1E184T-W22

Selected accessories will also be added to cart

$923.82 / Each

Quantity:

IC411 - TEFC, IP55, 182T/184T Frame, 208-230/460VAC 60Hz Single Phase, 14145114, Standard Efficiency, Foot Mounted, Cast Iron Frame, 1-1/8" Keyed Shaft

Electric Motors

Frame	182/4T
Output	5 HP (3.7 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3515 rpm
Slip	2.36 %
Rated voltage	208-230/460 V
Rated current	20.5-19.0/9.50 A
L. R. Amperes	146-135/67.5 A
LRC	7.1x(Code G)
No load current	3.36-3.90/1.95 A
Rated torque	7.47 ft.lb
Locked rotor torque	280 %
Breakdown torque	250 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	0.2164 sq.ft.lb
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	72.0 dB(A)
Approx. weightÂ³	106 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
80.0	84.0	85.5

Power factor

50%	75%	100%
0.96	0.99	0.99

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
