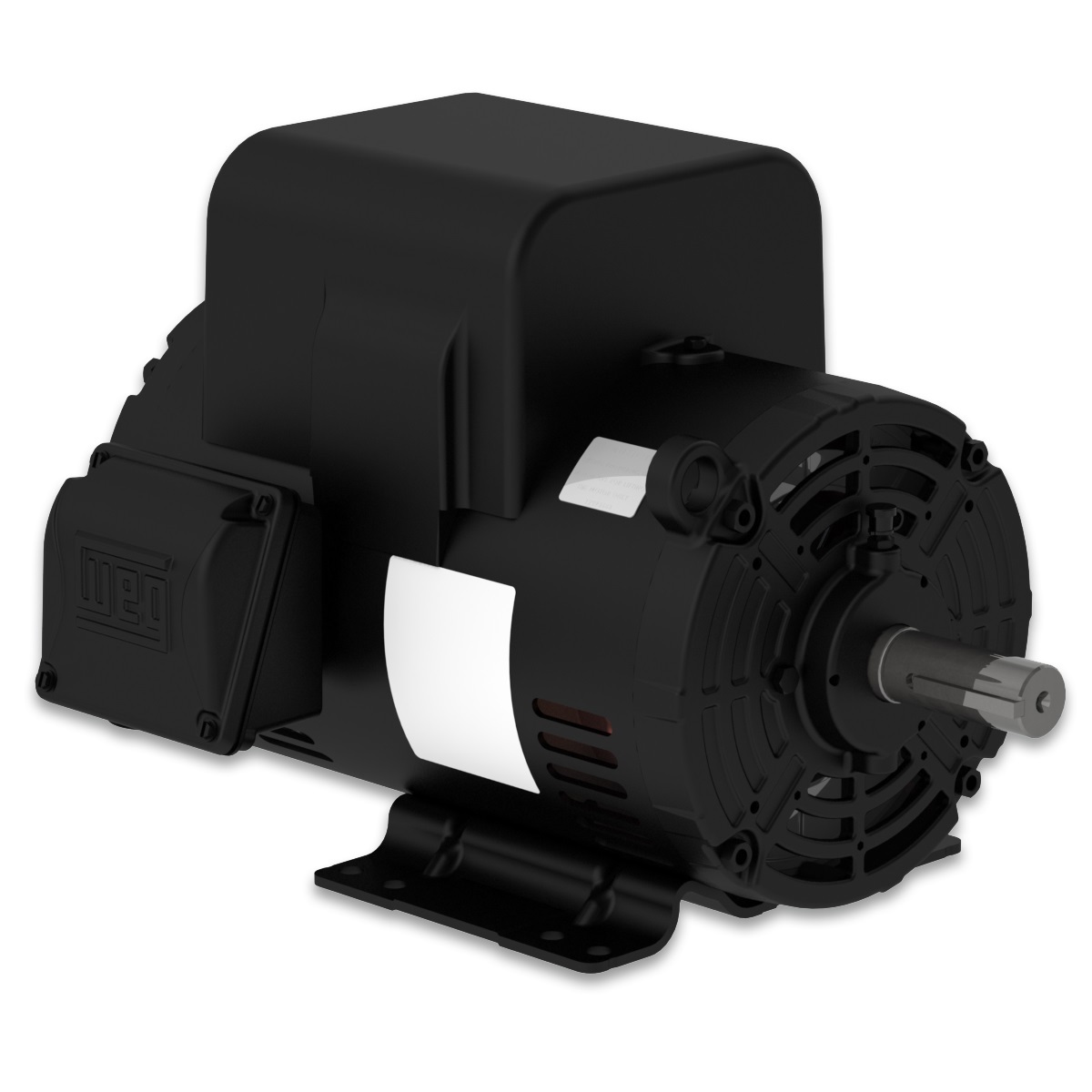

00536OS1D184T-S WEG 5HP General Purpose Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00536OS1D184T-S

00536OS1D184T-S WEG 5HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00536OS1D184T-S

Selected accessories will also be added to cart
$767.18 / Each
Quantity:
IC01 - ODP, 182T/184T Frame, 230VAC 60Hz Single Phase, 15098627, Rolled Steel, Foot Mounted

Electric Motors

Frame182/4T
Output5 HP (3.7 kW)
Number of Poles2
Frequency60 Hz
Rated speed3495 rpm
Slip2.92 %
Rated voltage230 V
Rated current19.3 A
L. R. Amperes133 A
LRC6.9x(Code G)
No load current2.80 A
Rated torque7.51 ft.lb
Locked rotor torque290 %
Breakdown torque250 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.1559 sq.ft.lb
DesignL
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation¹Both (CW and CCW)
Approx. weight³74.0 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
78.783.284.0

Power factor

50%75%100%
0.980.990.99

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
5HP
Frame
182T
Frame
184T
