/Products/Electric Motors/3 Phase/WEG/Air Handling/Dual Speed/00589EP3PCT184VF1-W22 WEG 5/1.25HP Cooling Tower Electric Motor, 1800/900RPM
00589EP3PCT184VF1-W22 WEG 5/1.25HP Cooling Tower Electric Motor, 1800/900RPM

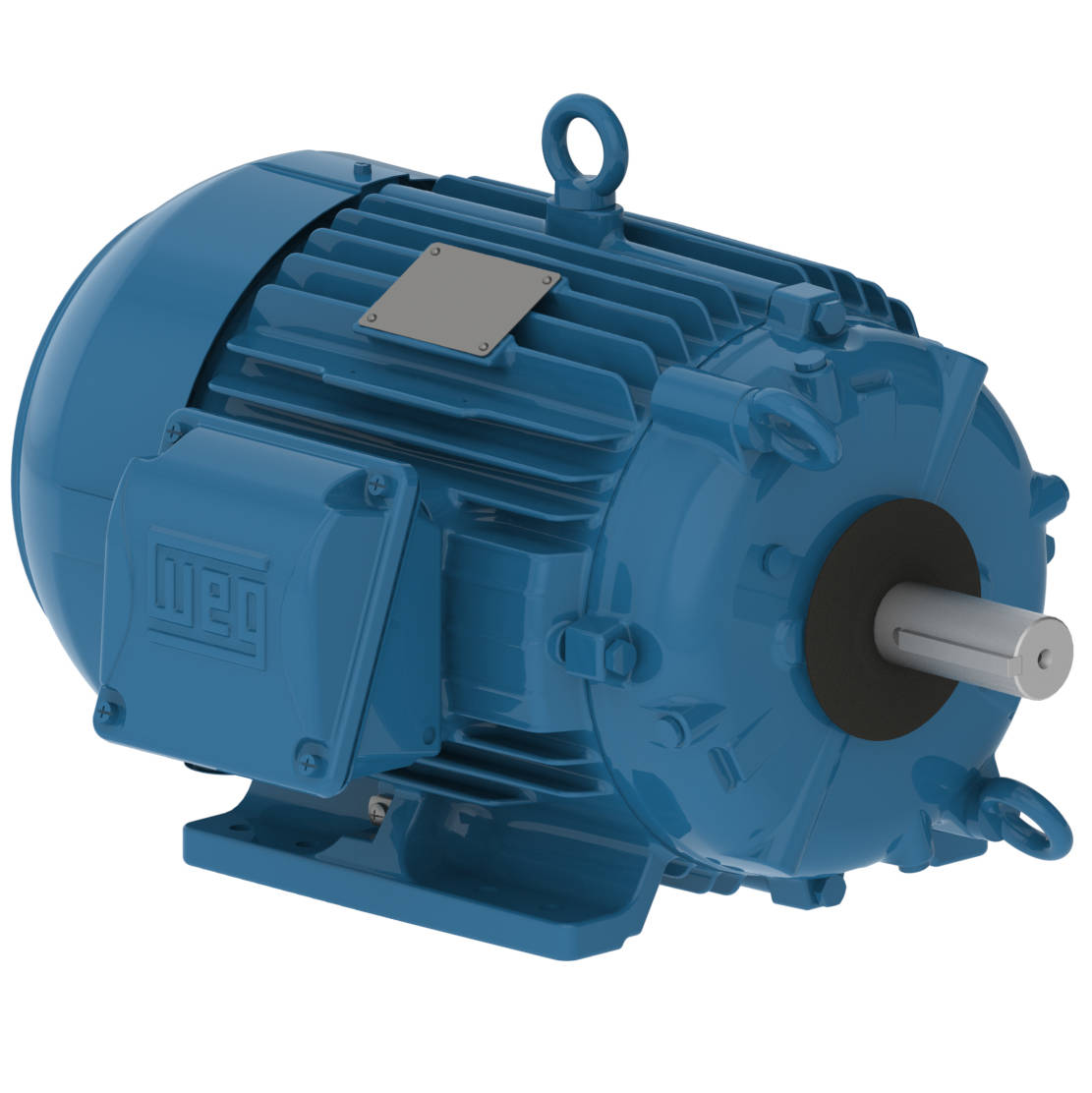

Enlarge Photo

Product ID: 00589EP3PCT184VF1-W2

00589EP3PCT184VF1-W22 WEG 5/1.25HP Cooling Tower Electric Motor, 1800/900RPM

MFG: WEG Electric Corporation
MFG Part Number: 00589EP3PCT184VF1-W22

Selected accessories will also be added to cart
$1,103.25 / Each
Quantity:
IC411 - TEFC, IP55, 182T/184T Frame, 200VAC 60Hz 3 Phase, 12172561, High Efficiency, Foot Mounted, Cast Iron Frame, Dual Speed, 1-1/8" Keyed Shaft

Electric Motors

Frame 182/4T
Output 5 HP (3.7 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 1750 rpm
Slip 2.78 %
Rated voltage 200 V
Rated current 15.3 A
L. R. Amperes 114 A
LRC 7.4x(Code J)
No load current 8.51 A
Rated torque 15.0 ft.lb
Locked rotor torque 200 %
Breakdown torque 300 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 0.4461 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
Approx. weight³ 2.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  86.5  87.0

Power factor

50% 75% 100%
0.58  0.72  0.80
Frame 182/4T
Output 1.25 HP (0.92 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 870 rpm
Slip 3.33 %
Rated voltage 200 V
Rated current 6.90 A
L. R. Amperes 23.5 A
LRC 3.4x(Code H)
No load current 5.52 A
Rated torque 7.54 ft.lb
Locked rotor torque 120 %
Breakdown torque 220 %
Locked rotor time 81s (cold) 45s (hot)
Moment of inertia (J) 0.4461 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 2.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
66.0  72.0  74.0

Power factor

50% 75% 100%
0.34  0.44  0.52

Features

Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap No-Without Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
