00712AT3ECT254TF1-W2 WEG 7.5 HP Cooling Tower Electric Motor, 1200 RPM

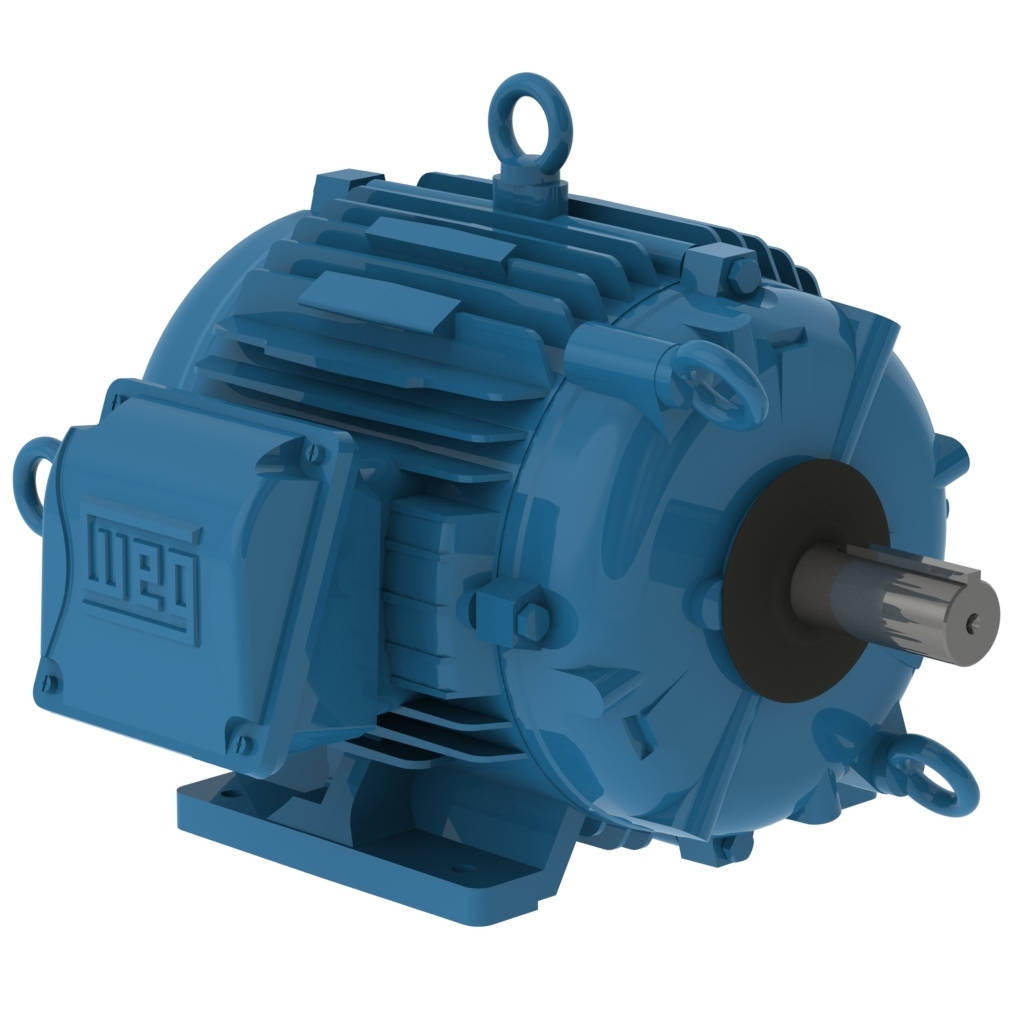

Enlarge Photo

Product ID: 00712AT3ECT254TF1-W22

00712AT3ECT254TF1-W2 WEG 7.5 HP Cooling Tower Electric Motor, 1200 RPM

MFG: WEG Electric Corporation
MFG Part Number: 00712AT3ECT254TF1-W2

Selected accessories will also be added to cart
$2,230.34 / Each
Quantity:
IC410 - TEAO, IP55, 254T Frame, 208-230/460VAC 60Hz 3 Phase, 12127831, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft

Electric Motors

Frame254T
Output7.5 HP (5.5 kW)
Number of Poles6
Frequency60 Hz
Rated speed1175 rpm
Slip2.08 %
Rated voltage208-230/460 V
Rated current21.0-19.0/9.48 A
L. R. Amperes143-129/64.5 A
LRC6.8x(Code H)
No load current7.76-9.00/4.50 A
Rated torque33.5 ft.lb
Locked rotor torque250 %
Breakdown torque300 %
Locked rotor time54s (cold) 30s (hot)
Moment of inertia (J)3.92 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC410 - TEAO
MountingF-1
Rotation?Both (CW and CCW)
Noise level?59.0 dB(A)
Approx. weight?260 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
89.5  90.2  91.0

Power factor

50%75%100%
0.63  0.74  0.80
Frame254T
Output7.5 HP (5.5 kW)
Number of Poles6
Frequency50 Hz
Rated speed970 rpm
Slip3.00 %
Rated voltage380 V
Rated current11.4 A
L. R. Amperes59.3 A
LRC5.2x(Code F)
No load current4.50 A
Rated torque40.6 ft.lb
Locked rotor torque170 %
Breakdown torque220 %
Locked rotor time48s (cold) 27s (hot)
Moment of inertia (J)3.92 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC410 - TEAO
MountingF-1
Rotation?Both (CW and CCW)
Noise level?57.0 dB(A)
Approx. weight?260 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
89.5  89.5  88.5

Power factor

50%75%100%
0.70  0.79  0.83
Frame254T
Output7.5 HP (5.5 kW)
Number of Poles6
Frequency50 Hz
Rated speed970 rpm
Slip3.00 %
Rated voltage400 V
Rated current10.8 A
L. R. Amperes62.6 A
LRC5.8x(Code G)
No load current4.75 A
Rated torque40.6 ft.lb
Locked rotor torque200 %
Breakdown torque240 %
Locked rotor time48s (cold) 27s (hot)
Moment of inertia (J)3.92 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC410 - TEAO
MountingF-1
Rotation?Both (CW and CCW)
Noise level?57.0 dB(A)
Approx. weight?260 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
89.5  89.5  89.5

Power factor

50%75%100%
0.66  0.77  0.82
Frame254T
Output7.5 HP (5.5 kW)
Number of Poles6
Frequency50 Hz
Rated speed975 rpm
Slip2.50 %
Rated voltage415 V
Rated current10.5 A
L. R. Amperes65.1 A
LRC6.2x(Code G)
No load current4.95 A
Rated torque40.4 ft.lb
Locked rotor torque220 %
Breakdown torque260 %
Locked rotor time48s (cold) 27s (hot)
Moment of inertia (J)3.92 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC410 - TEAO
MountingF-1
Rotation?Both (CW and CCW)
Noise level?57.0 dB(A)
Approx. weight?260 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
89.5  89.5  90.2

Power factor

50%75%100%
0.64  0.75  0.81

Features

Frame MaterialCast Iron
Impregnation MethodDouble impregnation polyester
Space Heater Voltage110-127/200-240 V
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202E (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingComplete (200h)
Joints SealPermatex
Fan materialWithout fan
Bearing capYes- Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector

Bearing details

 Drive EndNon Drive End
Bearing type6309 2RS C3 6209 2RS C3
SealingV'Ring V'Ring
Lubrication interval- -
Lubricant amount- -
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
374 lb 633 lb

Type
Electric Motor
Input Phase
3-Phase
Application
Cooling Tower
Enclosure
TEAO
Speed
1200RPM
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Horsepower
7.5HP
Frame
254T
