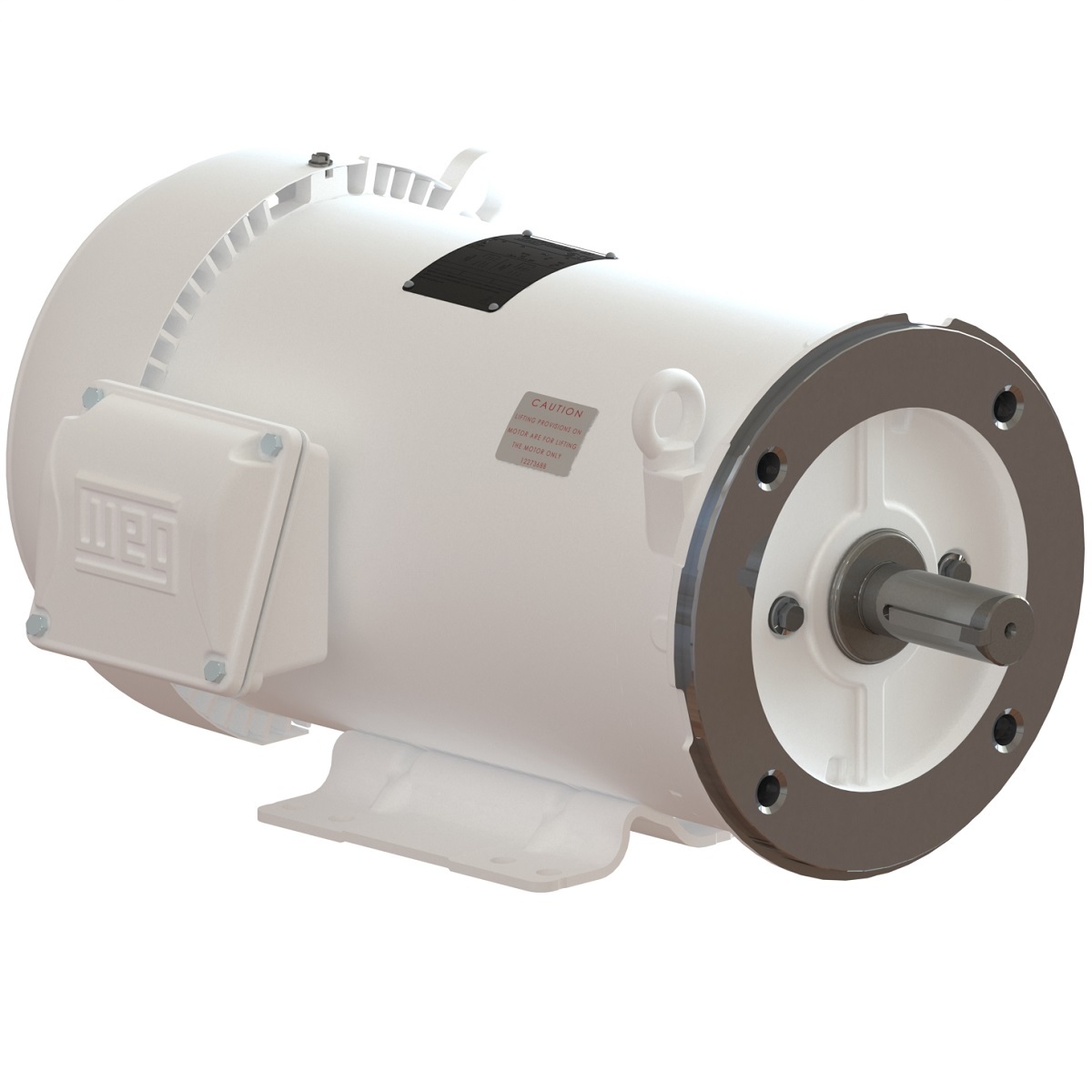

TEFC, IP56, 254TC/256TC Frame, 230/460VAC 60Hz, 190-220/380-415VAC 50Hz 3 Phase, 15228443, Foot Mounted, C-Face, NEMA Premium Efficiency, Rolled Steel Frame, 1-5/8" Keyed Stainless Steel Shaft

Accessories

Select any of the accessories below to purchase them with this inventory item:

CFW080130TGN4A1Z WEG Variable Frequency Drive, 7.5

$1,202.69 / Each

Electric Motors

Frame	254/6TC
Output	7.5 HP (5.5 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1175 rpm
Slip	2.08 %
Rated voltage	230/460 V
Rated current	20.0/9.98 A
L. R. Amperes	108/53.9 A
LRC	5.4x(Code G)
No load current	10.1/5.03 A
Rated torque	33.5 ft.lb
Locked rotor torque	200 %
Breakdown torque	229 %
Locked rotor time	75s (cold) 42s (hot)

Moment of inertia (J)	2.34 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	F-1
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	59.0 dB(A)
Approx. weightÂ³<	217 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	89.5	91.0

Power factor

50%	75%	100%
0.58	0.70	0.76

Frame	254/6TC
Output	7.5 HP (5.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	965 rpm
Slip	3.50 %
Rated voltage	190/380 V
Rated current	24.0/12.0 A
L. R. Amperes	101/50.4 A
LRC	4.2x(Code D)
No load current	9.92/4.96 A
Rated torque	40.8 ft.lb
Locked rotor torque	150 %
Breakdown torque	180 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	2.34 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	F-1
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	57.0 dB(A)
Approx. weightÂ³<	217 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.9	89.5	88.0

Power factor

50%	75%	100%
0.65	0.75	0.79

Frame	254/6TC
Output	7.5 HP (5.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	970 rpm
Slip	3.00 %
Rated voltage	220/415 V
Rated current	21.7/11.5 A
L. R. Amperes	102/54.1 A
LRC	4.7x(Code E)
No load current	10.1/5.35 A
Rated torque	40.6 ft.lb
Locked rotor torque	170 %
Breakdown torque	200 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	2.34 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	F-1
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	57.0 dB(A)
Approx. weightÂ³<	217 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.6	89.8	88.5

Power factor

50%	75%	100%
0.61	0.72	0.78

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1 1/4"
Terminal Block	Without
Shaft Material	AISI 304 Stainless Steel
Painting	04501 205E
Grounding Lugs	Superior
Fan Cover material	Steel
Tropicalized Painting	Complete (200h)
Joints Seal	Permatex
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Stainless Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
