/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/General Purpose, TEFC, W22/00718ES1E215TC-W22 WEG 7.5HP Electric Motor, 1800RPM

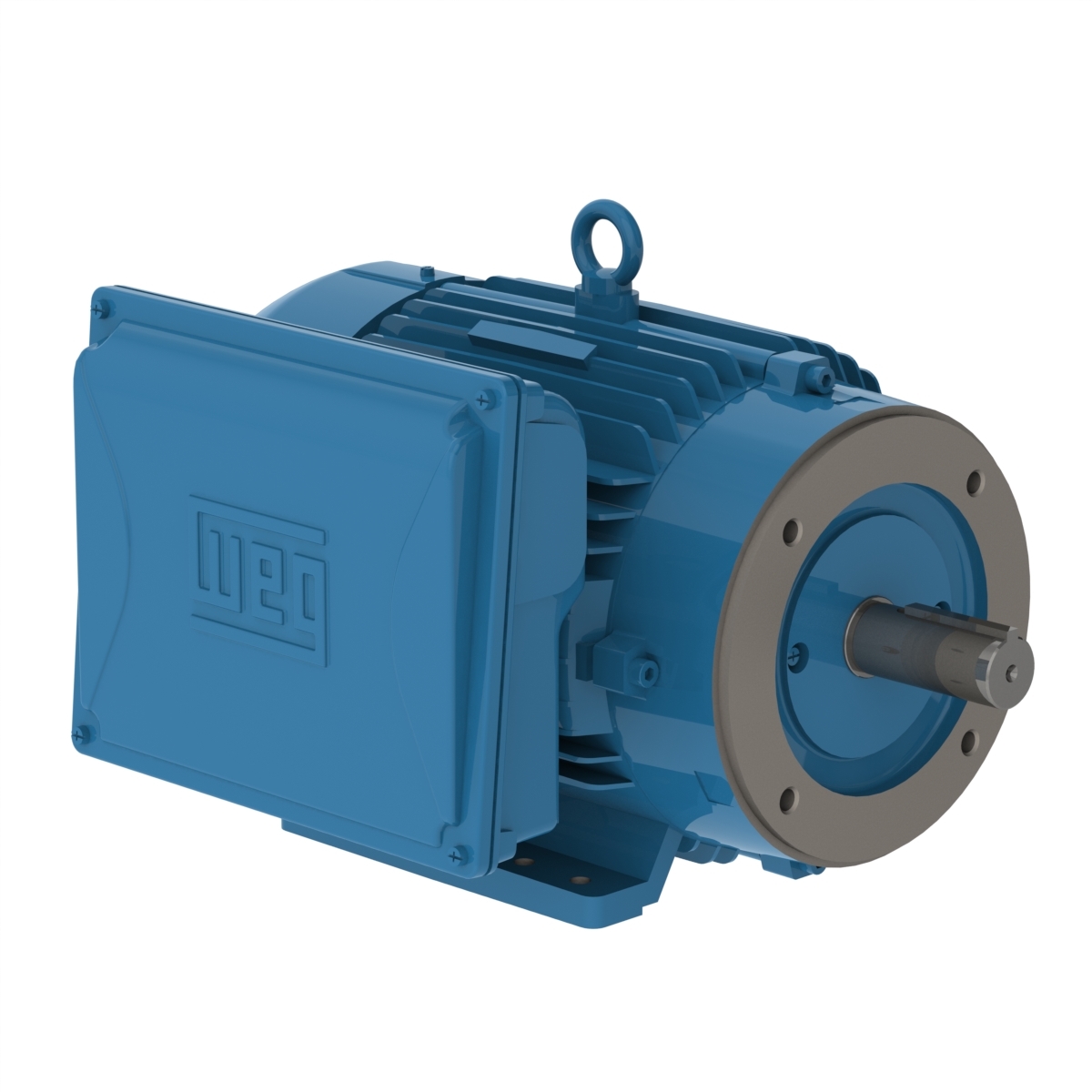

00718ES1E215TC-W22 WEG 7.5HP Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00718ES1E215TC-W22

00718ES1E215TC-W22 WEG 7.5HP Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00718ES1E215TC-W22

Selected accessories will also be added to cart
$1,254.90 / Each
Quantity:
IC411 - TEFC, IP55, 213TC/215TC Frame, 208-230/460VAC 60Hz Single Phase, 14086161, C-Face, Foot Mount, Cast Iron Frame, 1-3/8" Keyed Shaft

Electric Motors

Frame213/5TC
Output7.5 HP (5.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1750 rpm
Slip2.78 %
Rated voltage208-230/460 V
Rated current32.0-30.0/15.0 A
L. R. Amperes246-231/116 A
LRC7.7x(Code H)
No load current8.97-10.4/5.20 A
Rated torque22.5 ft.lb
Locked rotor torque320 %
Breakdown torque250 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)1.09 sq.ft.lb
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²63.0 dB(A)
Approx. weight³178 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
75.681.083.0

Power factor

50%75%100%
0.910.940.96

About this Product

V-Ring Seal



V-Ring Seal to keep liquids and dust out of the motor.





Capacitor



Available with a run capacitor, run and start capacitor or start capacitor.



        Cast Iron Frame



          • FC-200 (EN GJL 200) cast iron frames meet impact
            level IK08 (5J) ensuring superior mechanical strength
            for the most demanding applications.
          • Solid motor feet provide excellent rigidity, allowing
            easier alignment and installation.



        Cooling System



          • The cooling system (fan, non drive endshield and fan cover)
            is designed to minimize noise level and improve thermal efficiency.
          • Steel plate fan cover provides high mechanical strength,
            corrosion resistance and extended lifetime.



        Centrifugal Switch



          • The starting system of W22 single phase motors
            was completely redesigned to improve functionality,
            thus increasing system reliability and lifespan.



Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
TEFC
Horsepower
7.5HP
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
213TC
Frame
215TC
