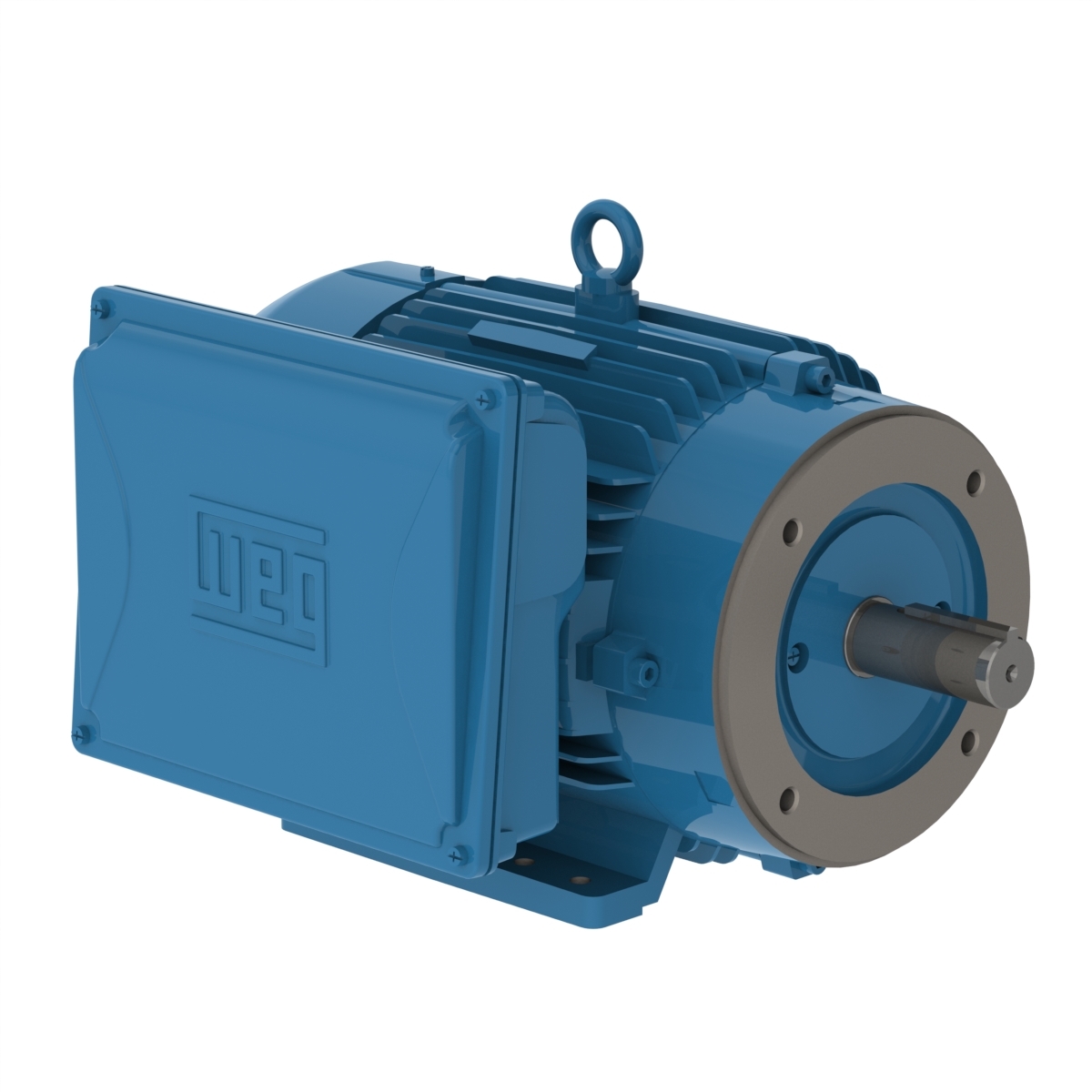

00718ES1EID215TC-W22 WEG 7.5HP Irrigation Duty Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00718ES1EID215TC-W22

00718ES1EID215TC-W22 WEG 7.5HP Irrigation Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00718ES1EID215TC-W22

Selected accessories will also be added to cart
$1,309.19 / Each
Quantity:
IC411 - TEFC, 213TC/215TC Frame, 208-230/460VAC 60Hz Single Phase, C-Face, Foot Mount, Cast Iron Frame, 14116295, 1-3/8" Keyed Shaft

Electric Motors

Frame213/5TC
Output7.5 HP (5.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1750 rpm
Slip2.78 %
Rated voltage208-230/460 V
Rated current32.0-30.0/15.0 A
L. R. Amperes246-231/116 A
LRC7.7x(Code H)
No load current7.76-9.00/4.50 A
Rated torque22.2 ft.lb
Locked rotor torque320 %
Breakdown torque250 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)1.09 sq.ft.lb
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²63.0 dB(A)
Approx. weight³179 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
75.681.083.0

Power factor

50%75%100%
0.910.940.96
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
TEFC
Horsepower
7.5HP
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
213TC
Frame
215TC
