Motor/Control Division

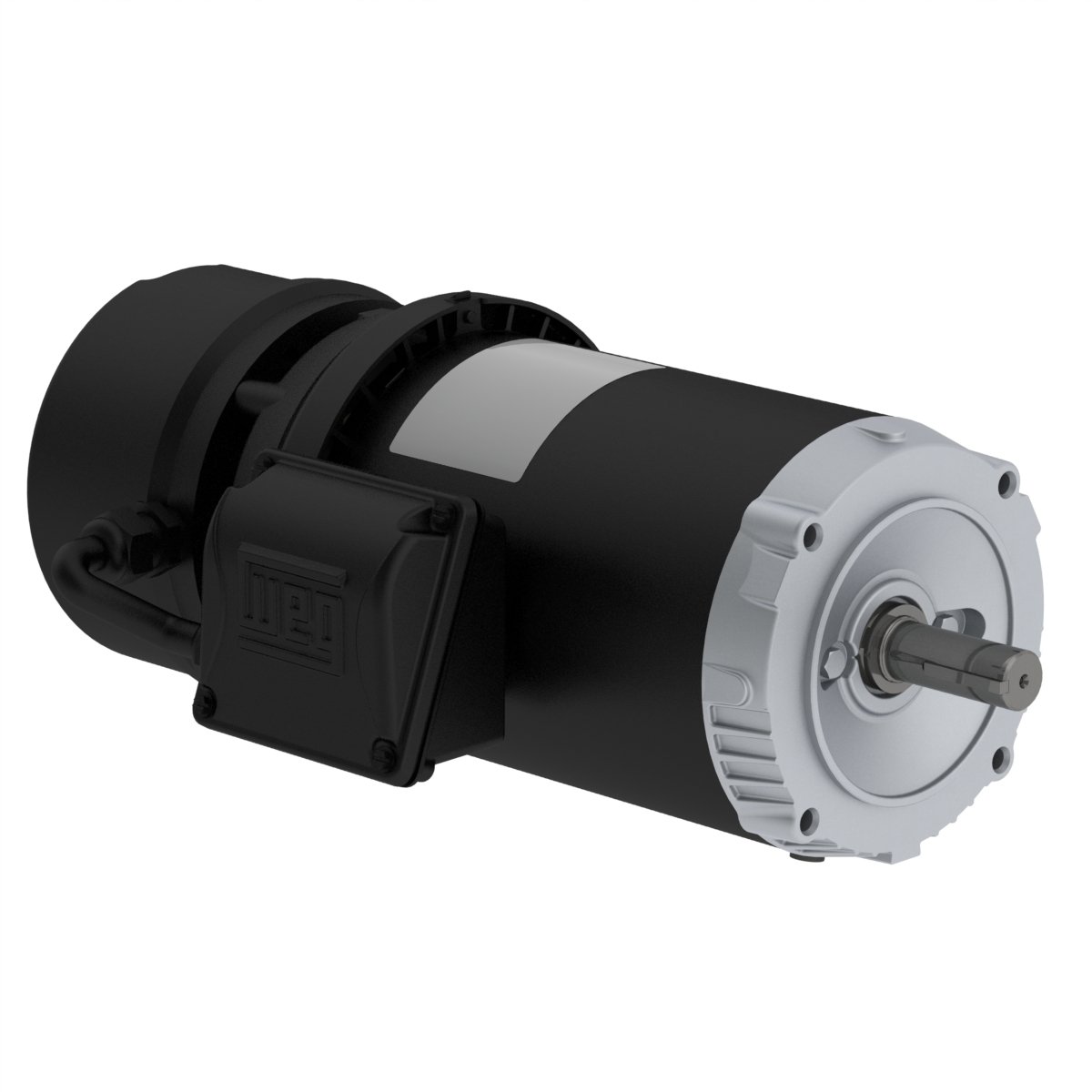

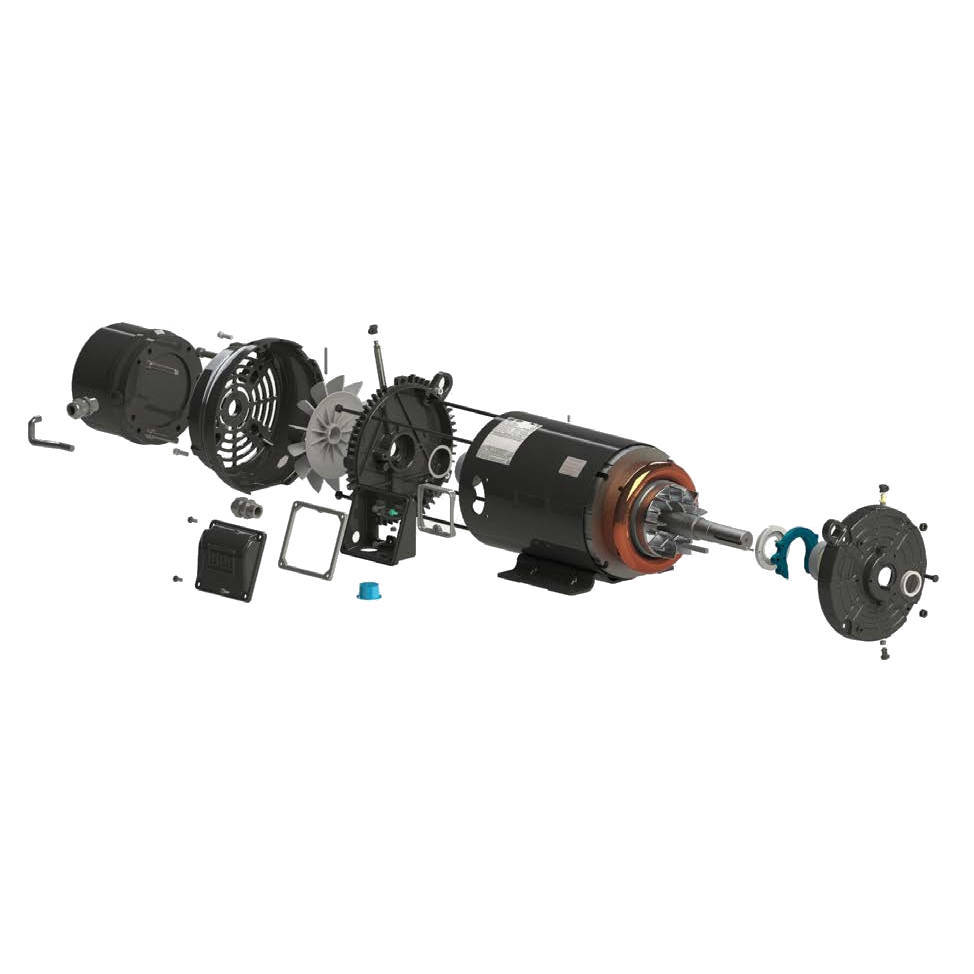

IC411 - TEFC, IP55, 213TC-215TC Frame, 208-230/460VAC 3-Phase 50/60Hz, 14593693, C-Face, Footless, Rolled Steel, NEMA Premium Efficiency, 1-3/8" Keyed Shaft

Features

1.15 Service Factor
Manual Release Lever
AC Brake
Inverter Rated
IP55 Enclosure
Dual Frequency (50/60Hz)

Applications

Conveyors
Door Operators
Packaging Equipment
Unit Handling

Technical Data

Electric Motors

Frame	213/5TC
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1770 rpm
Slip	1.67 %
Rated voltage	208-230/460 V
Rated current	20.1-18.1/9.07 A
L. R. Amperes	146-132/66.2 A
LRC	7.3x(Code H)
No load current	7.60-8.81/4.41 A
Rated torque	22.0 ft.lb
Locked rotor torque	260 %
Breakdown torque	300 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.9380 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	60.0 dB(A)
Approx. weight?	156 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	91.0	91.7

Power factor

50%	75%	100%
0.64	0.76	0.82

Frame	213/5TC
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1455 rpm
Slip	3.00 %
Rated voltage	190/380 V
Rated current	22.0/11.0 A
L. R. Amperes	136/68.2 A
LRC	6.2x(Code G)
No load current	8.65/4.33 A
Rated torque	26.7 ft.lb
Locked rotor torque	190 %
Breakdown torque	250 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.9380 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	57.0 dB(A)
Approx. weight?	156 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	90.0	88.6

Power factor

50%	75%	100%
0.71	0.82	0.86

Frame	213/5TC
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	220/415 V
Rated current	19.4/10.3 A
L. R. Amperes	142/75.2 A
LRC	7.3x(Code J)
No load current	9.60/5.09 A
Rated torque	26.5 ft.lb
Locked rotor torque	240 %
Breakdown torque	300 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.9380 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	57.0 dB(A)
Approx. weight?	156 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.4	90.1	89.4

Power factor

50%	75%	100%
0.64	0.76	0.83

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Aluminum
Tropicalized Painting	Without
Fan material	Plastic
Brake input Voltage	208-230/460//190/380 V
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
