/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Compressor Duty/00718OS1CCD215T WEG 7.5HP Compressor Duty Electric Motor, 1800RPM

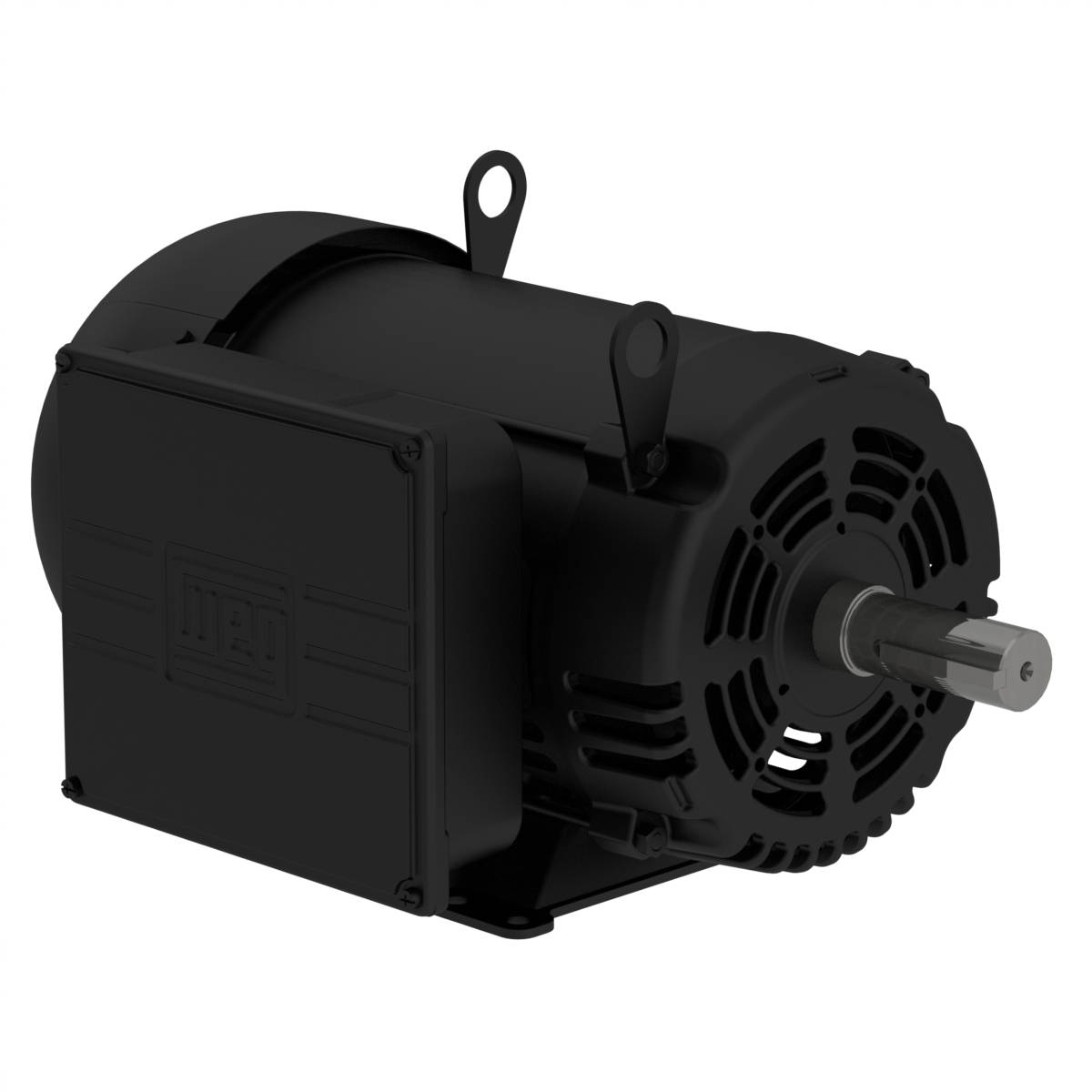

00718OS1CCD215T WEG 7.5HP Compressor Duty Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00718OS1CCD215T

00718OS1CCD215T WEG 7.5HP Compressor Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00718OS1CCD215T

Selected accessories will also be added to cart
$855.29 / Each
Quantity:
IC01 - ODP, 215T Frame, 208-230VAC, 60Hz, Single Phase

Electric Motors

Frame213/5T
Output7.5 HP (5.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1760 rpm
Slip2.22 %
Rated voltage208-230 V
Rated current33.8-32.2 A
L. R. Amperes267-254 A
LRC7.9x(Code J)
No load current7.80-12.2 A
Rated torque22.1 ft.lb
Locked rotor torque220 %
Breakdown torque250 %
Locked rotor time10s (cold) 6s (hot)
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP21
EnclosureIC01 - ODP
MountingF-1
Rotation¹CCW
Approx. weight³119 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
77.081.582.5

Power factor

50%75%100%
0.800.850.90

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
Painting
Grounding LugsSingle
Fan Cover materialRolled Steel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Resilient BaseWithout

 Loading...

Bearing details

 Drive EndNon Drive End
Bearing type6208 ZZ 6206 ZZ
SealingWithout Bearing SealWithout Bearing Seal
Lubrication interval--
Lubricant amount--
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
251 lb371 lb
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
ODP
Horsepower
7.5HP
Frame
215T
Input Voltage
208VAC
Input Voltage
230VAC
