00736AP3FGD184TZ-S WEG 5.0-7.5HP Grain Dryer Electric Motor, 3600RPM

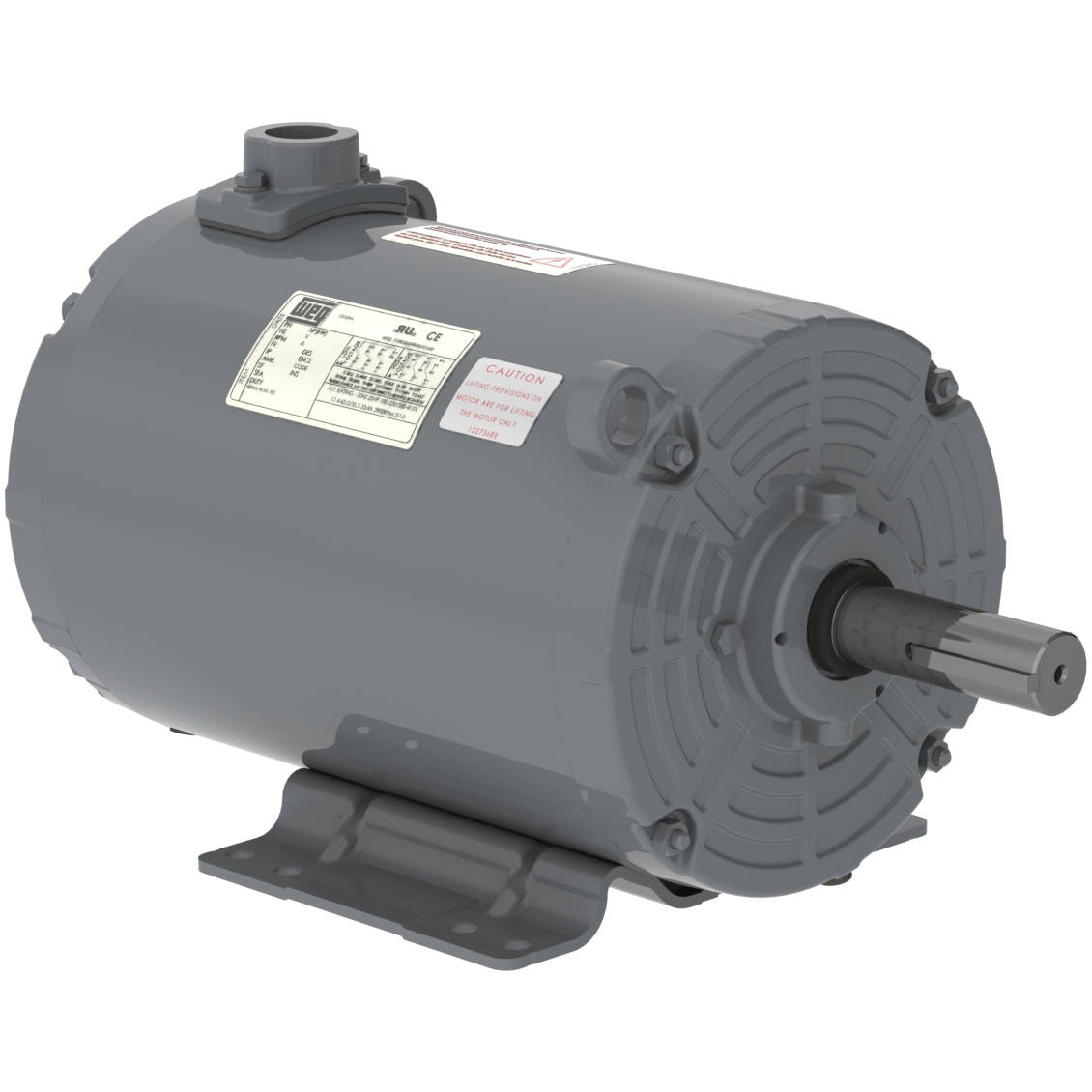

Enlarge Photo

Product ID: 00736AP3FGD184TZ-S

00736AP3FGD184TZ-S WEG 5.0-7.5HP Grain Dryer Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00736AP3FGD184TZ-S

Selected accessories will also be added to cart
$830.37 / Each
Quantity:
IC410 - TEAO, IP55, 182TZ/184TZ Frame, 208-230/460VAC 60Hz 3 Phase, 13207634, Rolled Steel, Standard Efficiency, Foot Mounted, 1-1/8" Keyed Shaft

Electric Motors

Frame182/4TZ
Output5 HP (3.7 kW)
Number of Poles2
Frequency60 Hz
Rated speed3535 rpm
Slip1.81 %
Rated voltage208-230/460 V
Rated current14.3-12.9/6.45 A
L. R. Amperes160-144/72.2 A
LRC11.2x(Code N)
No load current6.31-7.32/3.66 A
Rated torque7.43 ft.lb
Locked rotor torque390 %
Breakdown torque520 %
Locked rotor time18s (cold) 10s (hot)
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC410 - TEAO
MountingF-3
Rotation?CCW
Approx. weight?71.0 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
83.6  86.7  87.8

Power factor

50%75%100%
0.61  0.74  0.82
Frame182/4TZ
Output7.5 HP (5.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3495 rpm
Slip2.92 %
Rated voltage208-230/460 V
Rated current19.6-17.7/8.86 A
L. R. Amperes159-143/71.8 A
LRC8.1x(Code J)
No load current6.31-7.32/3.66 A
Rated torque11.3 ft.lb
Locked rotor torque260 %
Breakdown torque350 %
Locked rotor time18s (cold) 10s (hot)
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC410 - TEAO
MountingF-3
Rotation?CCW
Approx. weight?71.0 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
86.7  87.9  87.5

Power factor

50%75%100%
0.74  0.84  0.89

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 7031 207N (ISO 12944 - C2)
Grounding LugsSuperior
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Winding thermal protectionThermostat - 2 wires 1 per phase 155?C
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Enclosure
TEAO
Input Voltage
208VAC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
230VAC
Input Voltage
460VAC
Input Voltage
460VAC
Application
Grain Dryer
Horsepower
5HP
Horsepower
7.5HP
Frame
182T
