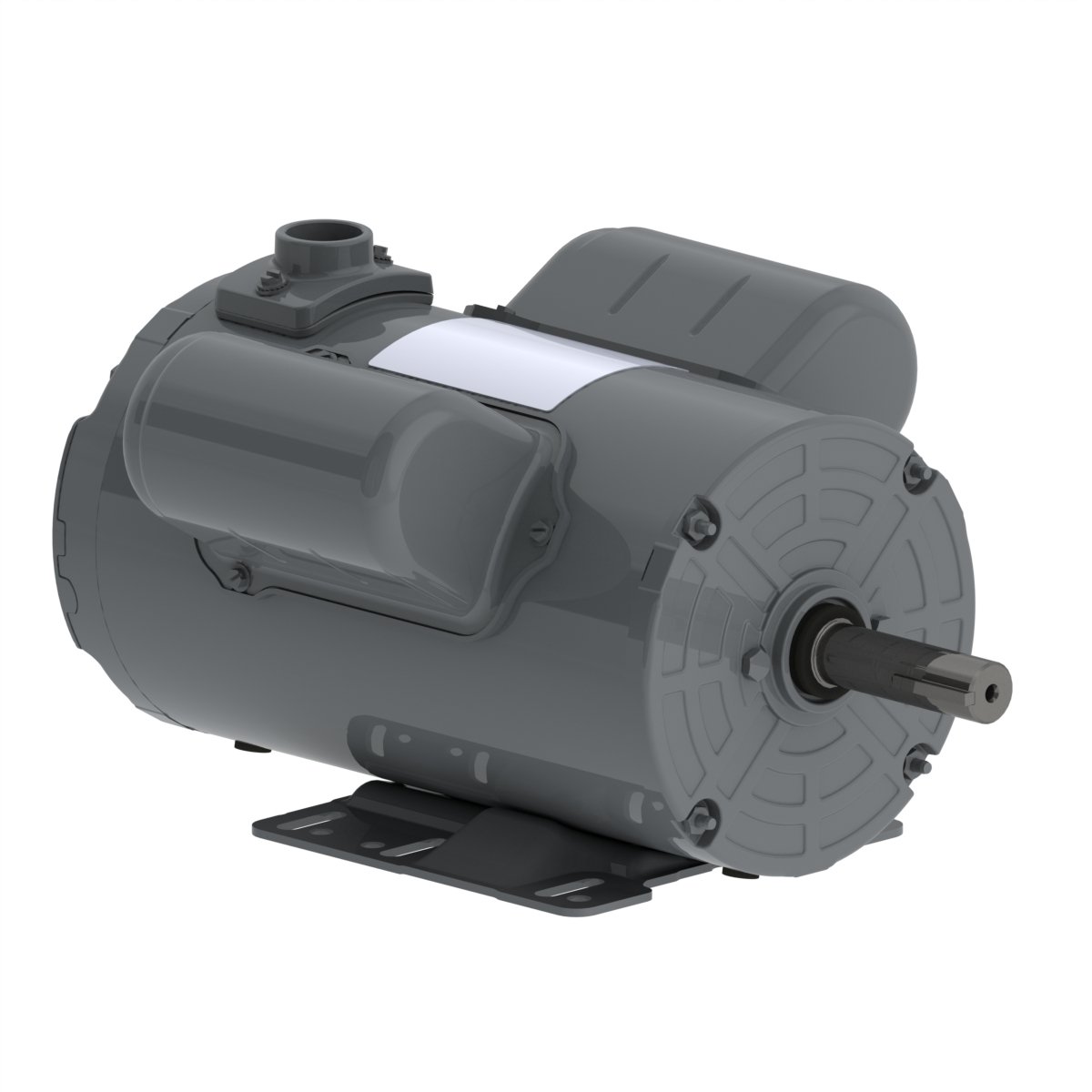

00736AP1DGD182TZ-S WEG 5-7.5HP Grain Dryer Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00736AP1DGD182TZ-S

00736AP1DGD182TZ-S WEG 5-7.5HP Grain Dryer Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00736AP1DGD182TZ-S

Selected accessories will also be added to cart
$1,153.44 / Each
Quantity:
IC410-TEAO, IP55, 182TZ/184TZ Frame, 230VAC Single Phase 60Hz, 13976275, Foot Mount, Rolled Steel, 1-1/8" Keyed Shaft

Electric Motors

Frame182/4TZ
Output5 HP (3.7 kW)
Number of Poles2
Frequency60 Hz
Rated speed3547 rpm
Slip1.47 %
Rated voltage230 V
Rated current19.8 A
L. R. Amperes224 A
LRC11.3x(Code M)
No load current4.90 A
Rated torque1.01 kgfm
Locked rotor torque300 %
Breakdown torque409 %
Locked rotor time12s (cold) 7s (hot)
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC410 - TEAO
MountingF-3
Rotation¹Both (CW and CCW)
Noise level²72.0 dB(A)
Approx. weight³29.8 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
73.479.982.9

Power factor

50%75%100%
0.950.970.98

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 7031 207N (ISO 12944 - C2)
Grounding LugsIn the endshield
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Winding thermal protectionThermostat - 2 wires 1 per phase 155°C
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Application
Farm Duty
Enclosure
TEAO
Horsepower
5HP
Horsepower
7.5HP
Application
Grain Dryer
Frame
182TZ
Frame
184TZ
