/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/General Purpose, TEFC, W22/00736ES1B213T-W22 WEG 7.5HP Electric Motor, 3600RPM

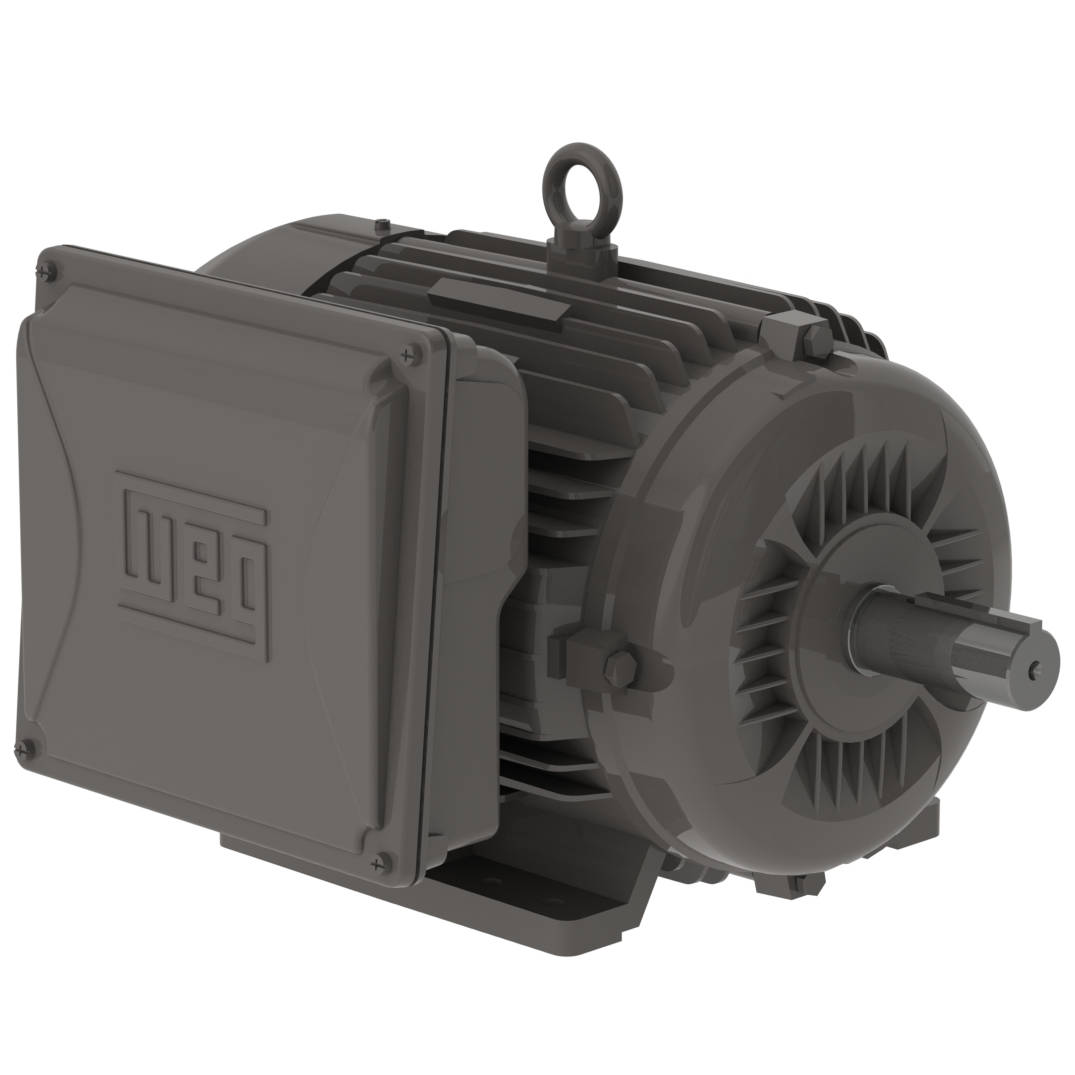

00736ES1B213T-W22 WEG 7.5HP Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00736ES1B213T-W22

00736ES1B213T-W22 WEG 7.5HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00736ES1B213T-W22

Selected accessories will also be added to cart
$1,381.28 / Each
Quantity:
IC411 - TEFC, IP55, 213T/215T Frame, 115/208-230VAC 60Hz Single Phase, 14182439, Foot Mounted, Cast Iron Frame, 1-3/8" Keyed Shaft

Electric Motors

Frame213/5T
Output7.5 HP (5.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3520 rpm
Slip2.22 %
Rated voltage115/208-230 V
Rated current61.4/33.9-30.7 A
L. R. Amperes497/275-249 A
LRC8.1x(Code J)
No load current20.8/13.3-10.4 A
Rated torque11.2 ft.lb
Locked rotor torque210 %
Breakdown torque310 %
Locked rotor time12s (cold) 7s (hot)
Insulation ClassF
Service factor1.15
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Approx. weight³159 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
79.583.588.0

Power factor

50%75%100%
0.740.820.89

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 7022 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
TEFC
Horsepower
7.5HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
Frame
213T
Frame
215T
