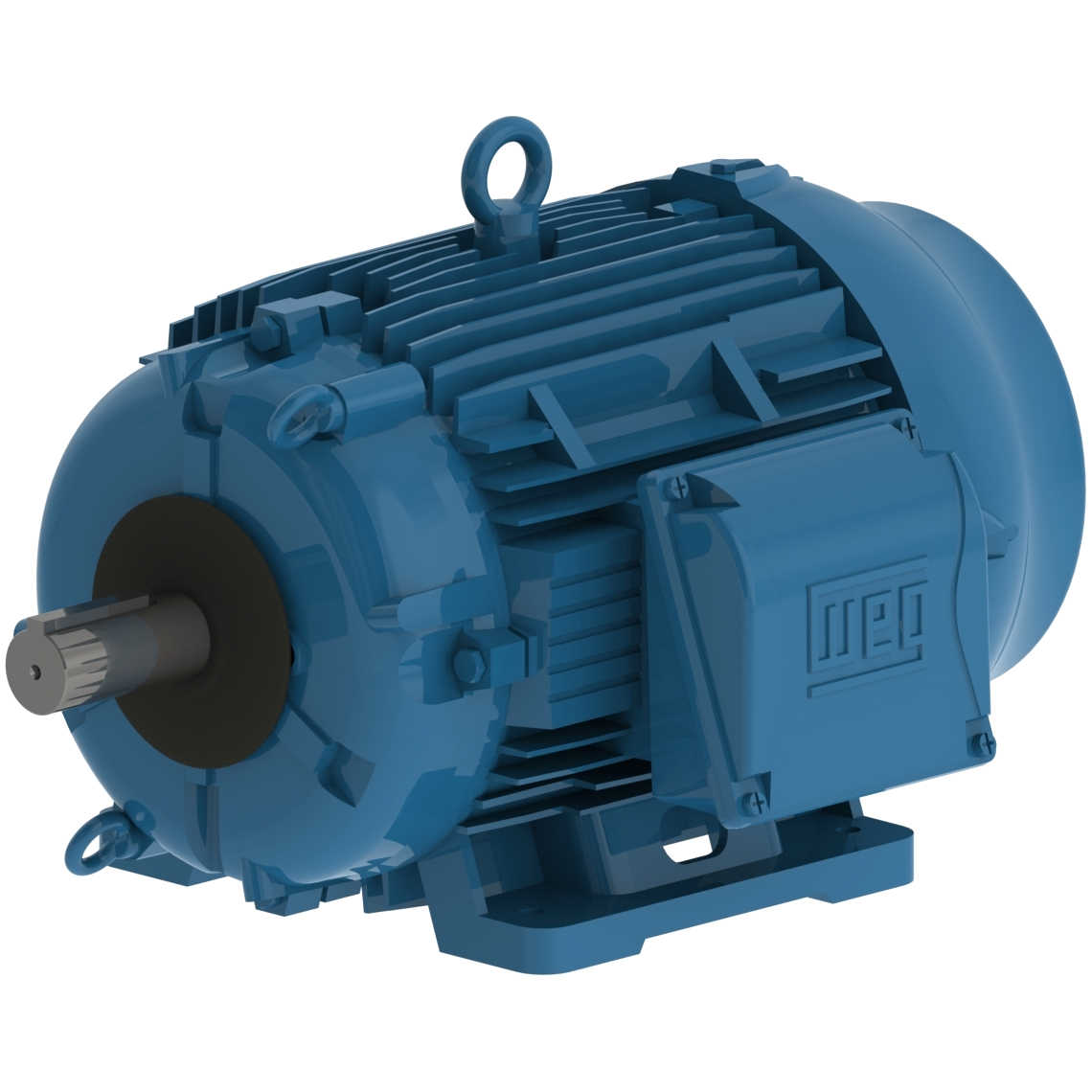

00789EP3QCT254V2-W22 WEG 7.5/1.75HP Cooling Tower Electric Motor, 1800/900RPM
Enlarge Photo

Product ID: 00789EP3QCT254V2-W22

00789EP3QCT254V2-W22 WEG 7.5/1.75HP Cooling Tower Electric Motor, 1800/900RPM

MFG: WEG Electric Corporation
MFG Part Number: 00789EP3QCT254V2-W22

Selected accessories will also be added to cart
$2,106.00 / Each
Quantity:
IC411 - TEFC, IP55, 254T Frame, 460VAC 60Hz 3 Phase, 12172998, High Efficiency, Foot Mounted, Cast Iron Frame, Dual Speed, 1-5/8" Keyed Shaft

Electric Motors

Frame 254T
Output 7.5 HP (5.5 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 460 V
Rated current 9.30 A
L. R. Amperes 79.1 A
LRC 8.5x(Code K)
No load current 3.55 A
Rated torque 22.1 ft.lb
Locked rotor torque 260 %
Breakdown torque 360 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 2.62 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 2.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  88.2  88.5

Power factor

50% 75% 100%
0.68  0.78  0.84
Frame 254T
Output 1.75 HP (1.3 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 890 rpm
Slip 1.11 %
Rated voltage 460 V
Rated current 3.50 A
L. R. Amperes 19.6 A
LRC 5.6x(Code K)
No load current 2.50 A
Rated torque 10.3 ft.lb
Locked rotor torque 280 %
Breakdown torque 350 %
Locked rotor time 43s (cold) 24s (hot)
Moment of inertia (J) 2.62 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 54.0 dB(A)
Approx. weight³ 2.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
71.0  77.0  79.0

Power factor

50% 75% 100%
0.37  0.50  0.59

Features

Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 1 1/2"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
