/Products/Electric Motors/3 Phase/WEG/Compressor Duty/01018OT3E215T-S WEG 10HP Compressor Duty Electric Motor, 1800RPM
Click Image to Expand

Product ID: 01018OT3E215T-S

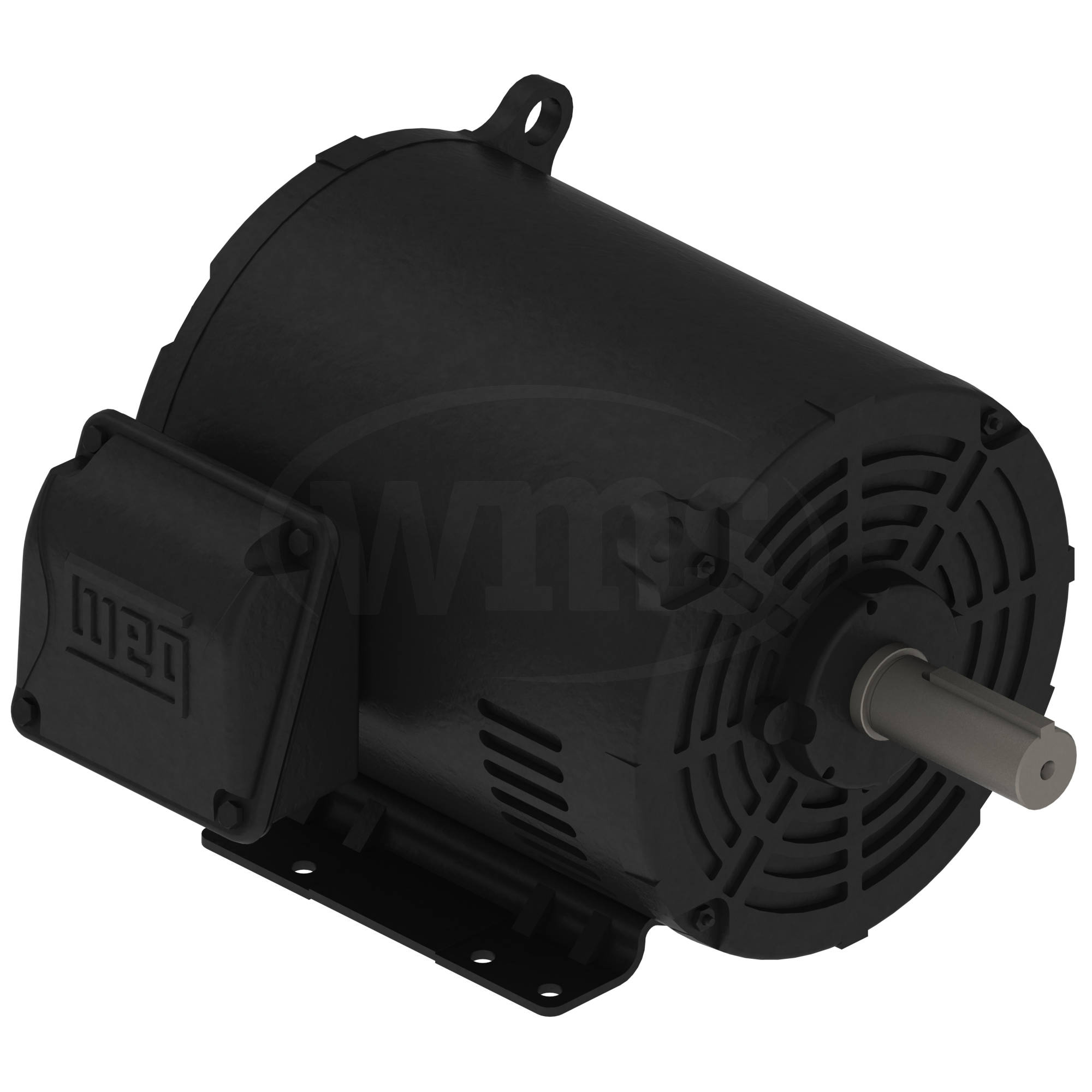

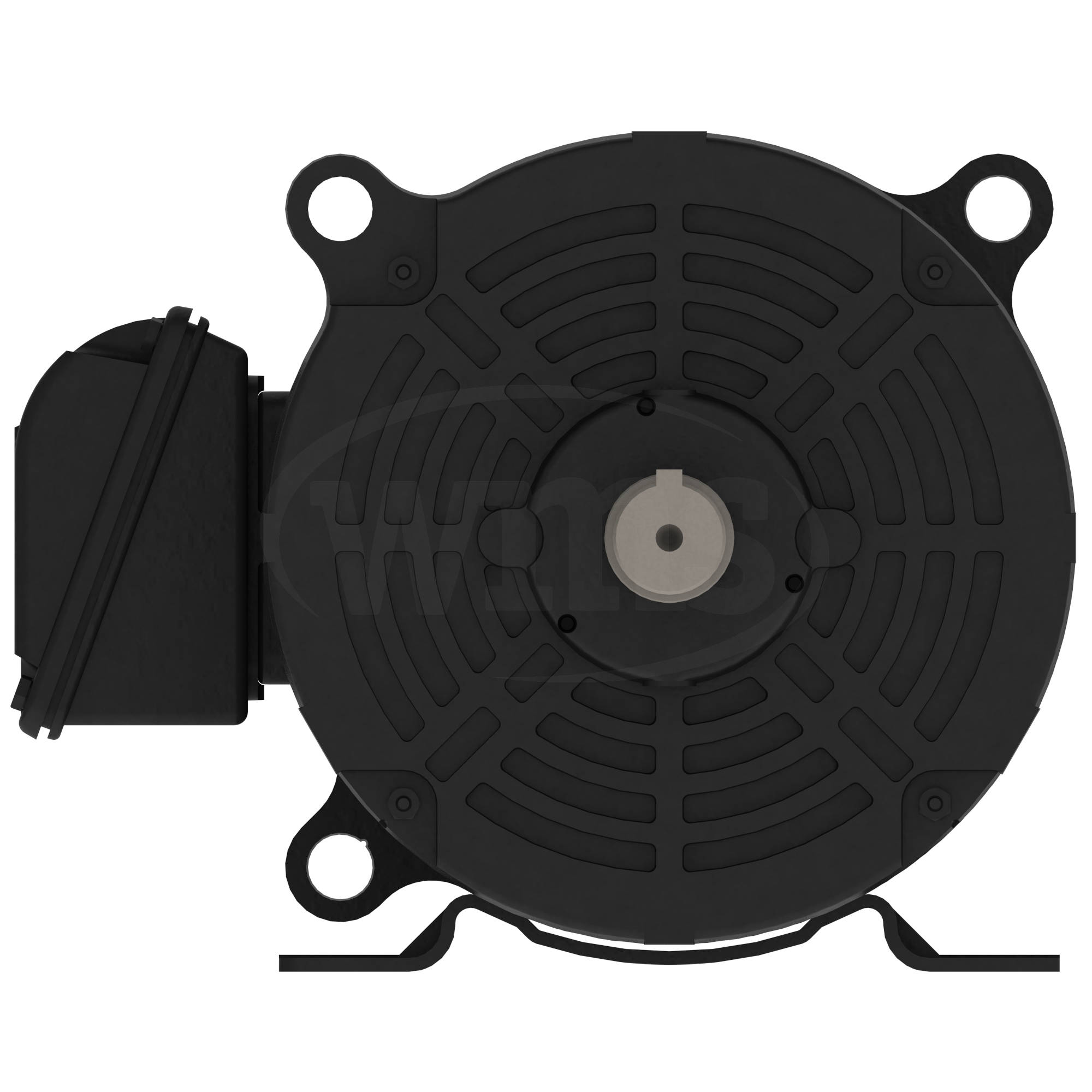

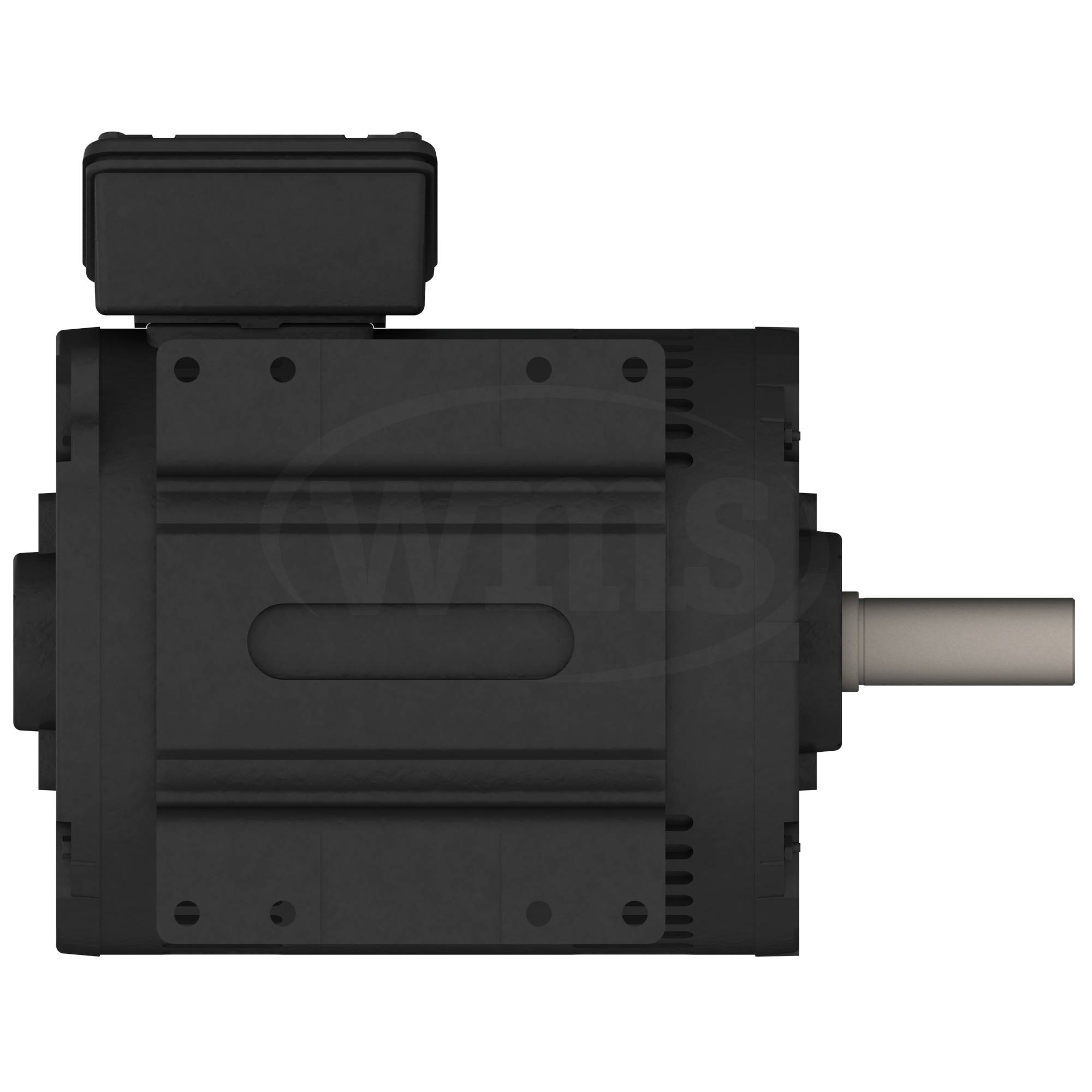

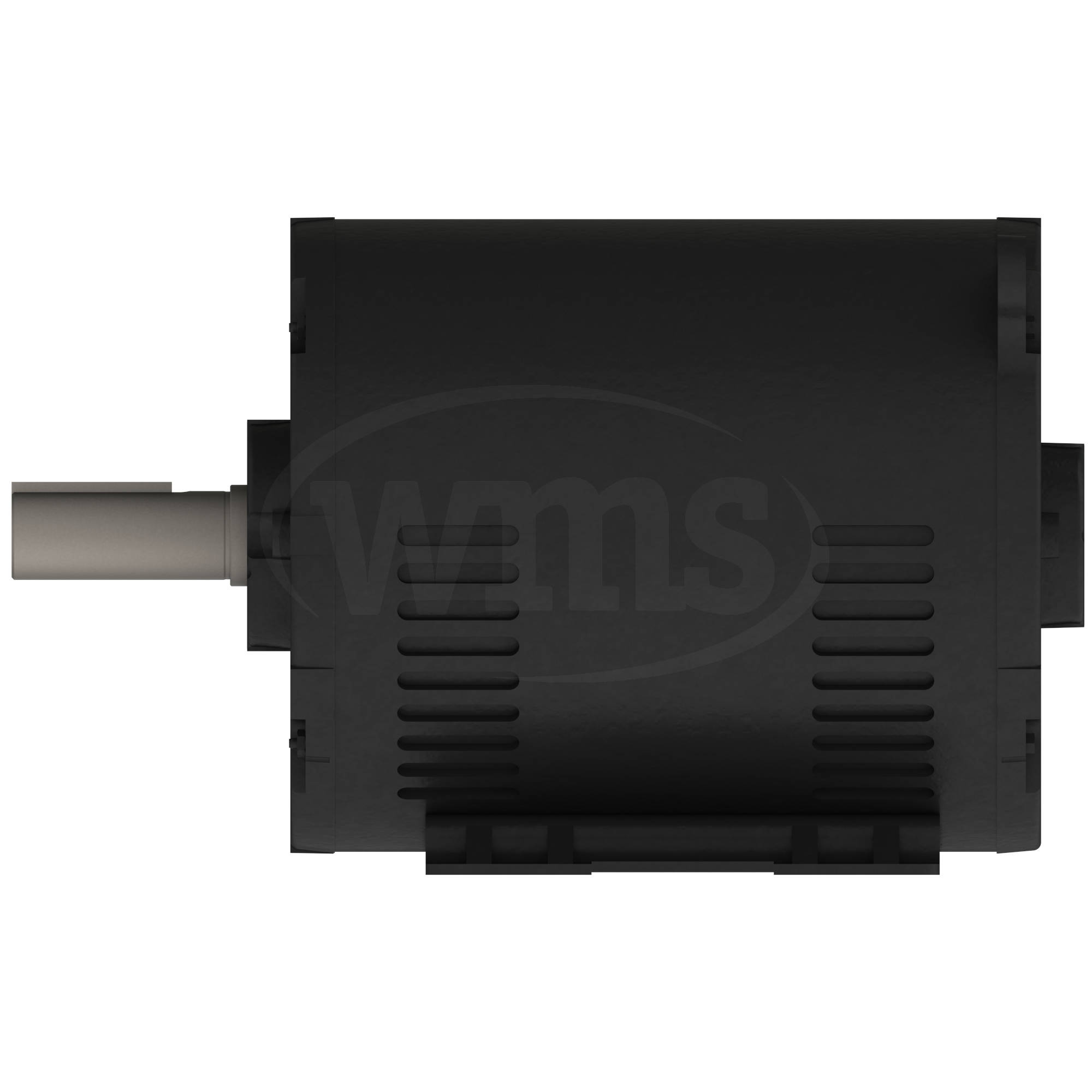

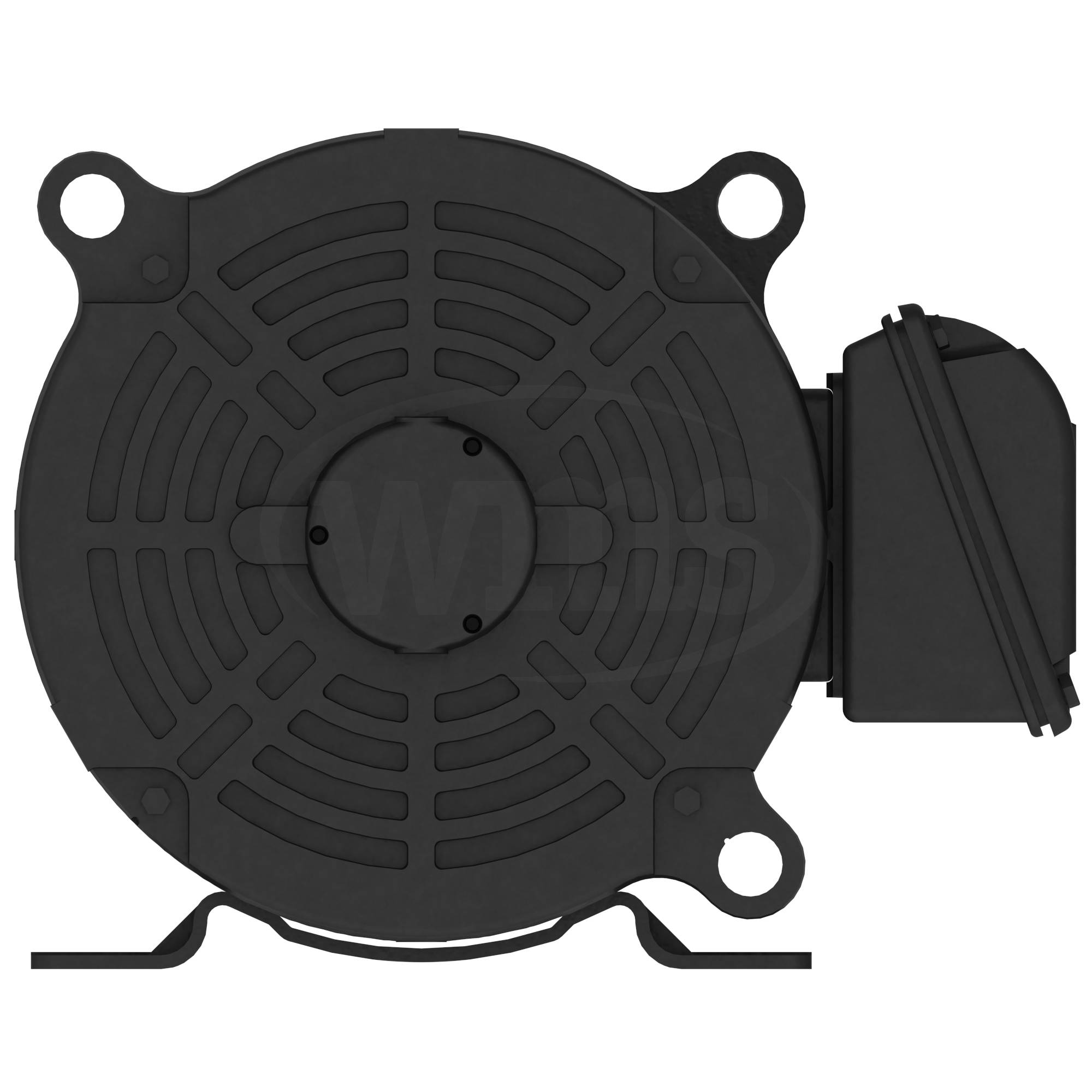

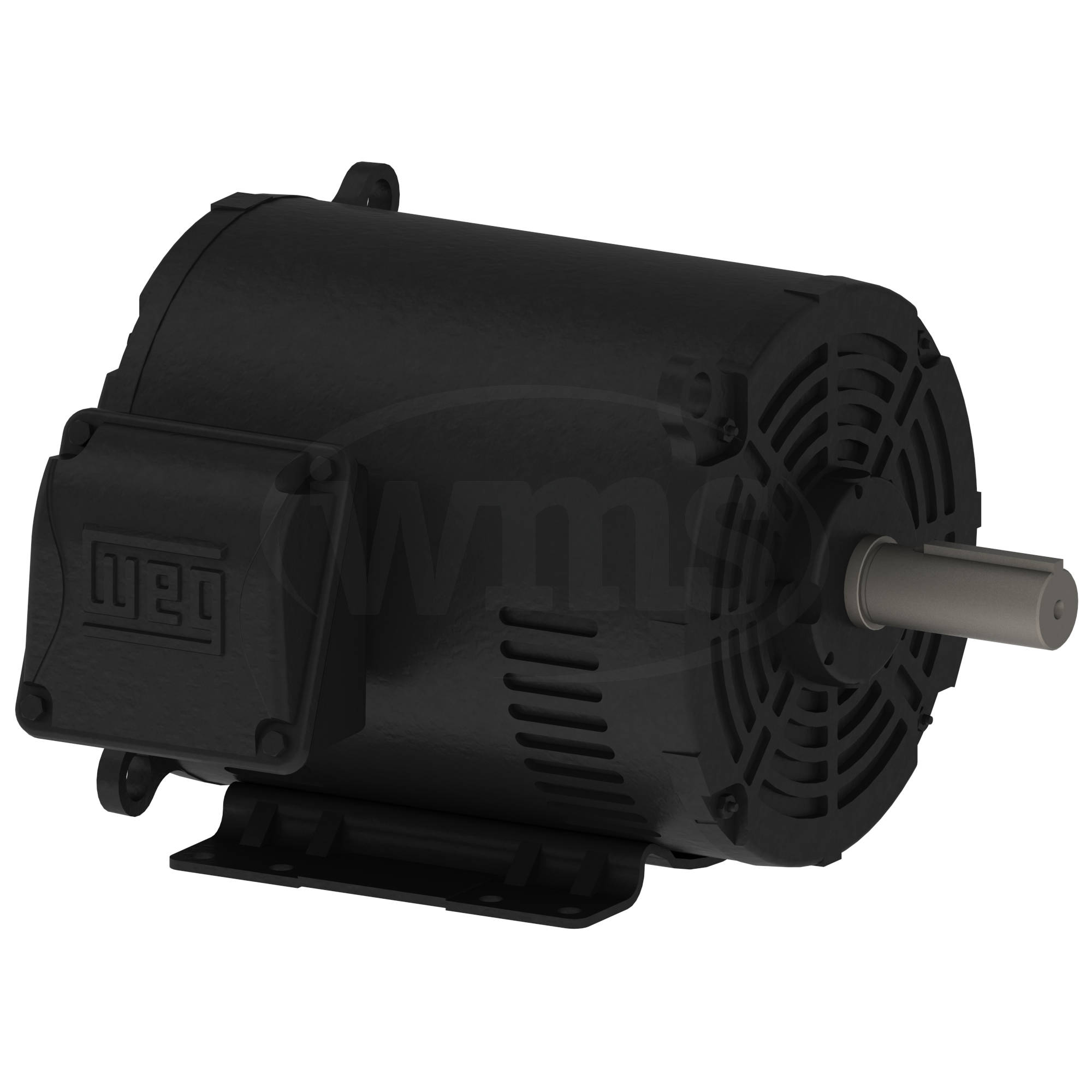

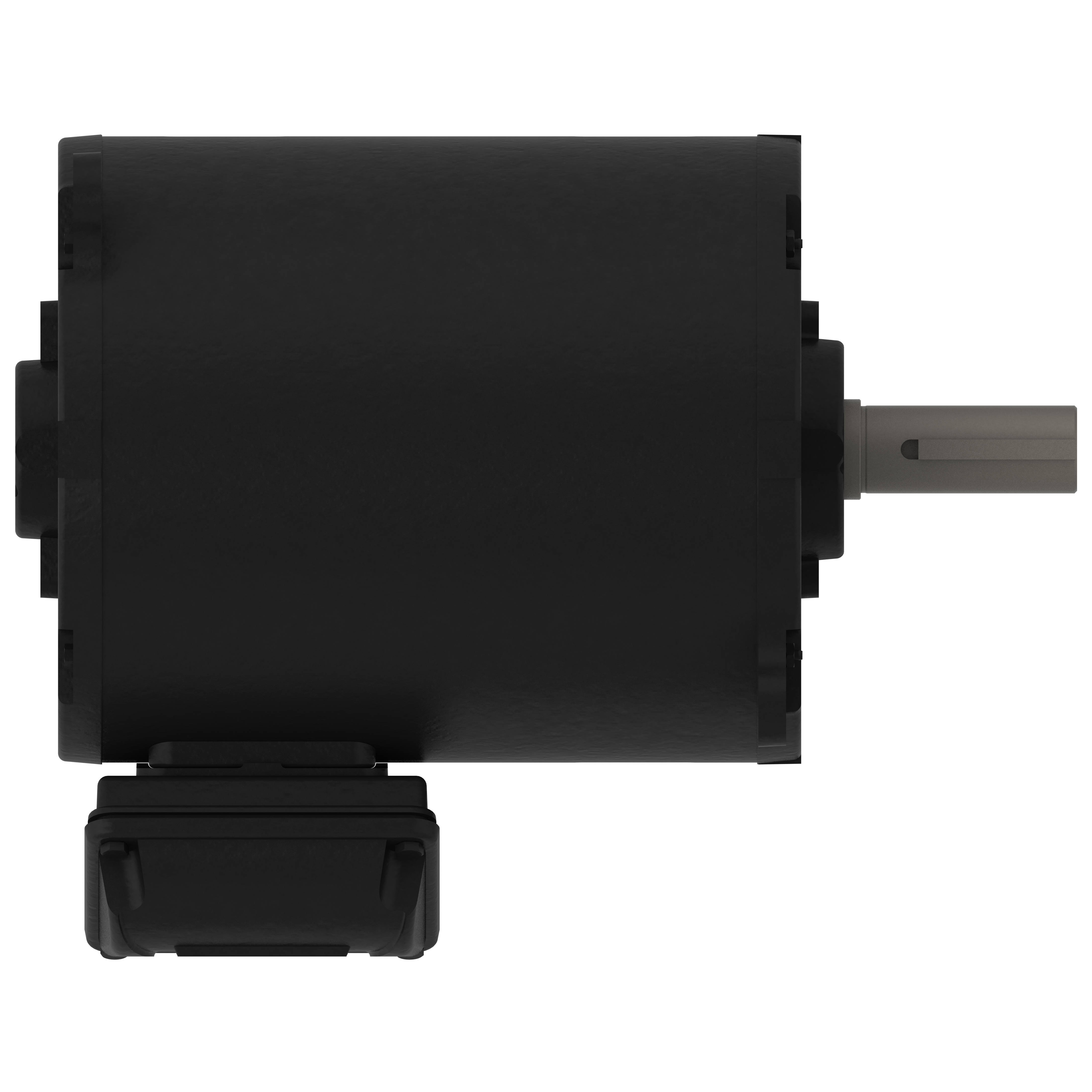

01018OT3E215T-S WEG 10HP Compressor Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 01018OT3E215T-S

Selected accessories will also be added to cart
$826.50 / Each
Quantity:
IC01 - ODP, 213/215T Frame, 208-230/460VAC 3 Phase 50/60Hz, 12630272, Rolled Steel NEMA Premium Efficiency, 1-3/8" Keyed Shaft

Electric Motors

Frame 213/5T
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 208-230/460 V
Rated current 27.4-24.8/12.4 A
L. R. Amperes 192-174/86.8 A
LRC 7.0x(Code H)
No load current 10.3-12.0/5.99 A
Rated torque 29.3 ft.lb
Locked rotor torque 250 %
Breakdown torque 350 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 1.30 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 120 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.2  91.0  91.7

Power factor

50% 75% 100%
0.64  0.77  0.83
Frame 213/5T
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 190/380 V
Rated current 29.8/14.9 A
L. R. Amperes 191/95.4 A
LRC 6.4x(Code G)
No load current 11.8/5.89 A
Rated torque 35.5 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 1.30 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 120 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.1  89.7  88.1

Power factor

50% 75% 100%
0.72  0.82  0.87
Frame 213/5T
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 220/415 V
Rated current 26.4/14.0 A
L. R. Amperes 201/106 A
LRC 7.6x(Code J)
No load current 13.1/6.93 A
Rated torque 35.2 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 1.30 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 120 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.1  89.7  89.0

Power factor

50% 75% 100%
0.64  0.77  0.84

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.377"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting

Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

 Loading...

 Loading...

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6208 ZZ   6206 ZZ
Sealing Without Bearing Seal  Without Bearing Seal
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
544 lb  665 lb
