01018OT3H215JMV-S WEG 10HP JM Close-Coupled Pump Electric Motor, 1800RPM

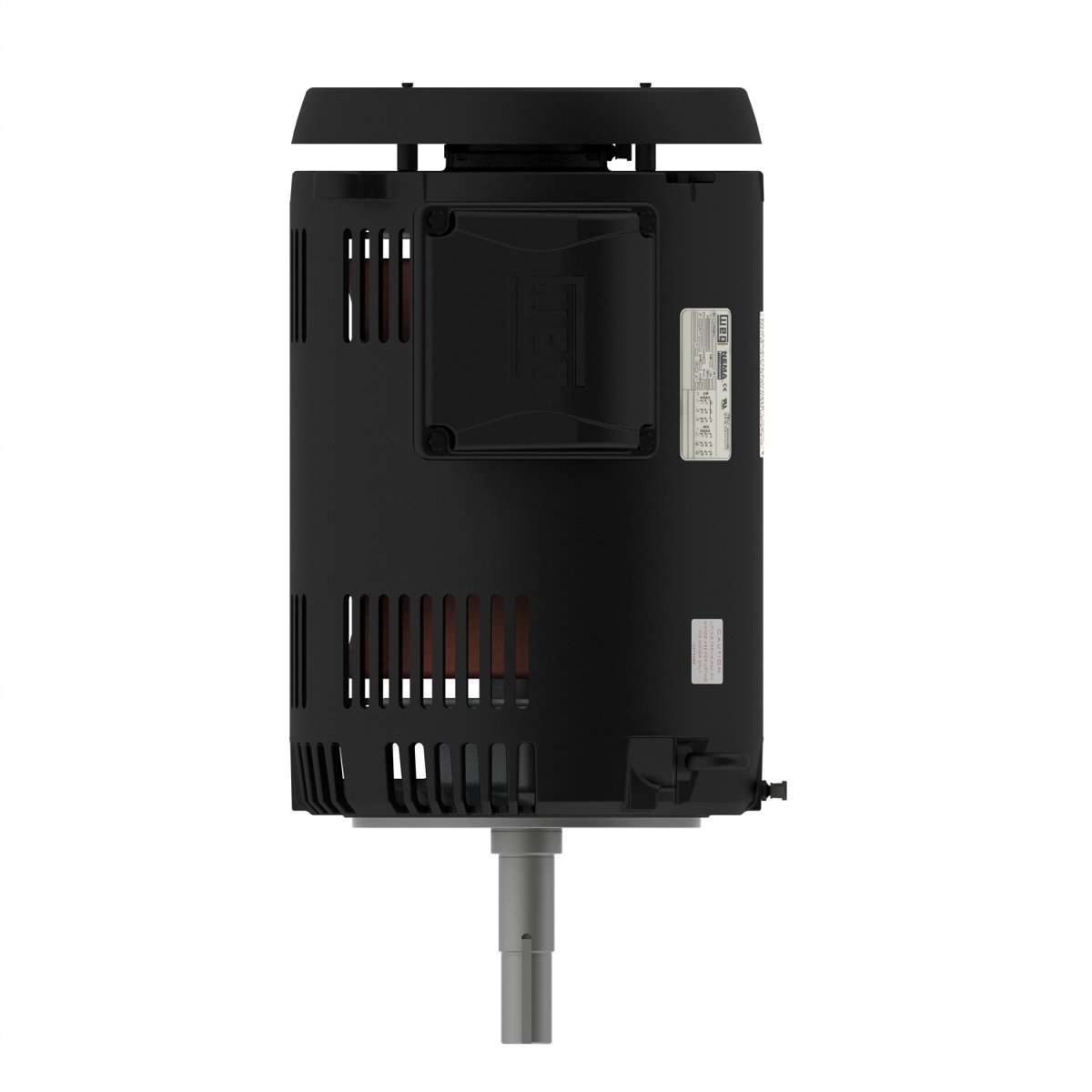

Enlarge Photo

Product ID: 01018OT3H215JMV-S

01018OT3H215JMV-S WEG 10HP JM Close-Coupled Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 01018OT3H215JMV-S

Selected accessories will also be added to cart
$1,288.72 / Each
Quantity:
IC01 - ODP, 213JM/215JM Frame, 575VAC 3-Phase 60Hz, 13289039, Footless, Vertical Mount, Rolled Steel, NEMA Premium Efficiency

Electric Motors

Frame213/5JM
Output10 HP (7.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1770 rpm
Slip1.67 %
Rated voltage575 V
Rated current9.92 A
L. R. Amperes69.4 A
LRC7.0x(Code H)
No load current4.79 A
Rated torque29.3 ft.lb
Locked rotor torque250 %
Breakdown torque350 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)1.30 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingW-6
Rotation?Both (CW and CCW)
Noise level?59.0 dB(A)
Approx. weight?126 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.2  91.0  91.7

Power factor

50%75%100%
0.64  0.77  0.83

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.377"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWith
Resilient BaseWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
10HP
Enclosure
ODP
Input Voltage
575VAC
Frame
213JM/215JM
