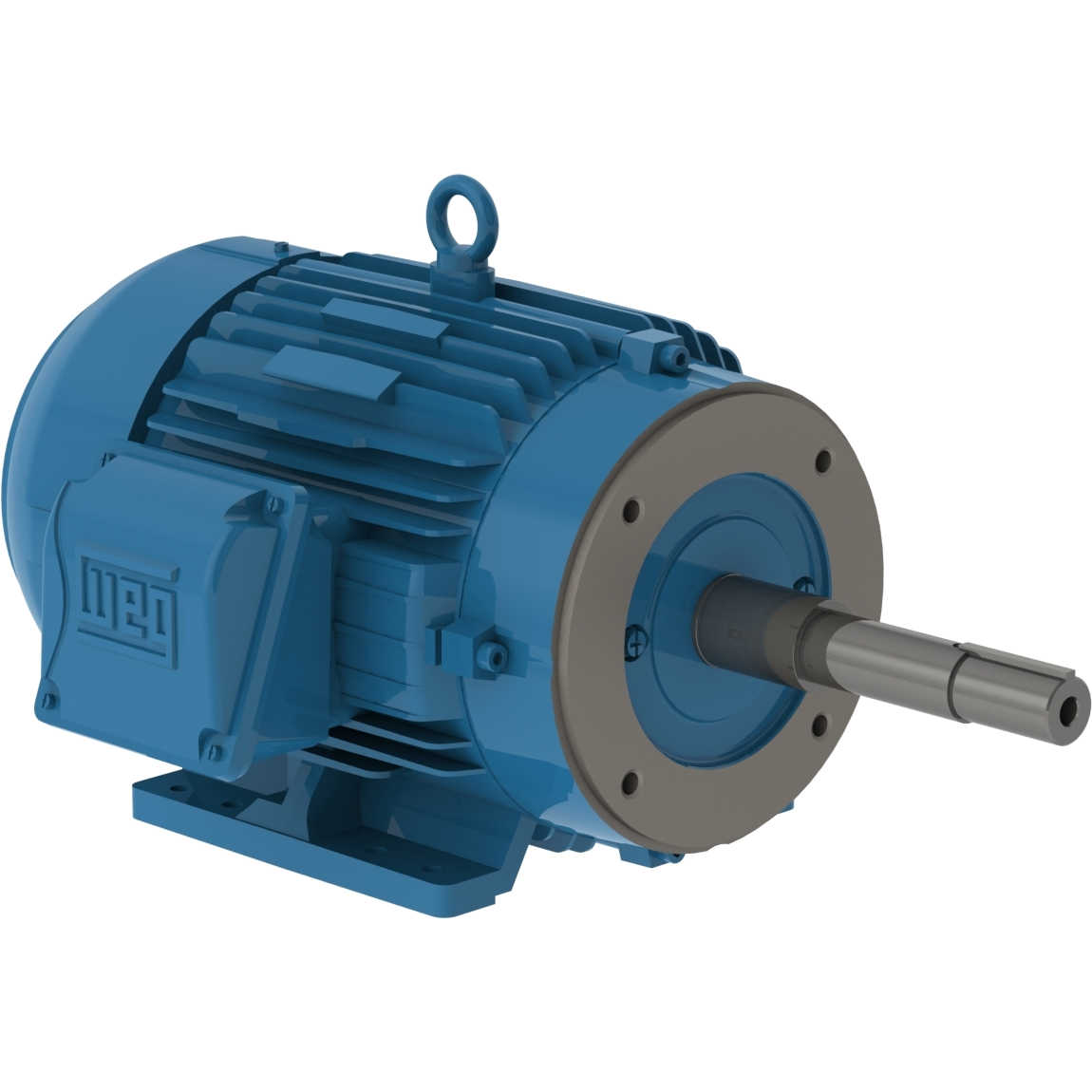

01036ET3H215JP-W22 WEG 10HP JP Close Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 01036ET3H215JP-W22

01036ET3H215JP-W22 WEG 10HP JP Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01036ET3H215JP-W22

Selected accessories will also be added to cart
$1,350.75 / Each
Quantity:
IC411 - TEFC, IP55, 213JP/215JP Frame, 575VAC 60Hz 3 Phase, 12712069, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame 213/5JP
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3530 rpm
Slip 1.94 %
Rated voltage 575 V
Rated current 9.28 A
L. R. Amperes 66.8 A
LRC 7.2x(Code H)
No load current 2.88 A
Rated torque 14.9 ft.lb
Locked rotor torque 220 %
Breakdown torque 290 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.6362 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 183 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.5  90.2  90.2

Power factor

50% 75% 100%
0.79  0.87  0.90

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover Without
Pump Seal Gasket
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
