/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Farm Duty/Grain Dryer/01036AP3EGD184TZ-S WEG 7.5/10HP Grain Dryer Electric Motor, 3600RPM
Click Image to Expand

Product ID: 01036AP3EGD184TZ-S

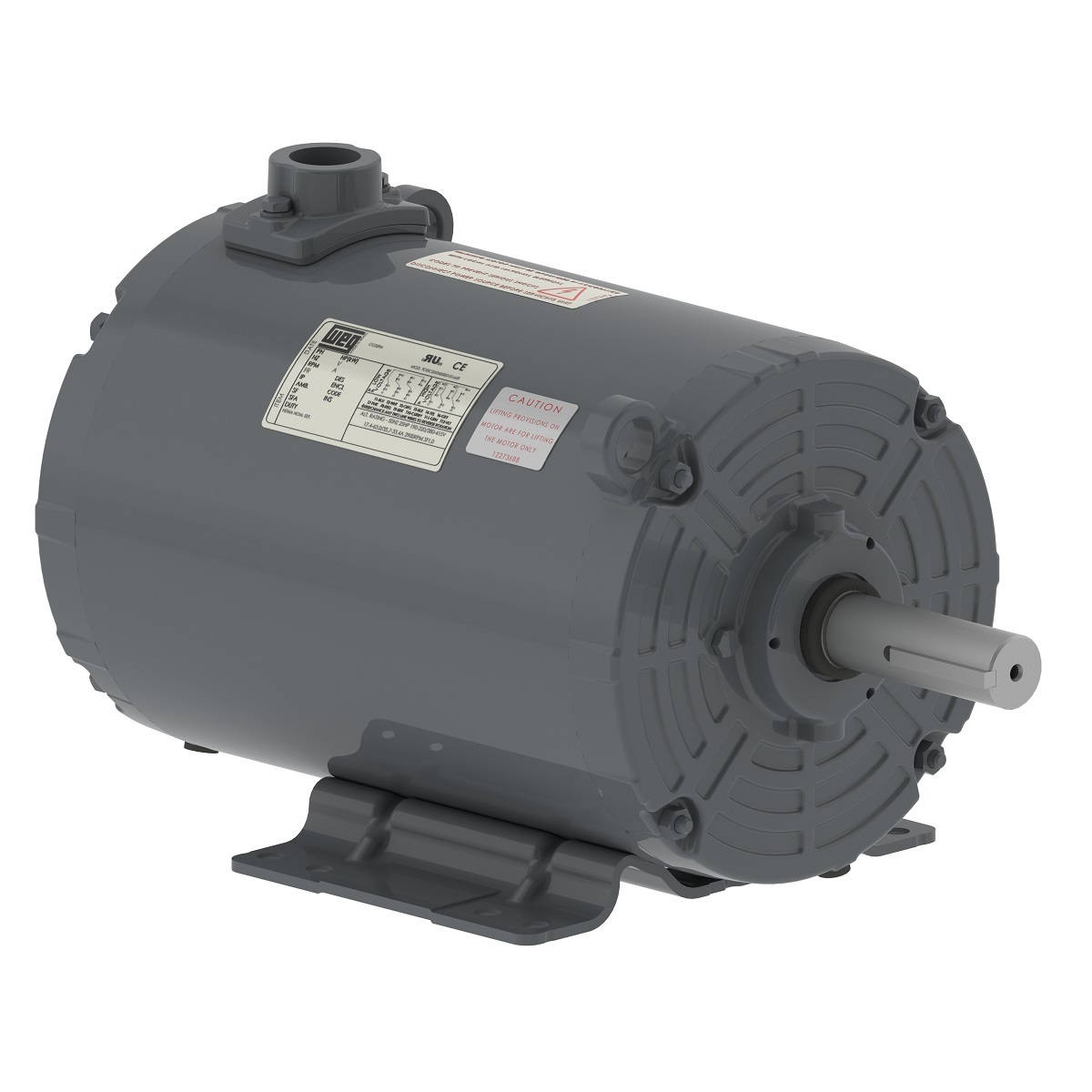

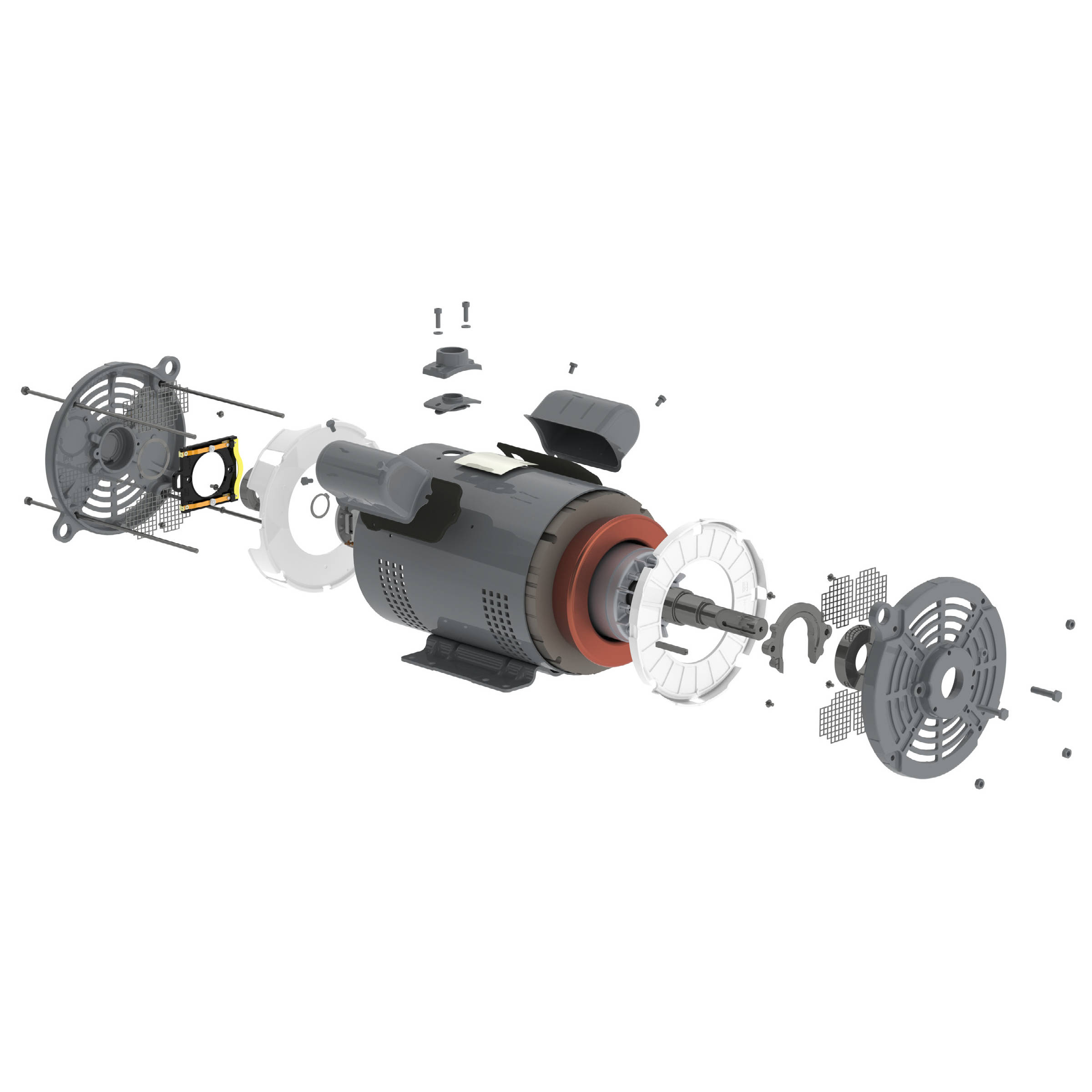

01036AP3EGD184TZ-S WEG 7.5/10HP Grain Dryer Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01036AP3EGD184TZ-S

Selected accessories will also be added to cart
$999.47 / Each
Quantity:
3600RPM, RS-Epact, 182TZ/184TZ Frame, 208-230/460VAC 60Hz 3-Phase, IC410-TEAO, 13184647, Foot Mounted, Rolled Steel, 1-1/8" Shaft

Electric Motors

Frame182/4TZ
Output7.5 HP (5.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3520 rpm
Slip2.22 %
Rated voltage208-230/460 V
Rated current20.0-18.1/9.04 A
L. R. Amperes190-172/85.9 A
LRC9.5x(Code L)
No load current0.000-8.79/4.40 A
Rated torque11.0 ft.lb
Locked rotor torque320 %
Breakdown torque440 %
Locked rotor time18s (cold) 10s (hot)
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC410 - TEAO
MountingF-3
Rotation?CCW
Approx. weight?82.9 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.4  89.8  89.8

Power factor

50%75%100%
0.67  0.79  0.85

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
Painting

Grounding LugsSuperior
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Winding thermal protectionThermostat - 2 wires 1 per phase 155?C
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout

Bearing details

 Drive EndNon Drive End
Bearing type6206 ZZ  6205 ZZ
SealingV'Ring V'Ring
Lubrication interval- -
Lubricant amount- -
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
269 lb 352 lb
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Enclosure
TEAO
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Application
Grain Dryer
Frame
182T
Horsepower
10HP
Horsepower
7.5HP
