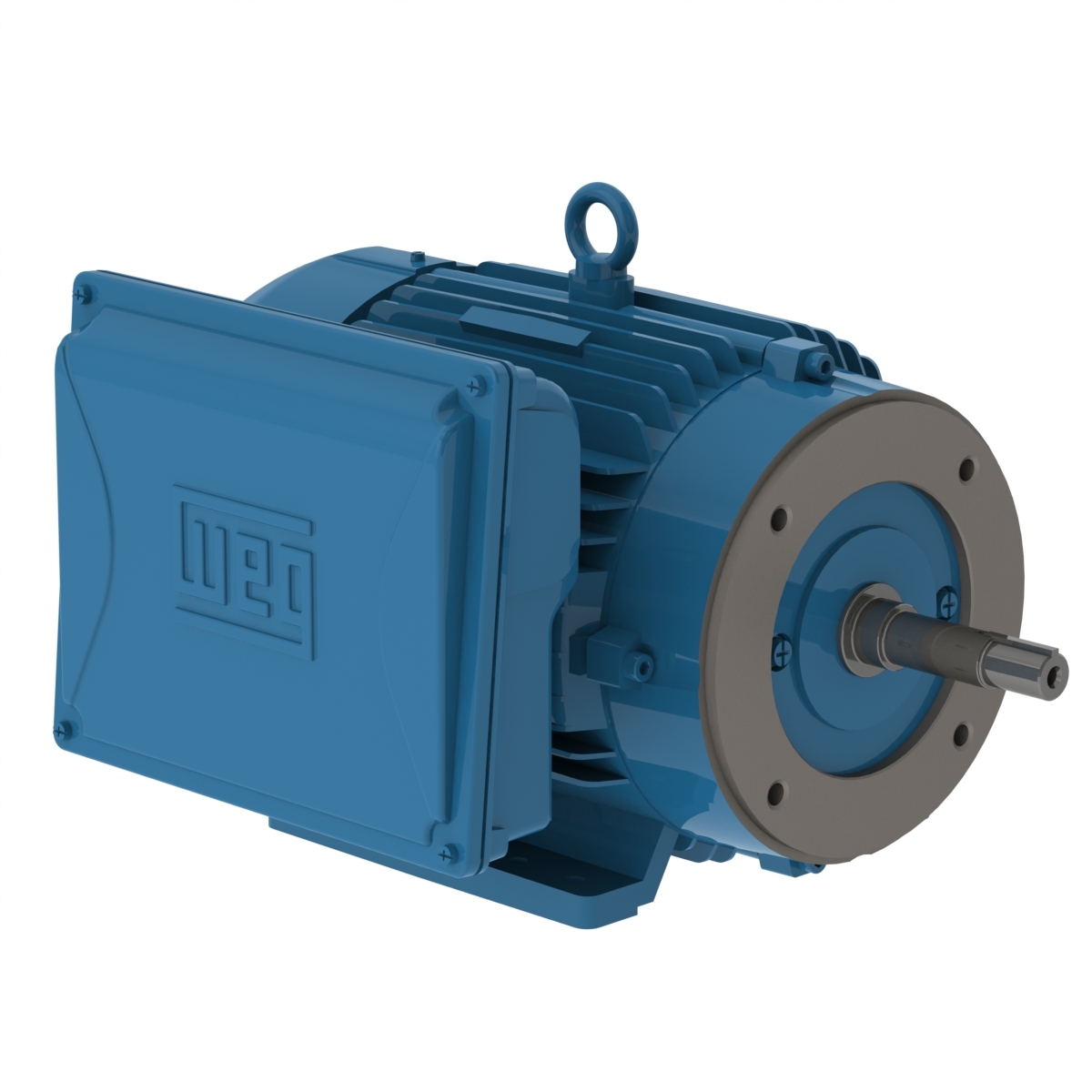

01036ES1C215JM-W22 WEG 10HP JM Close-Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 01036ES1C215JM-W22

01036ES1C215JM-W22 WEG 10HP JM Close-Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01036ES1C215JM-W22

Selected accessories will also be added to cart
$1,933.08 / Each
Quantity:
IC411 - TEFC, IP55, 213JM/215JM Frame, 208-230VAC 60Hz Single Phase, 14185023, Cast Iron Frame, Foot Mounted

Electric Motors

Frame213/5JM
Output10 HP (7.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3515 rpm
Slip2.36 %
Rated voltage208-230 V
Rated current41.8-38.9 A
L. R. Amperes293-272 A
LRC7.0x(Code G)
No load current5.95-6.90 A
Rated torque14.9 ft.lb
Locked rotor torque229 %
Breakdown torque290 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.5285 sq.ft.lb
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²72.0 dB(A)
Approx. weight³169 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
82.085.586.5

Power factor

50%75%100%
0.960.970.97

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
TEFC
Horsepower
10HP
Frame
213JM
Frame
215JM
