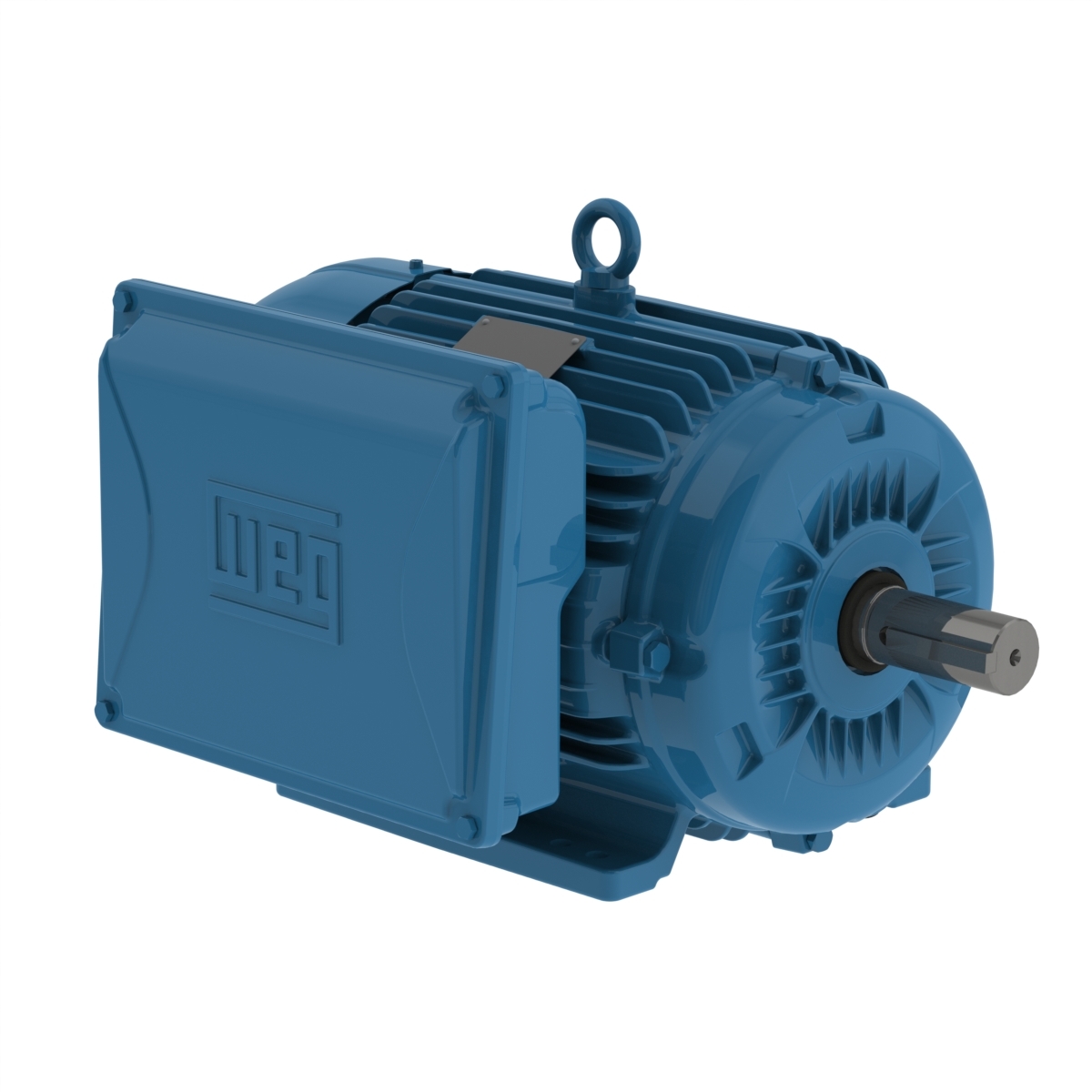

01036ES1E215T-W22 WEG 10HP Electric Motor, 3600RPM
Enlarge Photo

Product ID: 01036ES1E215T-W22

01036ES1E215T-W22 WEG 10HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01036ES1E215T-W22

Selected accessories will also be added to cart
$1,705.24 / Each
Quantity:
IC411 - TEFC, IP55, 213T/215T Frame, 208-230/460VAC 60Hz Single Phase, 14112391, Foot Mounted, Cast Iron Frame, 1-3/8" Keyed Shaft

Electric Motors

Frame213/5T
Output10 HP (7.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3515 rpm
Slip2.36 %
Rated voltage208-230/460 V
Rated current41.8-38.8/19.4 A
L. R. Amperes293-272/136 A
LRC7.0x(Code G)
No load current5.95-6.90/3.45 A
Rated torque2.06 kgfm
Locked rotor torque229 %
Breakdown torque290 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.0223 kgm²
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²72.0 dB(A)
Approx. weight³74.4 kg

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
82.085.586.5

Power factor

50%75%100%
0.960.970.97

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
TEFC
Horsepower
10HP
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
213T
Frame
215T
