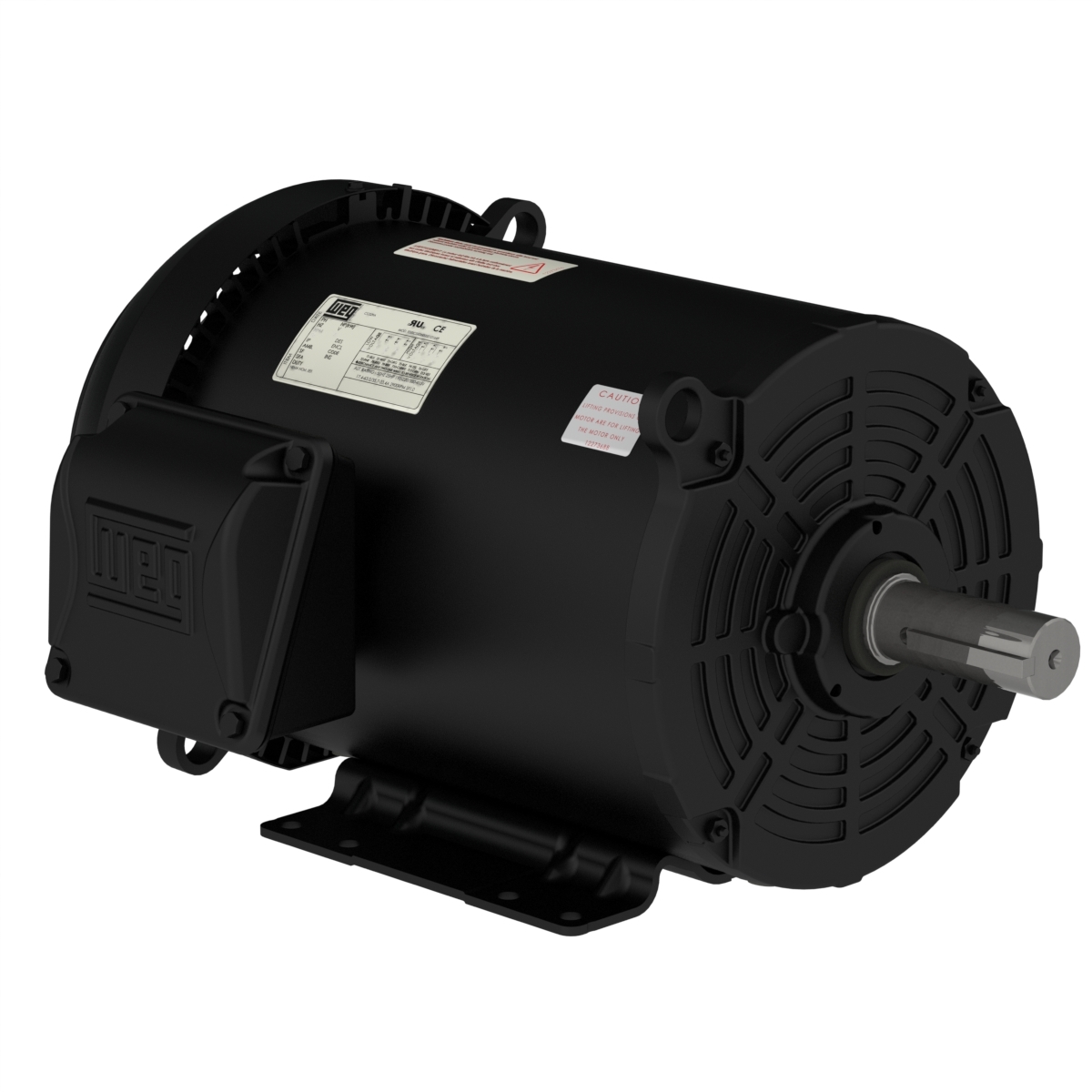

01036ET3E215T-SRT WEG 10HP General Purpose Electric Motor, 3600RPM
Enlarge Photo

Product ID: 01036ET3E215T-SRT

01036ET3E215T-SRT WEG 10HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01036ET3E215T-SRT

Selected accessories will also be added to cart
$1,135.64 / Each
Quantity:
IC411 - TEFC, 213T/215T Frame, 208-230/460VAC 3-Phase 50/60Hz, 13207633, Foot Mounted, Rolled Steel, 1-3/8" Keyed Shaft, NEMA Premium Efficiency

Electric Motors

Frame213/5T
Output10 HP (7.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3510 rpm
Slip2.50 %
Rated voltage208-230/460 V
Rated current25.9-23.5/11.7 A
L. R. Amperes181-165/81.9 A
No load current0.000-8.20/4.10 A
Rated torque14.8 ft.lb
Locked rotor torque229 %
Breakdown torque305 %
DesignB
Insulation ClassF
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?70.0 dB(A)
Approx. weight?123 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.1  89.6  90.2

Power factor

50%75%100%
0.77  0.85  0.89

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.377"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
Painting

Grounding LugsSingle
Fan Cover materialRolled Steel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout

Bearing details

 Drive EndNon Drive End
Bearing type6208 ZZ  6206 ZZ
SealingV'Ring V'Ring
Lubrication interval- -
Lubricant amount- -
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
192 lb 315 lb
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
10HP
Enclosure
TEFC
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
230VAC
Input Voltage
460VAC
Input Voltage
460VAC
Frame
213T/215T
