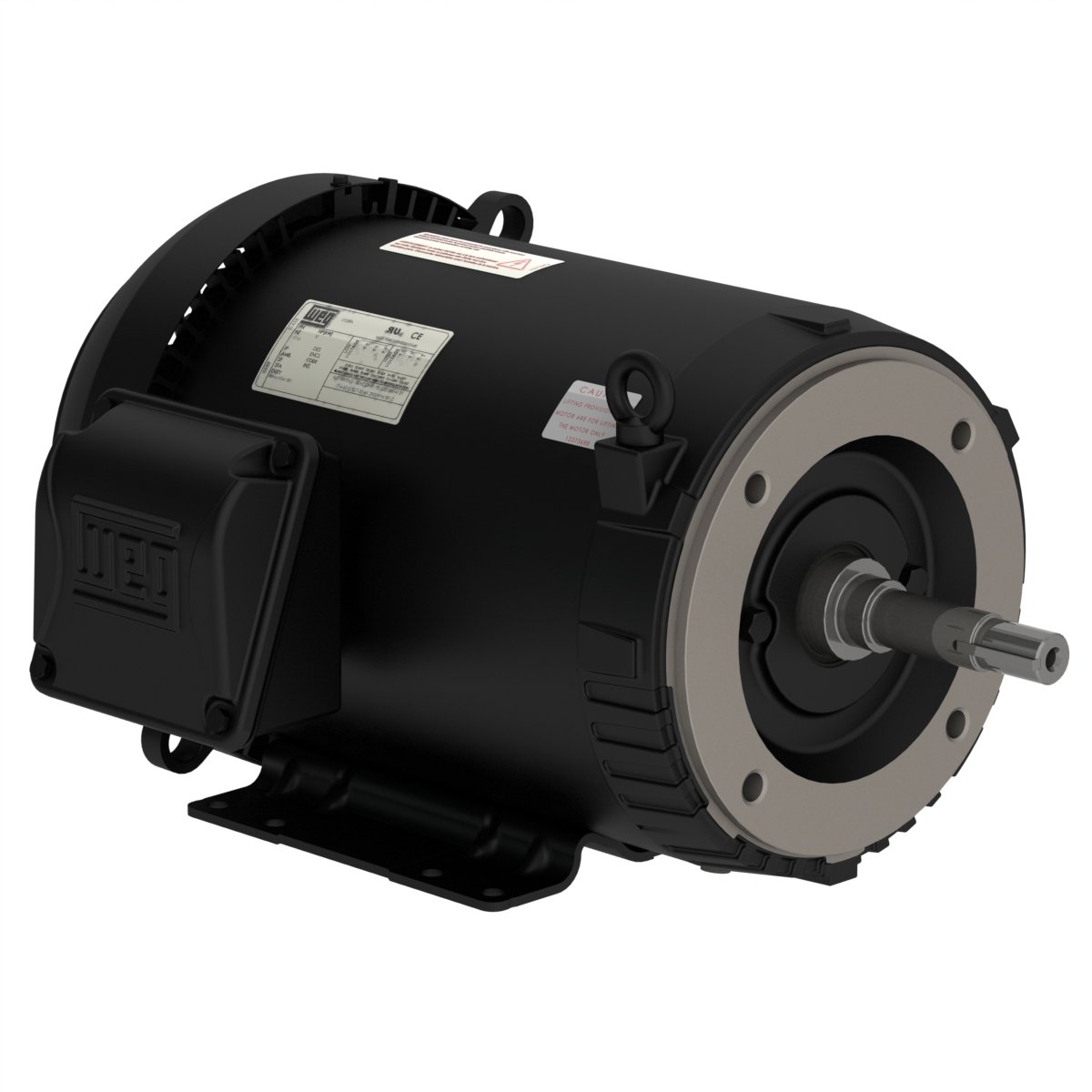

01036ET3H215JM-S WEG 10HP JM Close Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 01036ET3H215JM-S

01036ET3H215JM-S WEG 10HP JM Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01036ET3H215JM-S

Selected accessories will also be added to cart
$1,574.41 / Each
Quantity:
IC411 - TEFC, IP55, 213JM/215JM Frame, 575VAC 3-Phase 60Hz, 13312539, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Electric Motors

Frame213/5JM
Output10 HP (7.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3530 rpm
Slip1.94 %
Rated voltage575 V
Rated current9.20 A
L. R. Amperes69.0 A
LRC7.5x(Code H)
No load current3.01 A
Rated torque14.7 ft.lb
Locked rotor torque260 %
Breakdown torque300 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)0.7188 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?70.0 dB(A)
Approx. weight?169 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
89.5  90.2  90.2

Power factor

50%75%100%
0.80  0.88  0.91

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.377"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialRolled Steel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Close Coupled Pump
Horsepower
10HP
Enclosure
TEFC
Enclosure
TEFC
Input Voltage
575VAC
Frame
213JM/215JM
