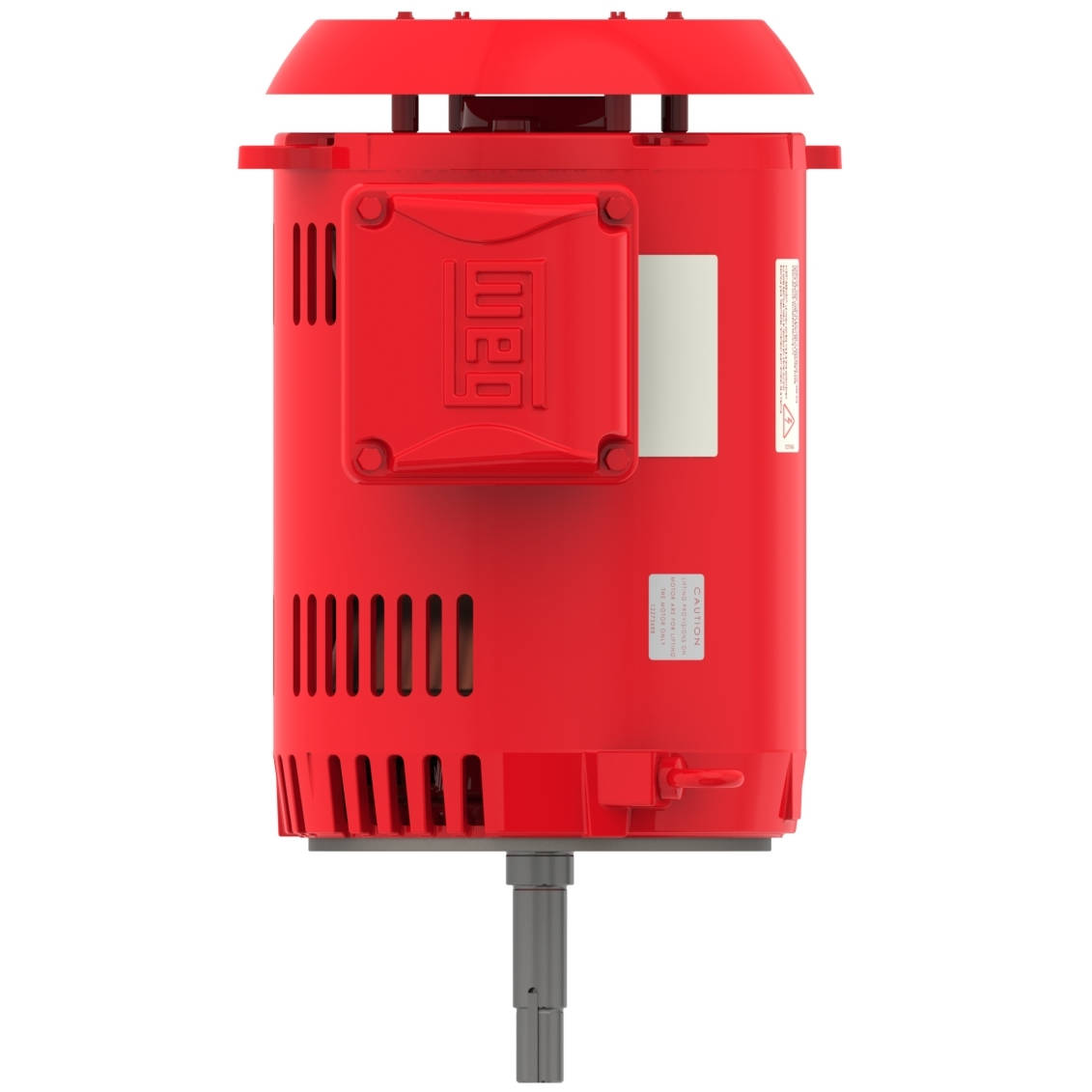

01036OP3HFP213JMV-S WEG 10HP JM Close-Coupled Fire Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 01036OP3HFP213JMV-S

01036OP3HFP213JMV-S WEG 10HP JM Close-Coupled Fire Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01036OP3HFP213JMV-S

Selected accessories will also be added to cart
$1,068.89 / Each
Quantity:
IC01 - ODP, 213JM/215JM Frame, 575VAC 60Hz 3 Phase, 13549539, High Efficiency, Footless, Vertical, Rolled Steel Frame

Electric Motors

Frame213/5JM
Output10 HP (7.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3530 rpm
Slip1.94 %
Rated voltage575 V
Rated current9.76 A
L. R. Amperes62.5 A
LRC6.4x(Code G)
No load current4.10 A
Rated torque14.9 ft.lb
Locked rotor torque180 %
Breakdown torque260 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.3816 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingW-6
Rotation?Both (CW and CCW)
Noise level?66.0 dB(A)
Approx. weight?108 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
87.5  88.5  88.5

Power factor

50%75%100%
0.72  0.83  0.87

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.377"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3002 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWith
Resilient BaseWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
10HP
Enclosure
ODP
Input Voltage
575VAC
Frame
213JM/215JM
Application
Fire Pump
