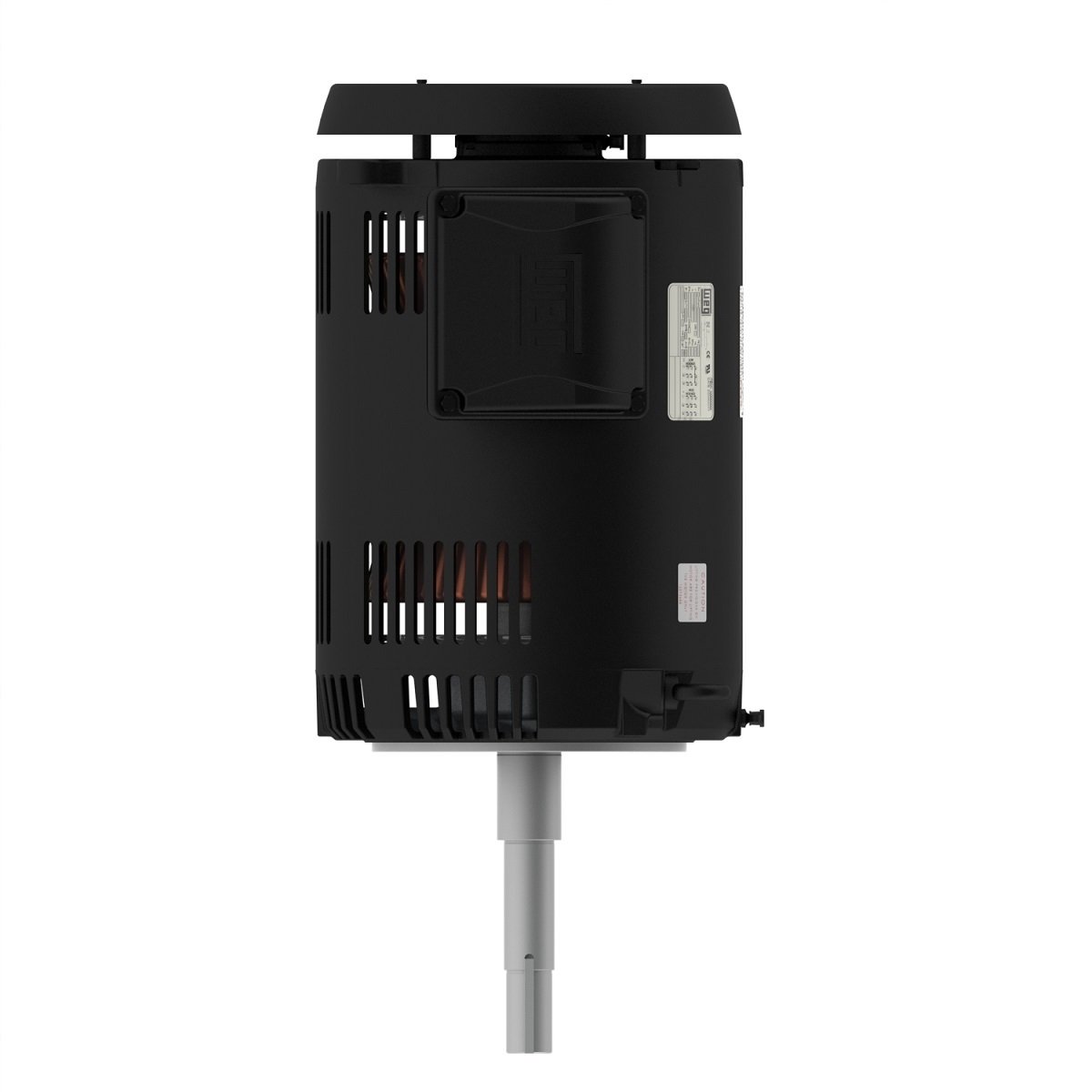

Motor/Control Division

Frame	213/5JP
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3535 rpm
Slip	1.81 %
Rated voltage	208-230/460 V
Rated current	26.5-24.0/12.0 A
L. R. Amperes	180-163/81.6 A
LRC	6.8x(Code H)
No load current	8.03-9.32/4.66 A
Rated torque	14.7 ft.lb
Locked rotor torque	200 %
Breakdown torque	280 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	0.4651 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	66.0 dB(A)
Approx. weight?	126 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.5	89.5

Power factor

50%	75%	100%
0.74	0.84	0.88

Frame	213/5JP
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2910 rpm
Slip	3.00 %
Rated voltage	190/380 V
Rated current	29.0/14.5 A
L. R. Amperes	157/78.3 A
LRC	5.4x(Code F)
No load current	9.15/4.58 A
Rated torque	17.8 ft.lb
Locked rotor torque	150 %
Breakdown torque	210 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.4651 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	64.0 dB(A)
Approx. weight?	126 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.4	88.6	86.5

Power factor

50%	75%	100%
0.80	0.88	0.91

Frame	213/5JP
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2930 rpm
Slip	2.33 %
Rated voltage	220/415 V
Rated current	25.1/13.3 A
L. R. Amperes	163/86.5 A
LRC	6.5x(Code G)
No load current	10.4/5.51 A
Rated torque	17.7 ft.lb
Locked rotor torque	180 %
Breakdown torque	250 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.4651 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	64.0 dB(A)
Approx. weight?	126 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.0	89.1	87.9

Power factor

50%	75%	100%
0.73	0.84	0.89

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.377"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	With
Resilient Base	Without
