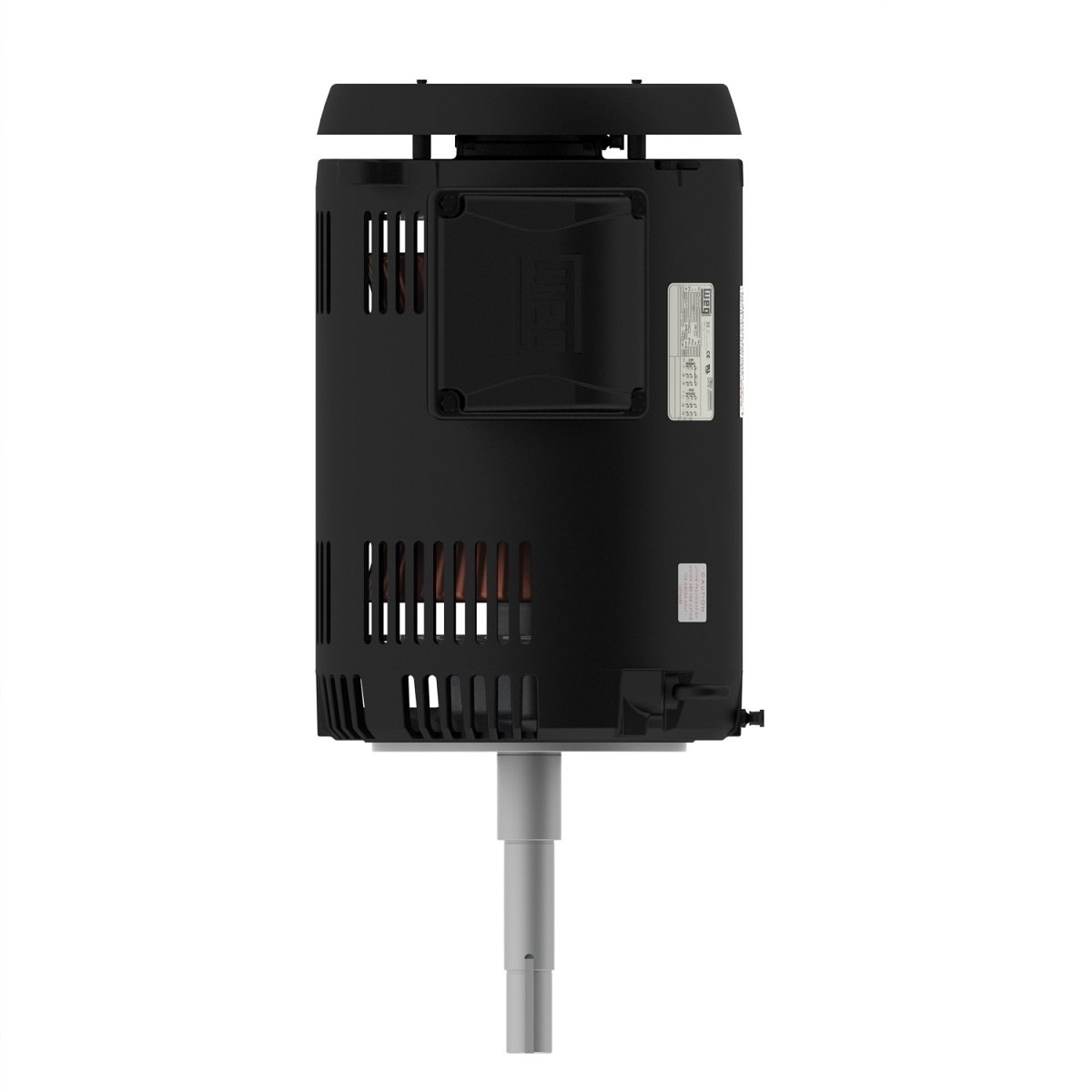

01036OT3H213JPV-S WEG 10HP JP Close Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 01036OT3H213JPV-S

01036OT3H213JPV-S WEG 10HP JP Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01036OT3H213JPV-S

Selected accessories will also be added to cart
$1,220.19 / Each
Quantity:
IC01 - ODP, 213JP/215JP Frame, 575VAC 3-Phase 60Hz, 13482979, Footless, Vertical Mount, Rolled Steel, NEMA Premium Efficiency

Electric Motors

Frame213/5JP
Output10 HP (7.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3535 rpm
Slip1.81 %
Rated voltage575 V
Rated current9.60 A
L. R. Amperes65.3 A
LRC6.8x(Code H)
No load current3.73 A
Rated torque14.7 ft.lb
Locked rotor torque200 %
Breakdown torque280 %
Locked rotor time19s (cold) 11s (hot)
Moment of inertia (J)0.4651 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingW-6
Rotation?Both (CW and CCW)
Noise level?66.0 dB(A)
Approx. weight?125 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.5  89.5  89.5

Power factor

50%75%100%
0.74  0.84  0.88

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.377"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWith
Resilient BaseWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Close Coupled Pump
Horsepower
10HP
Enclosure
ODP
Input Voltage
575VAC
Frame
213JP/215JP
