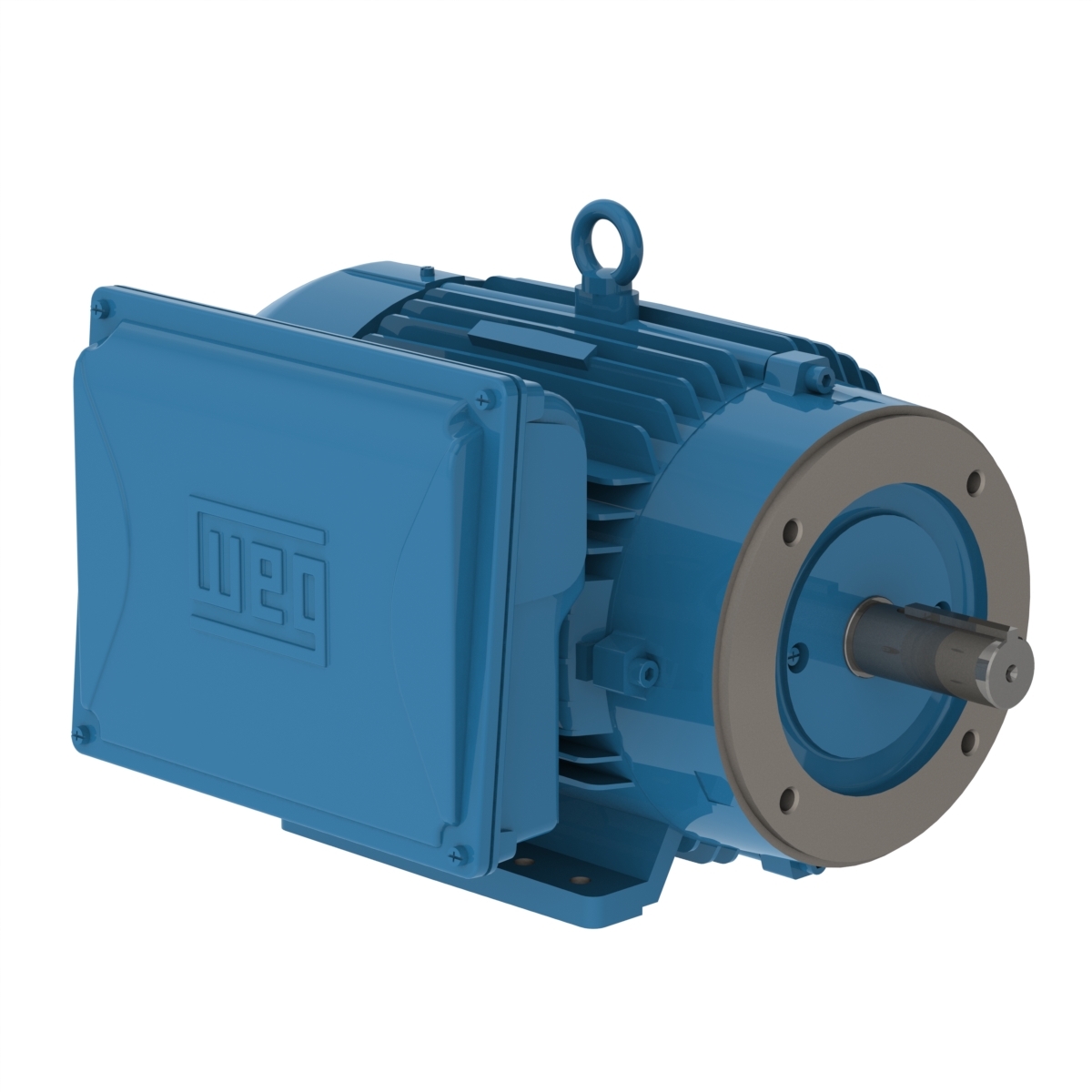

01218ES1EID215TC-W22 WEG 12.5HP Irrigation Duty Electric Motor, 1800 RPM
Enlarge Photo

Product ID: 01218ES1EID215TC-W22

01218ES1EID215TC-W22 WEG 12.5HP Irrigation Duty Electric Motor, 1800 RPM

MFG: WEG Electric Corporation
MFG Part Number: 01218ES1EID215TC-W22

Selected accessories will also be added to cart
$1,680.32 / Each
Quantity:
IC411 - TEFC, 213TC/5TC Frame, 208-230/460VAC 60Hz Single Phase, C-Face, Foot Mount, Cast Iron Frame, 14116415, 1-3/8" Shaft

Electric Motors

Frame213/5TC
Output12.5 HP (9.2 kW)
Number of Poles4
Frequency60 Hz
Rated speed1740 rpm
Slip3.33 %
Rated voltage208-230/460 V
Rated current54.0-54.4/27.2 A
L. R. Amperes432-435/218 A
LRC8.0x(Code K)
No load current23.3-27.0/13.5 A
Rated torque37.2 ft.lb
Locked rotor torque220 %
Breakdown torque240 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)1.29 sq.ft.lb
Insulation ClassH
Temperature rise125 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²63.0 dB(A)
Approx. weight³208 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
77.081.582.5

Power factor

50%75%100%
0.750.840.89

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialAluminum
Bearing capYes- Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector

 Loading...

Bearing details

 Drive EndNon Drive End
Bearing type6308 ZZ 6206 ZZ
SealingV'RingV'Ring
Lubrication interval--
Lubricant amount--
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
400 lb608 lb

 Loading...

Type
Electric Motor
Input Phase
Single Phase
Enclosure
TEFC
Speed
1800RPM
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Horsepower
12.5HP
Frame
213TC
Frame
215TC
