/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/General Purpose, TEFC, W22/01236ES1C215T-W22 WEG 12.5HP Electric Motor, 3600RPM

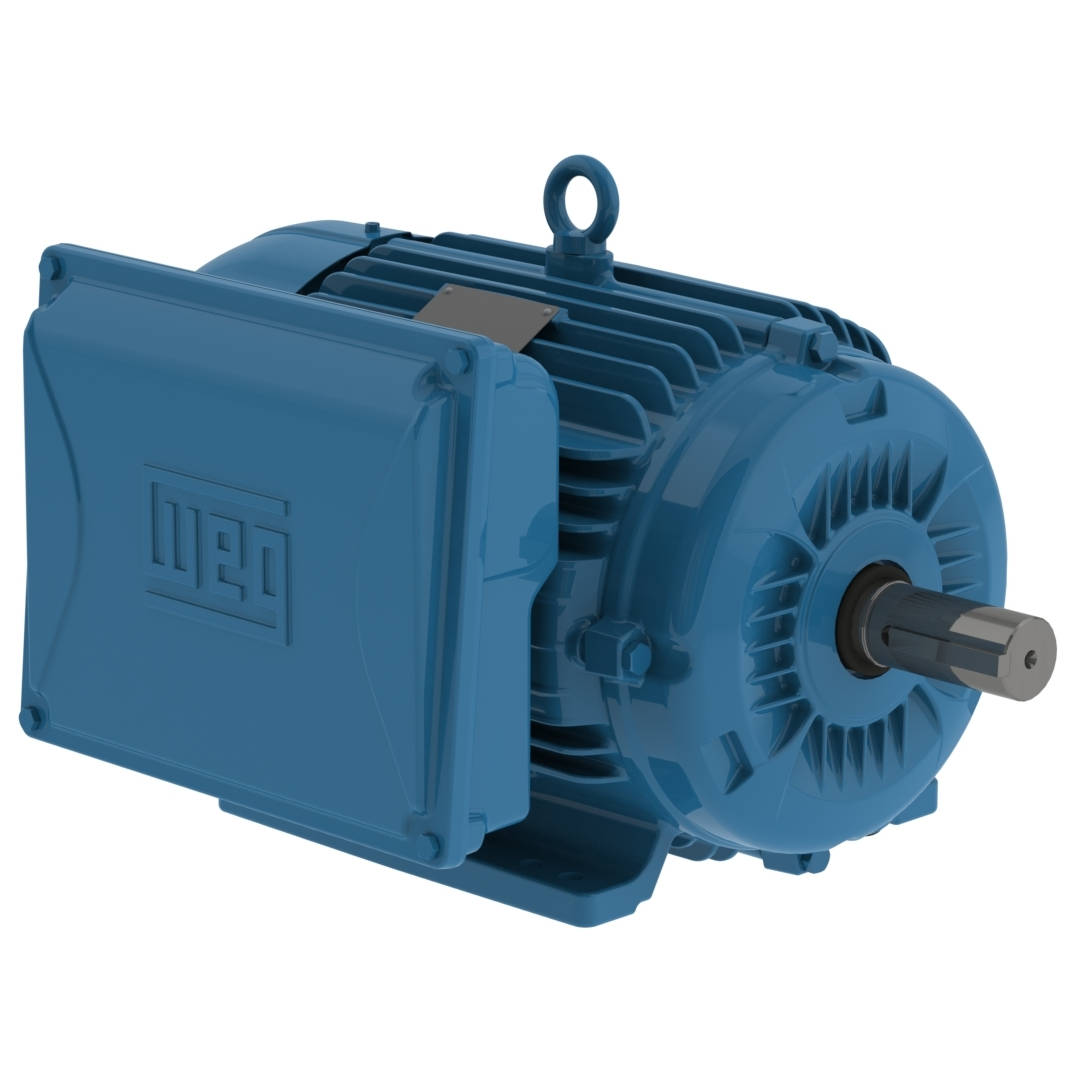

01236ES1C215T-W22 WEG 12.5HP Electric Motor, 3600RPM
Enlarge Photo

Product ID: 01236ES1C215T-W22

01236ES1C215T-W22 WEG 12.5HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01236ES1C215T-W22

Selected accessories will also be added to cart
$1,793.35 / Each
Quantity:
IC411 - TEFC, IP55, 213T/215T Frame, 208-230VAC 60Hz Single Phase, 14334401, Foot Mounted, Cast Iron Frame, 1-3/8" Keyed Shaft

Electric Motors

Frame213/5T
Output12.5 HP (9.2 kW)
Number of Poles2
Frequency60 Hz
Rated speed3510 rpm
Slip2.50 %
Rated voltage208-230 V
Rated current51.8-46.1 A
L. R. Amperes378-337 A
LRC7.3x(Code G)
No load current4.91-5.70 A
Rated torque18.7 ft.lb
Locked rotor torque210 %
Breakdown torque280 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.6763 sq.ft.lb
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²72.0 dB(A)
Approx. weight³183 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
86.088.088.5

Power factor

50%75%100%
0.980.980.98

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
TEFC
Horsepower
12.5HP
Frame
213T
Input Voltage
208VAC
Input Voltage
230VAC
Frame
215T
