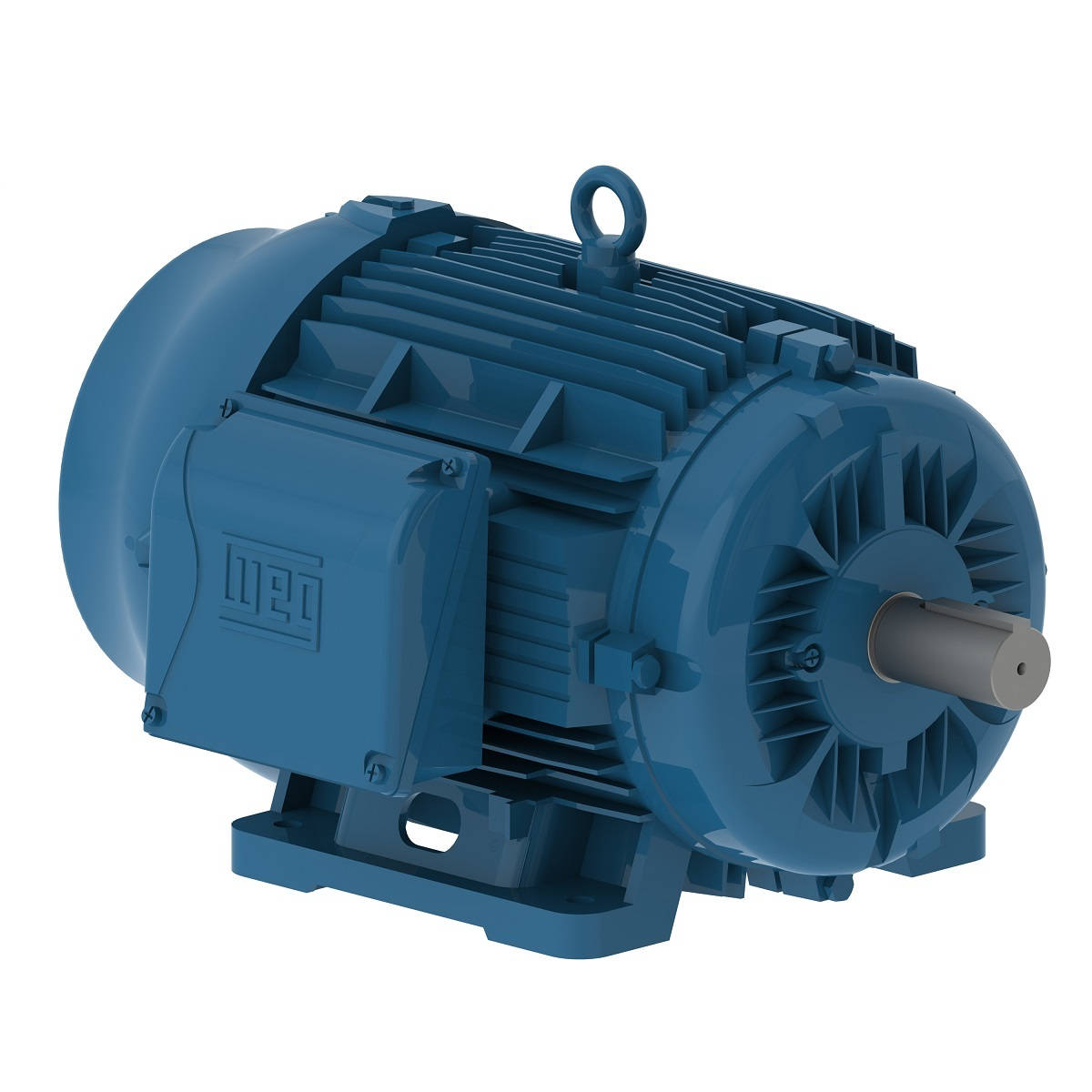

01518ET3E254T-W22 WEG 15HP Severe Duty Electric Motor, 1800RPM
Enlarge Photo

Product ID: 01518ET3E254T-W22

01518ET3E254T-W22 WEG 15HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 01518ET3E254T-W22

Selected accessories will also be added to cart
$1,644.72 / Each
Quantity:
IC411 - TEFC, IP55, 254T/256T Frame, 230/460VAC 60Hz 3 Phase, 11723921, TEFC-NEMA Premium, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft

Electric Motors

Frame254/6T
Output15 HP (11 kW)
Number of Poles4
Frequency60 Hz
Rated speed1765 rpm
Slip1.94 %
Rated voltage208-230/460 V
Rated current39.8-36.0/18.0 A
L. R. Amperes255-230/115 A
LRC6.4x(Code G)
No load current13.8-16.0/8.00 A
Rated torque44.0 ft.lb
Locked rotor torque229 %
Breakdown torque270 %
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)2.62 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?64.0 dB(A)
Approx. weight?312 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.7  92.4

Power factor

50%75%100%
0.68  0.78  0.83
Frame254/6T
Output10 HP (7.5 kW)
Number of Poles4
Frequency50 Hz
Rated speed1475 rpm
Slip1.67 %
Rated voltage380 V
Rated current15.2 A
L. R. Amperes97.3 A
LRC7.0x(Code J)
No load current7.20 A
Rated torque35.1 ft.lb
Locked rotor torque229 %
Breakdown torque310 %
Locked rotor time39s (cold) 22s (hot)
Moment of inertia (J)2.62 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?61.0 dB(A)
Approx. weight?312 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.8  90.3  90.4

Power factor

50%75%100%
0.65  0.77  0.83
Frame254/6T
Output10 HP (7.5 kW)
Number of Poles4
Frequency50 Hz
Rated speed1475 rpm
Slip1.67 %
Rated voltage400 V
Rated current14.8 A
L. R. Amperes104 A
LRC5.4x(Code F)
No load current7.60 A
Rated torque35.1 ft.lb
Locked rotor torque260 %
Breakdown torque350 %
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)2.62 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?61.0 dB(A)
Approx. weight?312 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.6  90.3  90.6

Power factor

50%75%100%
0.62  0.74  0.81
Frame254/6T
Output10 HP (7.5 kW)
Number of Poles4
Frequency50 Hz
Rated speed1480 rpm
Slip1.33 %
Rated voltage415 V
Rated current14.5 A
L. R. Amperes109 A
LRC6.4x(Code G)
No load current7.96 A
Rated torque35.0 ft.lb
Locked rotor torque290 %
Breakdown torque370 %
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)2.62 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?61.0 dB(A)
Approx. weight?312 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.3  90.3  90.8

Power factor

50%75%100%
0.59  0.72  0.79
Frame254/6T
Output15 HP (11 kW)
Number of Poles4
Frequency50 Hz
Rated speed1455 rpm
Slip3.00 %
Rated voltage380 V
Rated current21.5 A
L. R. Amperes105 A
LRC6.4x(Code G)
No load current7.90 A
Rated torque53.4 ft.lb
Locked rotor torque170 %
Breakdown torque210 %
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)2.62 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?61.0 dB(A)
Approx. weight?312 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  90.2  90.2

Power factor

50%75%100%
0.74  0.82  0.86
Frame254/6T
Output15 HP (11 kW)
Number of Poles4
Frequency50 Hz
Rated speed1460 rpm
Slip2.67 %
Rated voltage400 V
Rated current20.5 A
L. R. Amperes111 A
LRC6.4x(Code G)
No load current8.40 A
Rated torque53.2 ft.lb
Locked rotor torque200 %
Breakdown torque229 %
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)2.62 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?61.0 dB(A)
Approx. weight?312 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.0  91.0

Power factor

50%75%100%
0.71  0.80  0.85
Frame254/6T
Output15 HP (11 kW)
Number of Poles4
Frequency50 Hz
Rated speed1460 rpm
Slip2.67 %
Rated voltage415 V
Rated current20.0 A
L. R. Amperes118 A
LRC6.4x(Code G)
No load current8.80 A
Rated torque53.2 ft.lb
Locked rotor torque210 %
Breakdown torque250 %
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)2.62 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?61.0 dB(A)
Approx. weight?312 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.0  91.0

Power factor

50%75%100%
0.69  0.79  0.84
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Application
Severe Duty
Horsepower
15HP
Enclosure
TEFC
Enclosure
TEFC
Frame
254T
Frame
256T
