/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Farm Duty/Grain Dryer/01536AP3EGD215TZ-S WEG 10/15HP Grain Dryer Electric Motor, 3600RPM

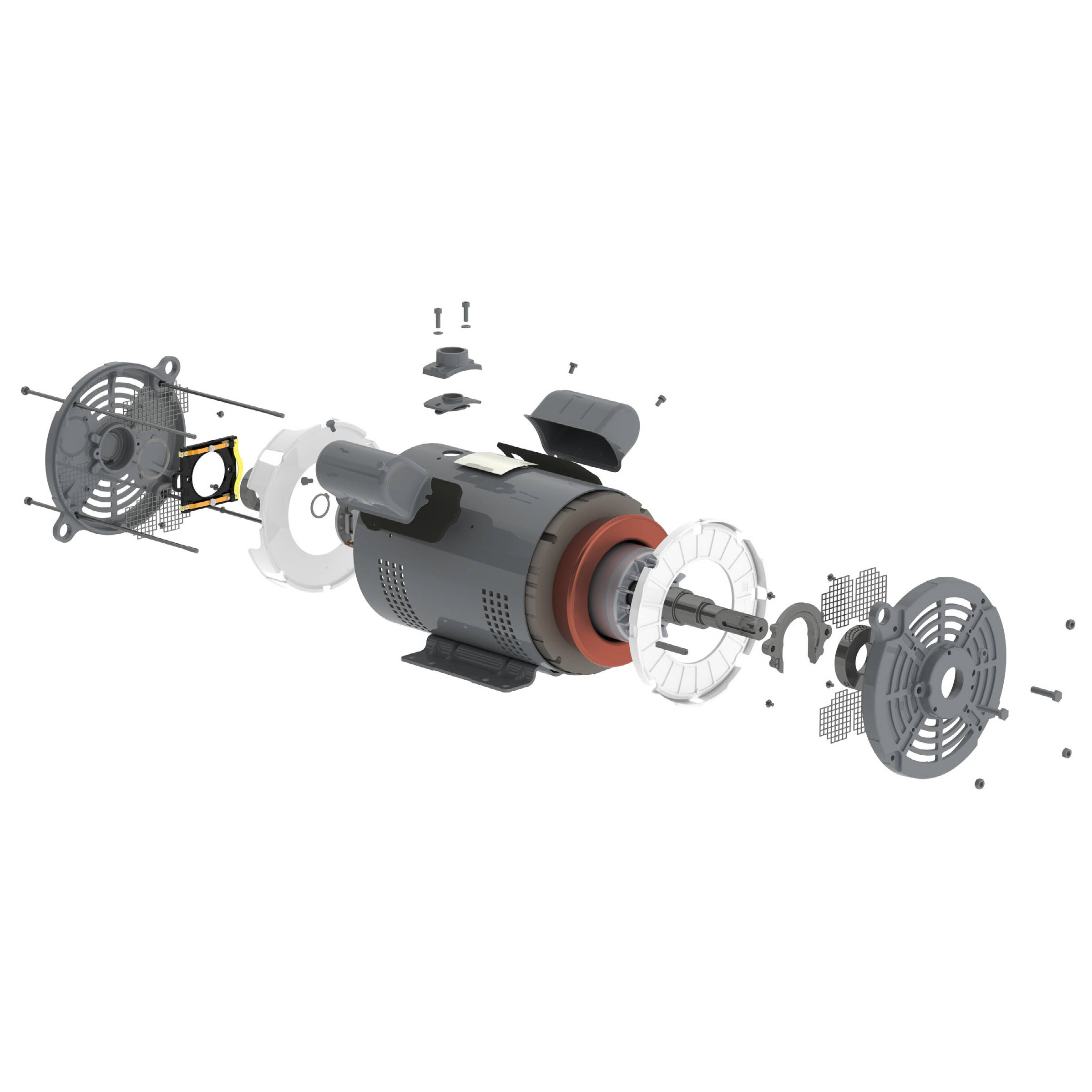

Click Image to Expand

Product ID: 01536AP3EGD215TZ-S

01536AP3EGD215TZ-S WEG 10/15HP Grain Dryer Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01536AP3EGD215TZ-S

Selected accessories will also be added to cart
$1,253.12 / Each
Quantity:
213TZ/215TZ Frame, 208-230/460VAC 60Hz 3-Phase, 13667477, IC410-TEAO, Foot Mounted, Rolled Steel, 1-1/8" Shaft

Electric Motors

Frame213/5TZ
Output10 HP (7.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3550 rpm
Slip1.39 %
Rated voltage230-460 V
Rated current24.4-12.2 A
L. R. Amperes178-89.1 A
LRC7.3x(Code H)
No load current12.4-6.20 A
Rated torque14.6 ft.lb
Locked rotor torque350 %
Breakdown torque459 %
Locked rotor time12s (cold) 7s (hot)
Moment of inertia (J)0.6787 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC410 - TEAO
MountingF-3
Rotation?CCW
Noise level?70.0 dB(A)
Approx. weight?139 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.9  92.3  92.5

Power factor

50%75%100%
0.63  0.76  0.82

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
Painting

Grounding LugsSuperior
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Winding thermal protectionThermostat - 2 wires 1 per phase 155?C
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout

Bearing details

 Drive EndNon Drive End
Bearing type6208 ZZ  6206 ZZ
SealingV'Ring V'Ring
Lubrication interval- -
Lubricant amount- -
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
309 lb 448 lb
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Enclosure
TEAO
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Application
Grain Dryer
Frame
213TZ
Frame
215TZ
Horsepower
10HP
Horsepower
15HP
