Motor/Control Division

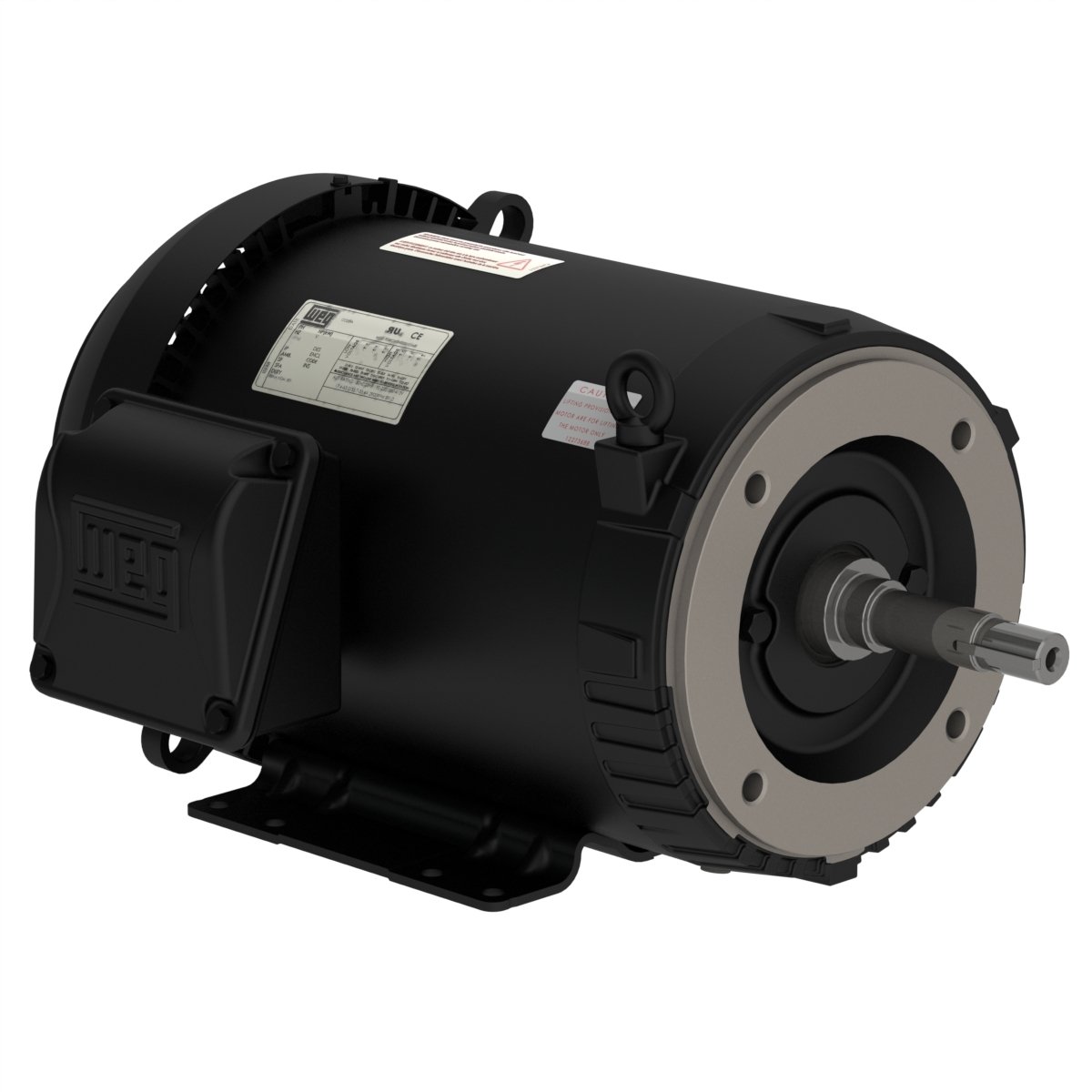

Frame	213/5JM
Output	15 HP (11 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3520 rpm
Slip	2.22 %
Rated voltage	208-230/460 V
Rated current	37.6-34.0/17.0 A
L. R. Amperes	308-279/139 A
LRC	8.2x(Code J)
No load current	10.7-12.4/6.22 A
Rated torque	22.1 ft.lb
Locked rotor torque	280 %
Breakdown torque	330 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	0.6341 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	70.0 dB(A)
Approx. weight?	166 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	91.0	91.0

Power factor

50%	75%	100%
0.76	0.85	0.89

Frame	213/5JM
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2935 rpm
Slip	2.17 %
Rated voltage	190/380 V
Rated current	28.8/14.4 A
L. R. Amperes	251/125 A
LRC	8.7x(Code K)
No load current	12.2/6.11 A
Rated torque	17.7 ft.lb
Locked rotor torque	320 %
Breakdown torque	370 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	0.6341 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	67.0 dB(A)
Approx. weight?	166 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.5	91.4	91.1

Power factor

50%	75%	100%
0.71	0.82	0.87

Frame	213/5JM
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2945 rpm
Slip	1.83 %
Rated voltage	220/415 V
Rated current	26.2/13.9 A
L. R. Amperes	254/135 A
LRC	9.7x(Code L)
No load current	13.8/7.34 A
Rated torque	17.6 ft.lb
Locked rotor torque	380 %
Breakdown torque	450 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.6341 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	67.0 dB(A)
Approx. weight?	166 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.6	91.2	91.3

Power factor

50%	75%	100%
0.62	0.75	0.82

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.377"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
