01536OP3HFP215JPV-S WEG 15HP JP Close-Coupled Fire Pump Electric Motor, 3600RPM

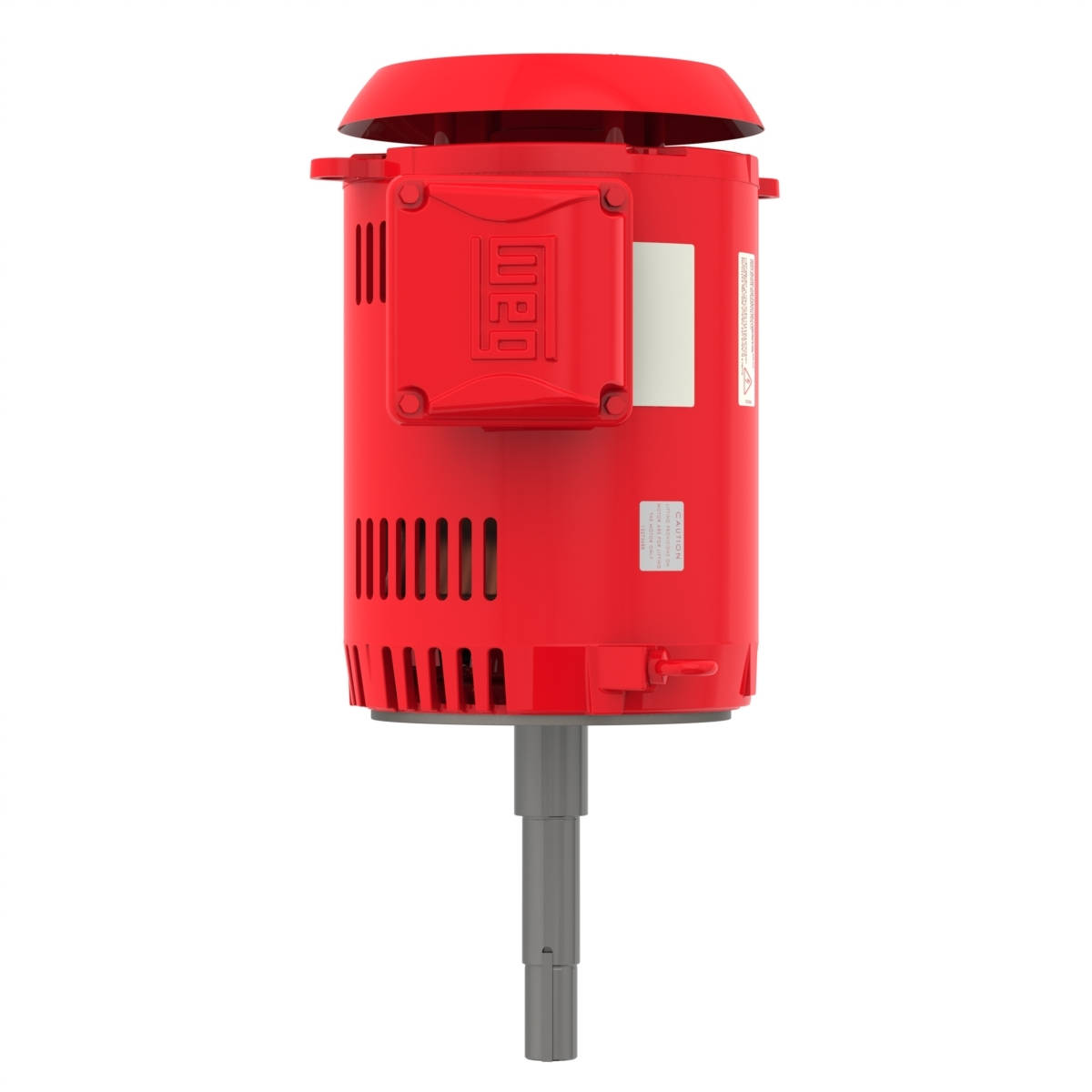

Enlarge Photo

Product ID: 01536OP3HFP215JPV-S

01536OP3HFP215JPV-S WEG 15HP JP Close-Coupled Fire Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01536OP3HFP215JPV-S

Selected accessories will also be added to cart
$1,439.13 / Each
Quantity:
IC01 - ODP, 213JP/215JP Frame, 575VAC 60Hz 3 Phase, 13550932, High Efficiency, Footless, Rolled Steel, Vertical Mount

Electric Motors

Frame213/5JP
Output15 HP (11 kW)
Number of Poles2
Frequency60 Hz
Rated speed3525 rpm
Slip2.08 %
Rated voltage575 V
Rated current14.0 A
L. R. Amperes91.0 A
LRC6.5x(Code G)
No load current5.89 A
Rated torque22.3 ft.lb
Locked rotor torque190 %
Breakdown torque260 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.4651 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingW-6
Rotation?Both (CW and CCW)
Noise level?66.0 dB(A)
Approx. weight?126 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.5  89.5  89.5

Power factor

50%75%100%
0.73  0.83  0.88

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.377"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3002 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWith
Resilient BaseWithout
Overload protector (phenolic)Without overload protector

Bearing details

 Drive EndNon Drive End
Bearing type6209 ZZ  6206 ZZ
SealingWithout Bearing Seal Without Bearing Seal
Lubrication interval- -
Lubricant amount- -
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
264 lb 391 lb

Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
15HP
Enclosure
ODP
Input Voltage
575VAC
Frame
213JP/215JP
Application
Fire Pump
