/Products/Electric Motors/3 Phase Stainless Steel/WEG 3-Phase Stainless Steel Electric Motors/HydroWash/Foot Mount, C-Face/02018ET3EHW256TC-S WEG 20HP Hydrowash Electric Motor, 1800RPM
Click Image to Expand

Product ID: 02018ET3EHW256TC-S

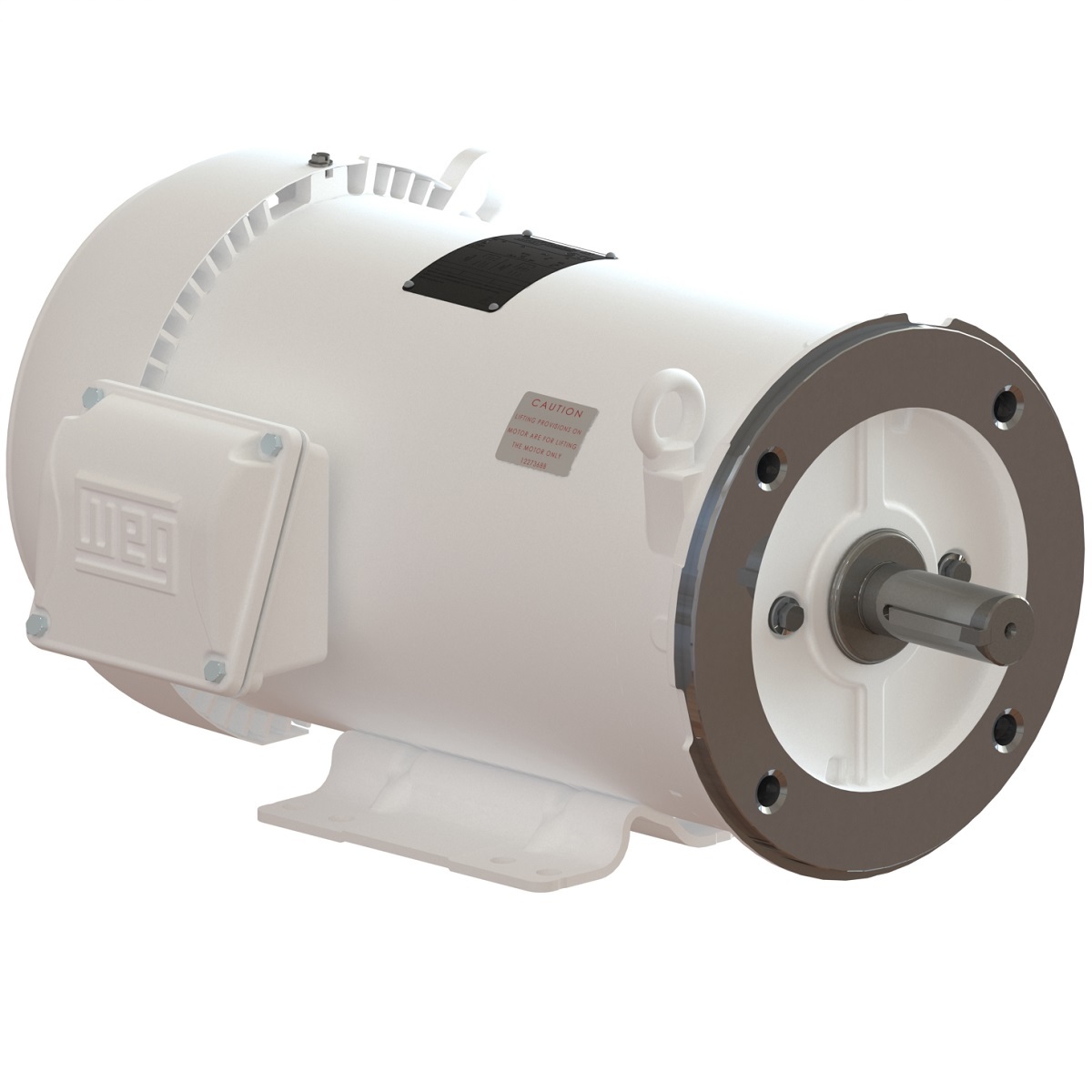

02018ET3EHW256TC-S WEG 20HP Hydrowash Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 02018ET3EHW256TC-S

Selected accessories will also be added to cart
$5,188.70 / Each
Quantity:
IC411-TEFC, IP56, 254TC/256TC Frame, 230/460VAC, 60Hz, 3 Phase
Accessories
Select any of the accessories below to purchase them with this inventory item:

Electric Motors

Frame254/6TC
Output20 HP (15 kW)
Number of Poles4
Frequency60 Hz
Rated speed1765 rpm
Slip1.94 %
Rated voltage230/460 V
Rated current49.4/24.7 A
L. R. Amperes331/165 A
LRC6.7x(Code H)
No load current22.2/11.1 A
Rated torque8.22 kgfm
Locked rotor torque270 %
Breakdown torque300 %
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)0.1113 kgm²
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP56
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²68.0 dB(A)
Approx. weight³<113 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.7 92.4 93.0

Power factor

50%75%100%
0.66 0.77 0.82
Frame254/6TC
Output15 HP (11 kW)
Number of Poles4
Frequency50 Hz
Rated speed1470 rpm
Slip2.00 %
Rated voltage190/380 V
Rated current44.4/22.2 A
L. R. Amperes329/164 A
LRC7.4x(Code J)
No load current21.9/10.9 A
Rated torque7.41 kgfm
Locked rotor torque270 %
Breakdown torque320 %
Locked rotor time0s (cold) 0s (hot)
Moment of inertia (J)0.1113 kgm²
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP56
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²65.0 dB(A)
Approx. weight³<113 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.6 92.2 91.8

Power factor

50%75%100%
0.63 0.75 0.82
Frame254/6TC
Output15 HP (11 kW)
Number of Poles4
Frequency50 Hz
Rated speed1475 rpm
Slip1.67 %
Rated voltage220/415 V
Rated current41.3/21.9 A
L. R. Amperes330/175 A
LRC8.0x(Code K)
No load current22.5/11.9 A
Rated torque7.38 kgfm
Locked rotor torque310 %
Breakdown torque360 %
Locked rotor time0s (cold) 0s (hot)
Moment of inertia (J)0.1113 kgm²
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP56
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²65.0 dB(A)
Approx. weight³<113 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.1 92.1 91.9

Power factor

50%75%100%
0.58 0.71 0.79

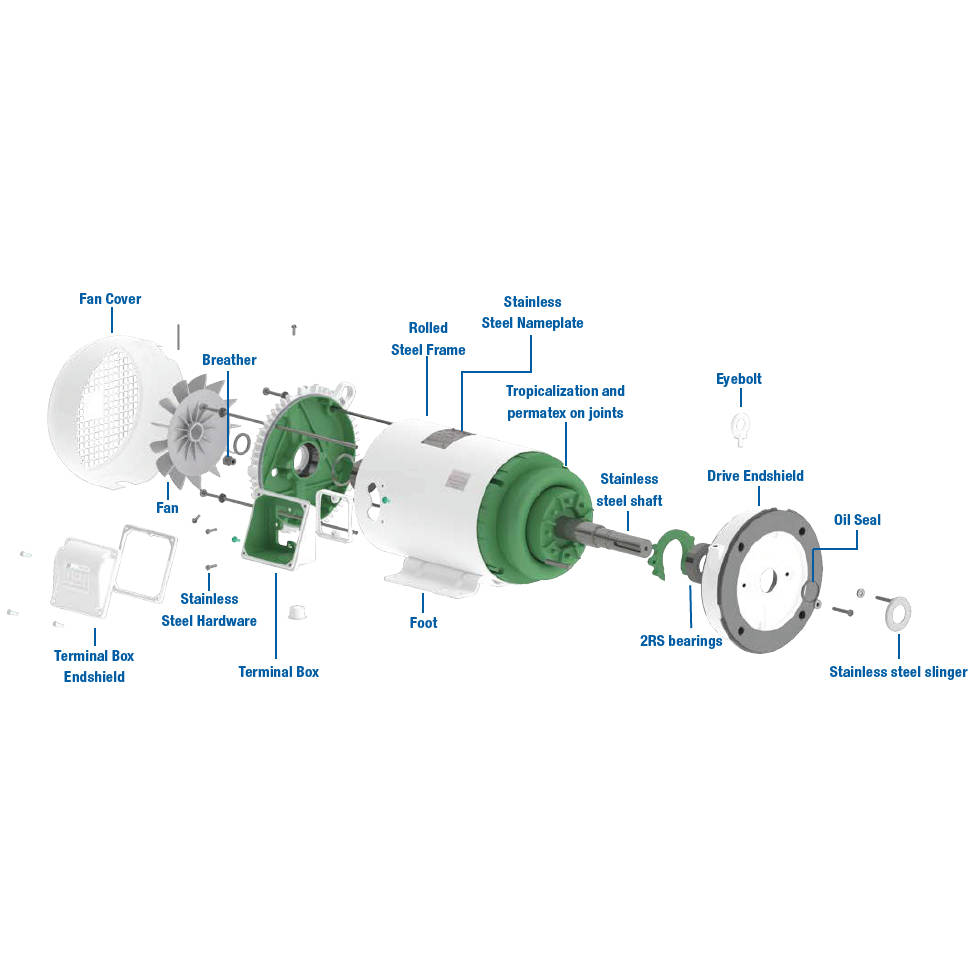

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1 1/4"
Terminal BlockWithout
Shaft MaterialAISI 304 Stainless Steel
Painting04501 205E
Grounding LugsSuperior
Fan Cover materialSteel
Tropicalized PaintingComplete (200h)
Joints SealPermatex
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialStainless Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Speed
1800RPM
Horsepower
20HP
Input Phase
3-Phase
Enclosure
TEFC
Enclosure
TEFC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
254TC/256TC
