/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Air Handling/Cooling Tower/TEFC, F-2 Mounting/07512ET3ECT405T-W22 WEG 75HP Cooling Tower Electric Motor, 1200RPM

Product ID: 07512ET3ECT405T-W22

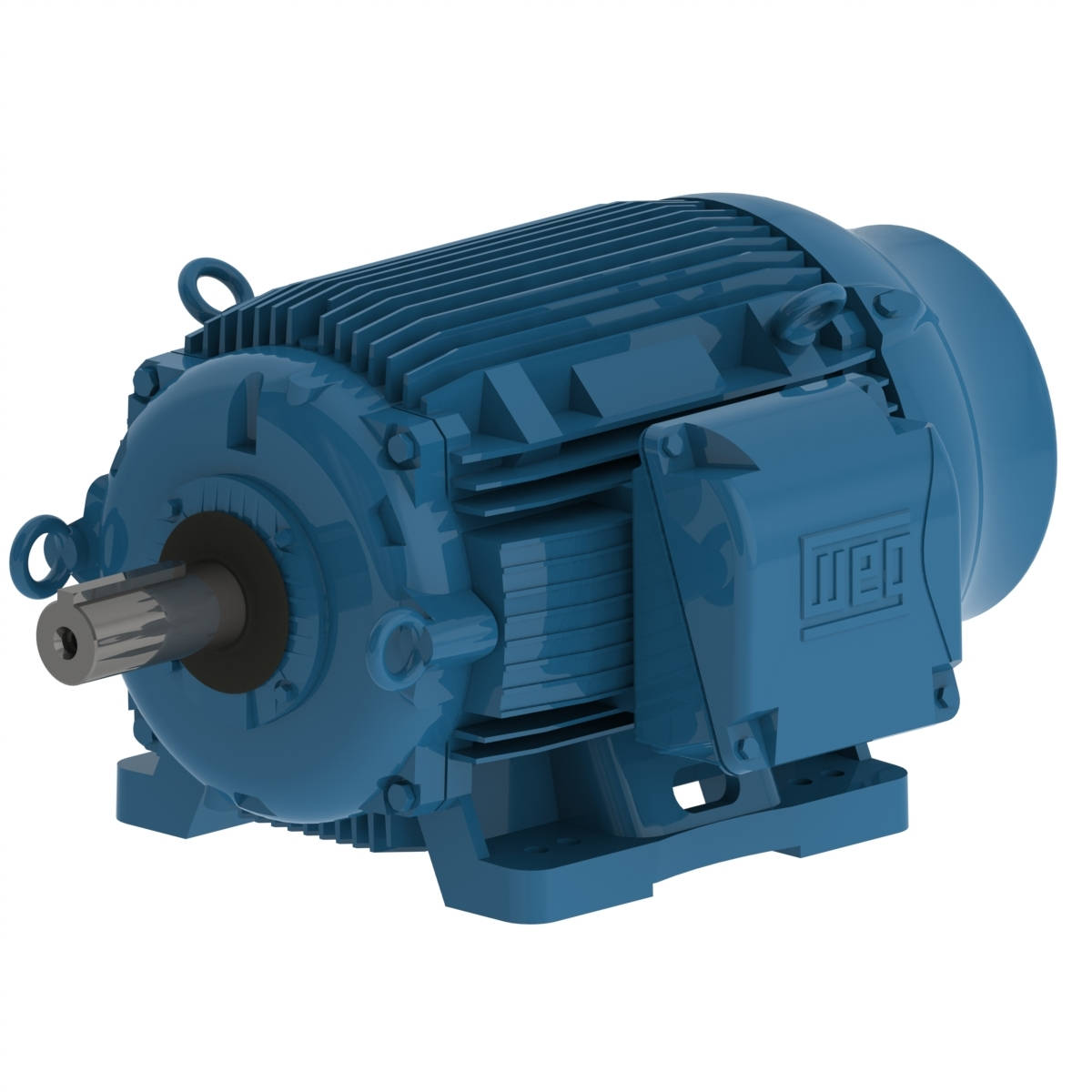

07512ET3ECT405T-W22 WEG 75HP Cooling Tower Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 07512ET3ECT405T-W22

Selected accessories will also be added to cart

$12,127.14 / Each

Quantity:

IC411 - TEFC, IP55, 404T/405T Frame, 230/460/380VAC 60Hz 3 Phase, 11976619, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, F-2 Mounting, 2-7/8" Keyed Shaft

Electric Motors

Frame	404/5T
Output	75 HP (55 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1184 rpm
Slip	1.33 %
Rated voltage	230/460 V
Rated current	170/84.9 A
L. R. Amperes	1087/543 A
LRC	6.4x(Code G)
No load current	60.0/30.0 A
Rated torque	333 ft.lb
Locked rotor torque	229 %
Breakdown torque	229 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	40.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	1216 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.1	94.5	94.5

Power factor

50%	75%	100%
0.74	0.83	0.86

Frame	404/5T
Output	60 HP (45 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	985 rpm
Slip	1.50 %
Rated voltage	380 V
Rated current	85.5 A
L. R. Amperes	547 A
LRC	6.4x(Code G)
No load current	29.7 A
Rated torque	320 ft.lb
Locked rotor torque	200 %
Breakdown torque	240 %
Locked rotor time	61s (cold) 34s (hot)

Moment of inertia (J)	40.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	1216 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.5	94.0	94.1

Power factor

50%	75%	100%
0.66	0.79	0.85

Frame	404/5T
Output	60 HP (45 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	985 rpm
Slip	1.50 %
Rated voltage	400 V
Rated current	83.2 A
L. R. Amperes	574 A
LRC	6.9x(Code H)
No load current	31.8 A
Rated torque	320 ft.lb
Locked rotor torque	240 %
Breakdown torque	270 %
Locked rotor time	57s (cold) 32s (hot)

Moment of inertia (J)	40.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	1216 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.5	94.0	94.1

Power factor

50%	75%	100%
0.62	0.75	0.83

Frame	404/5T
Output	60 HP (45 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	985 rpm
Slip	1.50 %
Rated voltage	415 V
Rated current	82.1 A
L. R. Amperes	599 A
LRC	7.3x(Code J)
No load current	33.5 A
Rated torque	320 ft.lb
Locked rotor torque	270 %
Breakdown torque	290 %
Locked rotor time	54s (cold) 30s (hot)

Moment of inertia (J)	40.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	1216 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.5	94.0	94.1

Power factor

50%	75%	100%
0.60	0.74	0.81

Frame	404/5T
Output	75 HP (55 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	978 rpm
Slip	2.20 %
Rated voltage	380 V
Rated current	104 A
L. R. Amperes	541 A
LRC	5.2x(Code E)
No load current	29.7 A
Rated torque	403 ft.lb
Locked rotor torque	170 %
Breakdown torque	180 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	40.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	1216 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.8	92.2	92.4

Power factor

50%	75%	100%
0.79	0.85	0.87

Frame	404/5T
Output	75 HP (55 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	981 rpm
Slip	1.90 %
Rated voltage	400 V
Rated current	99.3 A
L. R. Amperes	566 A
LRC	5.7x(Code F)
No load current	31.8 A
Rated torque	401 ft.lb
Locked rotor torque	190 %
Breakdown torque	200 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	40.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	1216 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	92.8	93.0

Power factor

50%	75%	100%
0.76	0.84	0.86

Frame	404/5T
Output	75 HP (55 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	983 rpm
Slip	1.70 %
Rated voltage	415 V
Rated current	95.7 A
L. R. Amperes	593 A
LRC	6.2x(Code G)
No load current	33.5 A
Rated torque	401 ft.lb
Locked rotor torque	210 %
Breakdown torque	220 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	40.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	1216 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	92.8	93.0

Power factor

50%	75%	100%
0.74	0.83	0.86

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Space Heater Voltage	110-127/200-240 V
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 4140 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Complete (200h)
Joints Seal	Permatex
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
