/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Air Handling/Cooling Tower/07518ET3HCT365T-W22 WEG 75HP Cooling Tower Electric Motor, 1800RPM

Product ID: 07518ET3HCT365T-W22

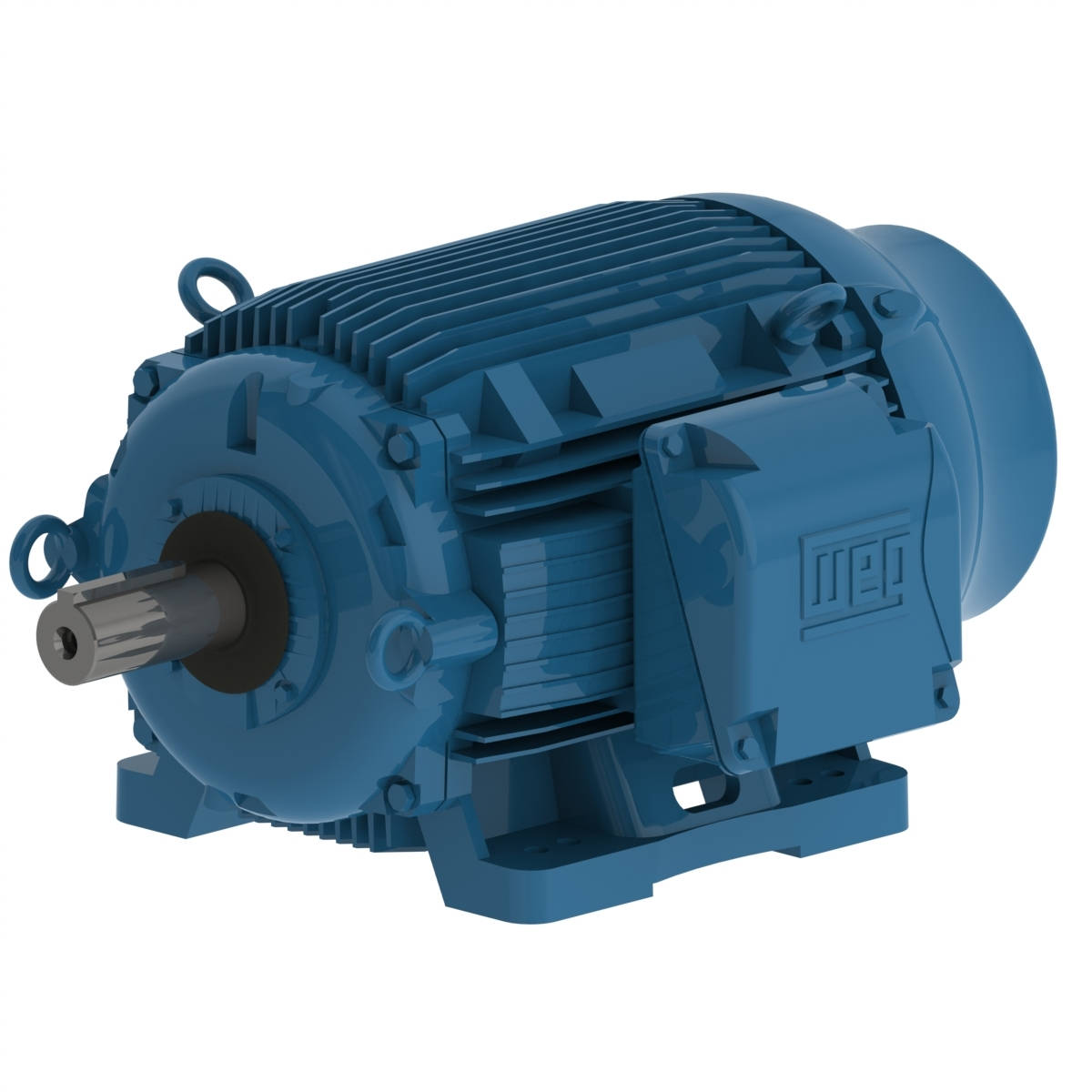

07518ET3HCT365T-W22 WEG 75HP Cooling Tower Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 07518ET3HCT365T-W22

Selected accessories will also be added to cart

$8,832.36 / Each

Quantity:

IC411 - TEFC, IP55, 364T/365T Frame, 575VAC 60Hz 3 Phase, 14014910, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, F-2 Mounting, 2-3/8" Keyed Shaft

Electric Motors

Frame	364/5T
Output	75 HP (55 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1780 rpm
Slip	1.11 %
Rated voltage	575 V
Rated current	69.8 A
L. R. Amperes	446 A
LRC	6.4x(Code G)
No load current	26.4 A
Rated torque	221 ft.lb
Locked rotor torque	240 %
Breakdown torque	260 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	23.3 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	937 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	95.0	95.4

Power factor

50%	75%	100%
0.68	0.78	0.83

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Space Heater Voltage	110-127/200-240 V
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Complete (200h)
Joints Seal	Permatex
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	6
