/Products/Electric Motors/3 Phase/Leeson/TENV, Rigid Base/092015.00 Leeson 0.17HP Electric Motor, 1800RPM
Click Image to Expand

Product ID: 092015.00

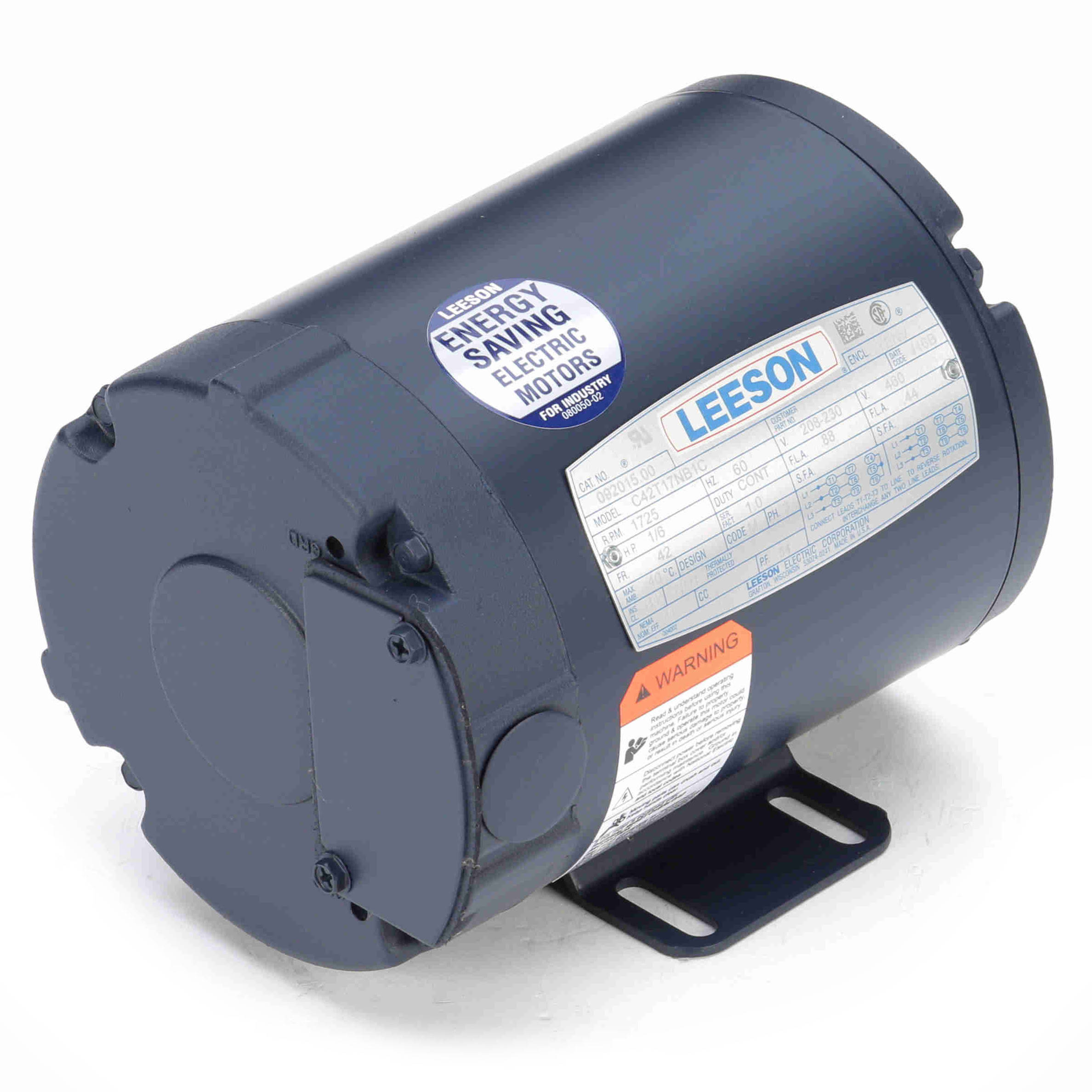

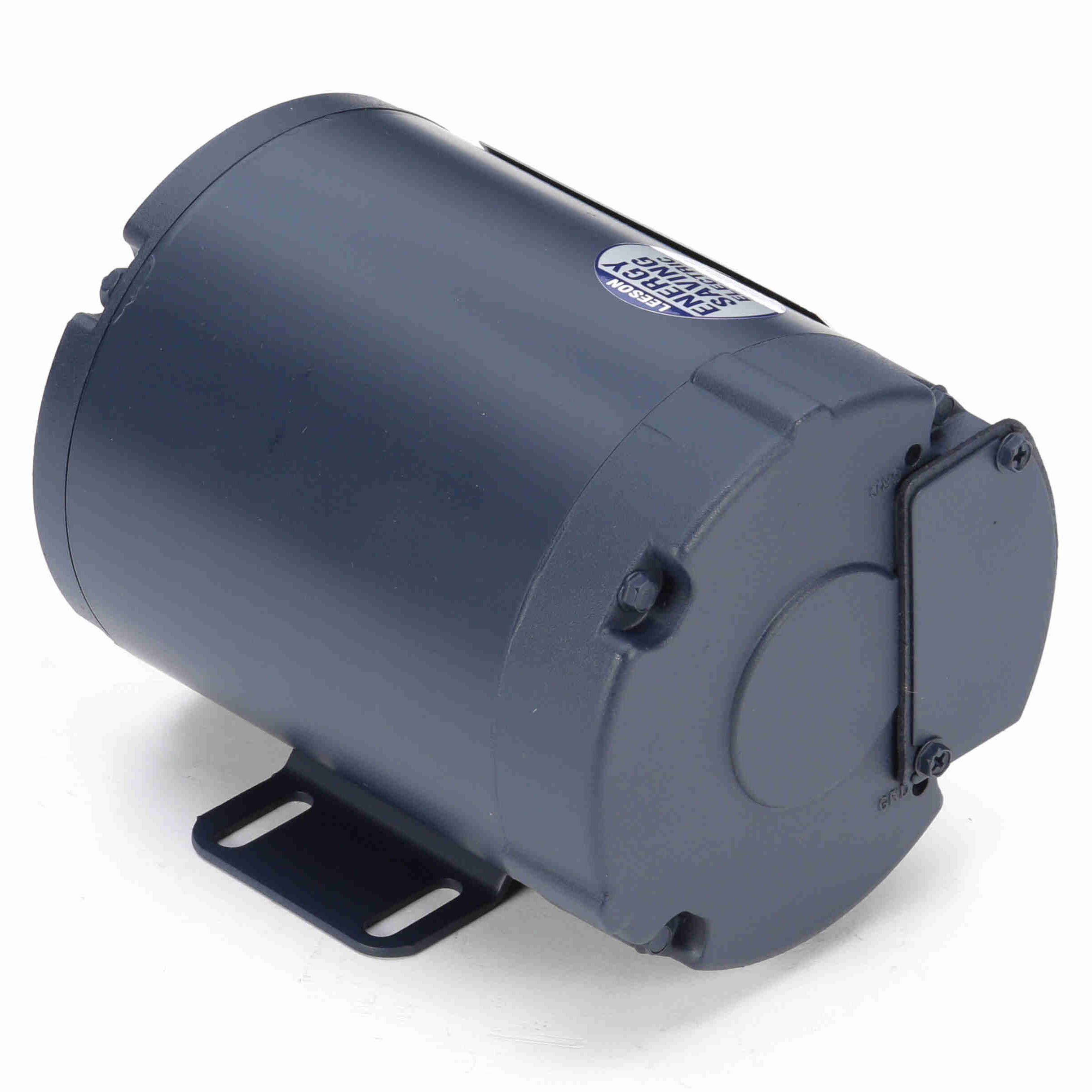

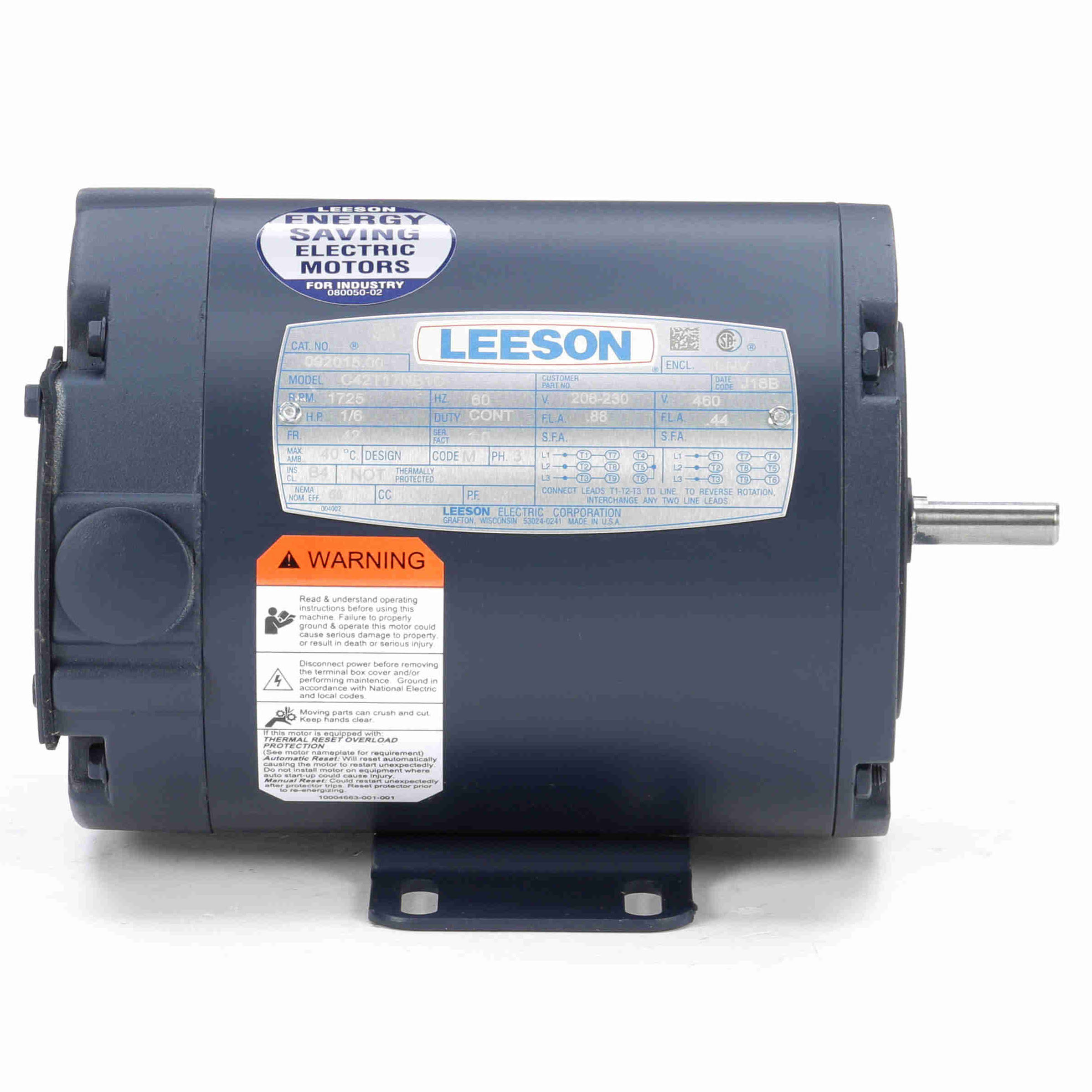

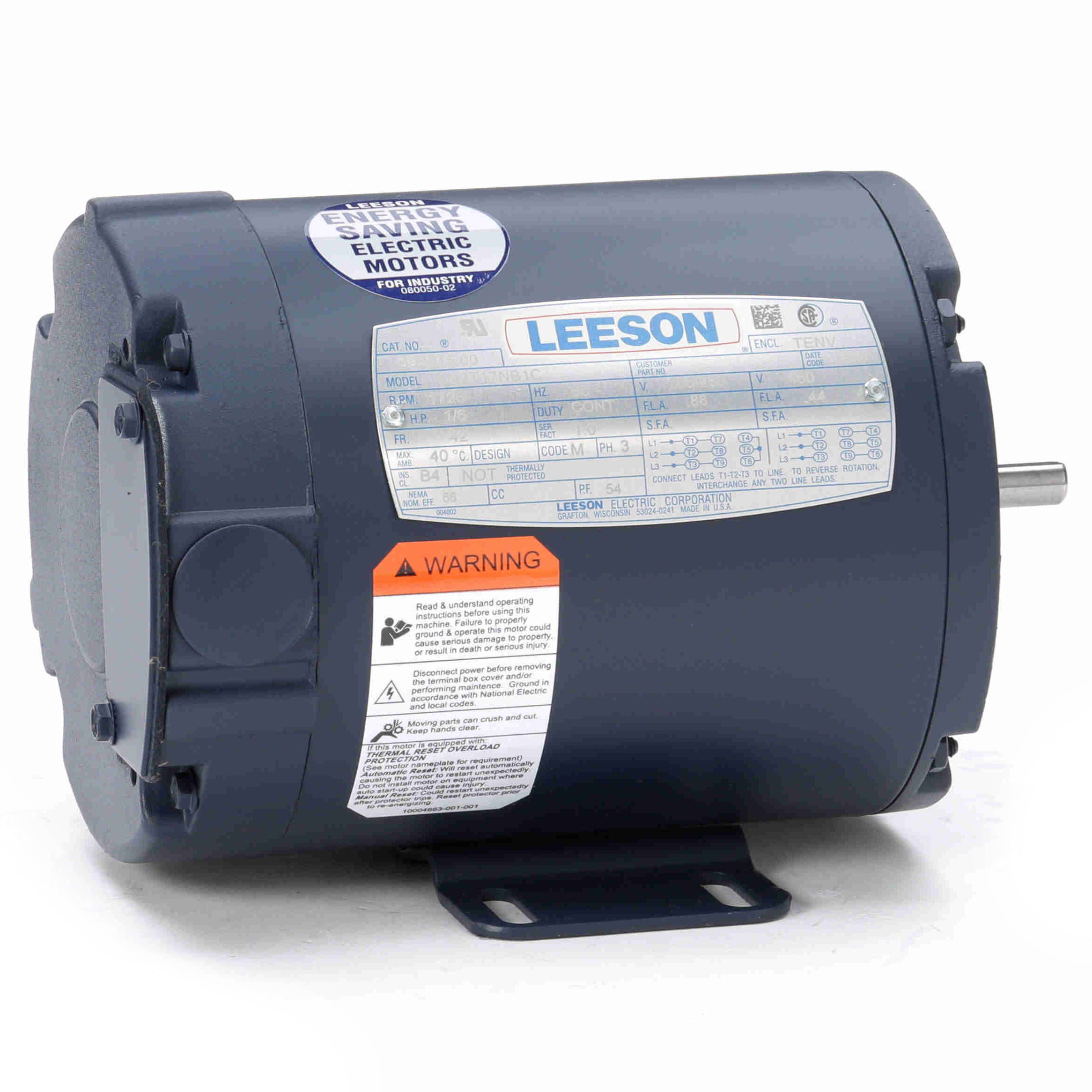

092015.00 Leeson 0.17HP Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 092015.00

Selected accessories will also be added to cart
$413.99 / Each
Quantity:
TENV, 42 Frame, 208-230VAC 3-Phase 60Hz, Rigid Base, Rolled Steel, 3/8" Shaft

Features

  • Standard efficient ratings
  • Inverter-rated; Continuous duty
  • Class B insulation systems – 42, 48 and 56 frames
  • UL recognized and CSA certified
  • Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
  • Dynamically balanced rotors
  • Torques exceed NEMA performance standards

General Specifications

UPC: 691720000700 Weight: 15.00 LB
Packaged Length: 14.44 IN Packaged Width: 7.94 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 0.17 Hp Output KW: 0.13 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 0.88/0.44 A Speed: 1725 rpm
Service Factor: 1 Phase: 3
Efficiency: 66 % Power Factor: 54
Duty: Continuous Insulation Class: B
Design Code: No Design Code KVA Code: M
Frame: 42 Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Resistance Main: 100 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Single Special Extension Overall Length: 7.56 in
Frame Length: 4.75 in Shaft Diameter: 0.375 in
Shaft Extension: 1.12 in Assembly/Box Mounting: F1 Only

Speed & Load Characteristics
