/Products/Electric Motors/3 Phase/Leeson/TENV, Rigid Base/100123.00 Leeson 0.25HP Electric Motor, 1800RPM

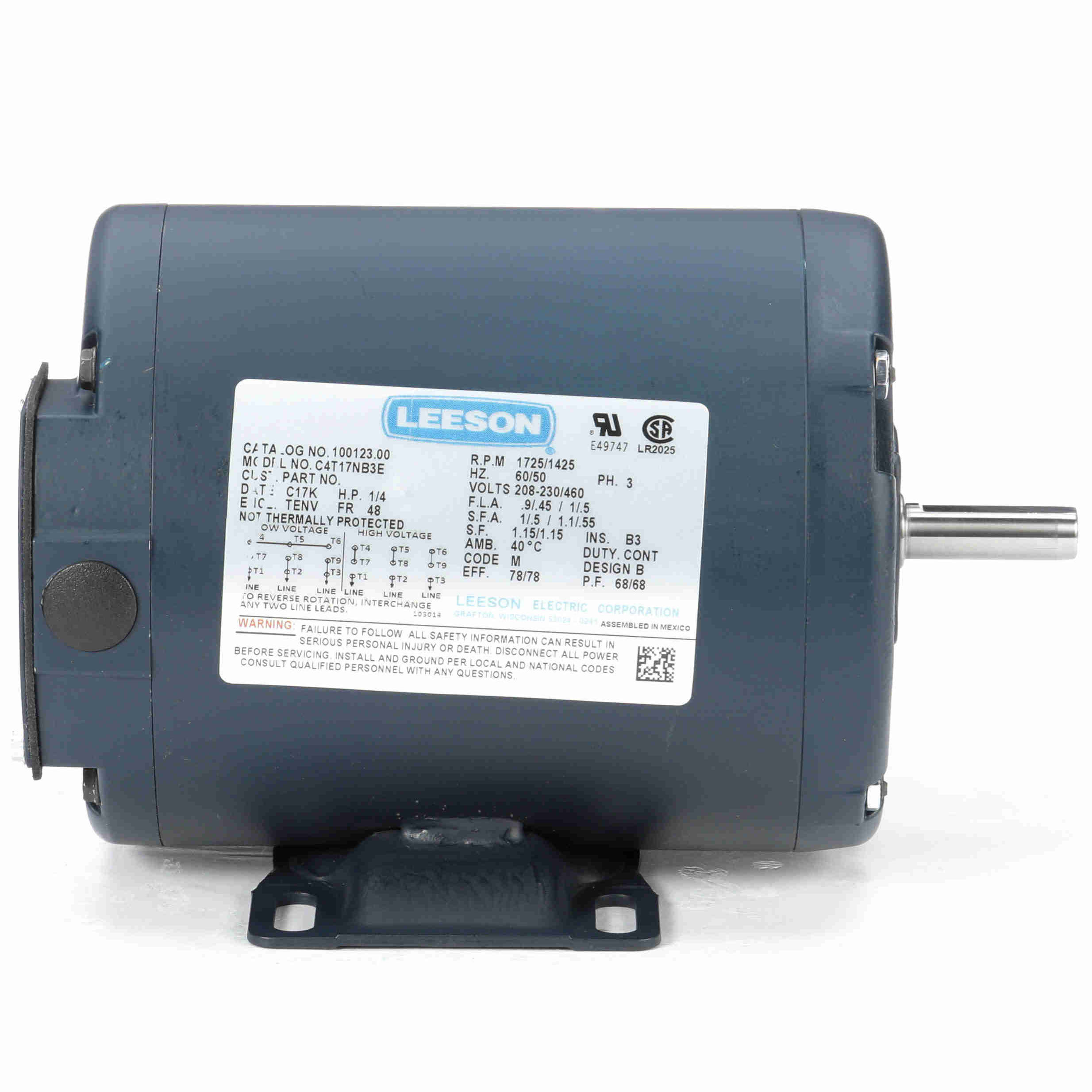

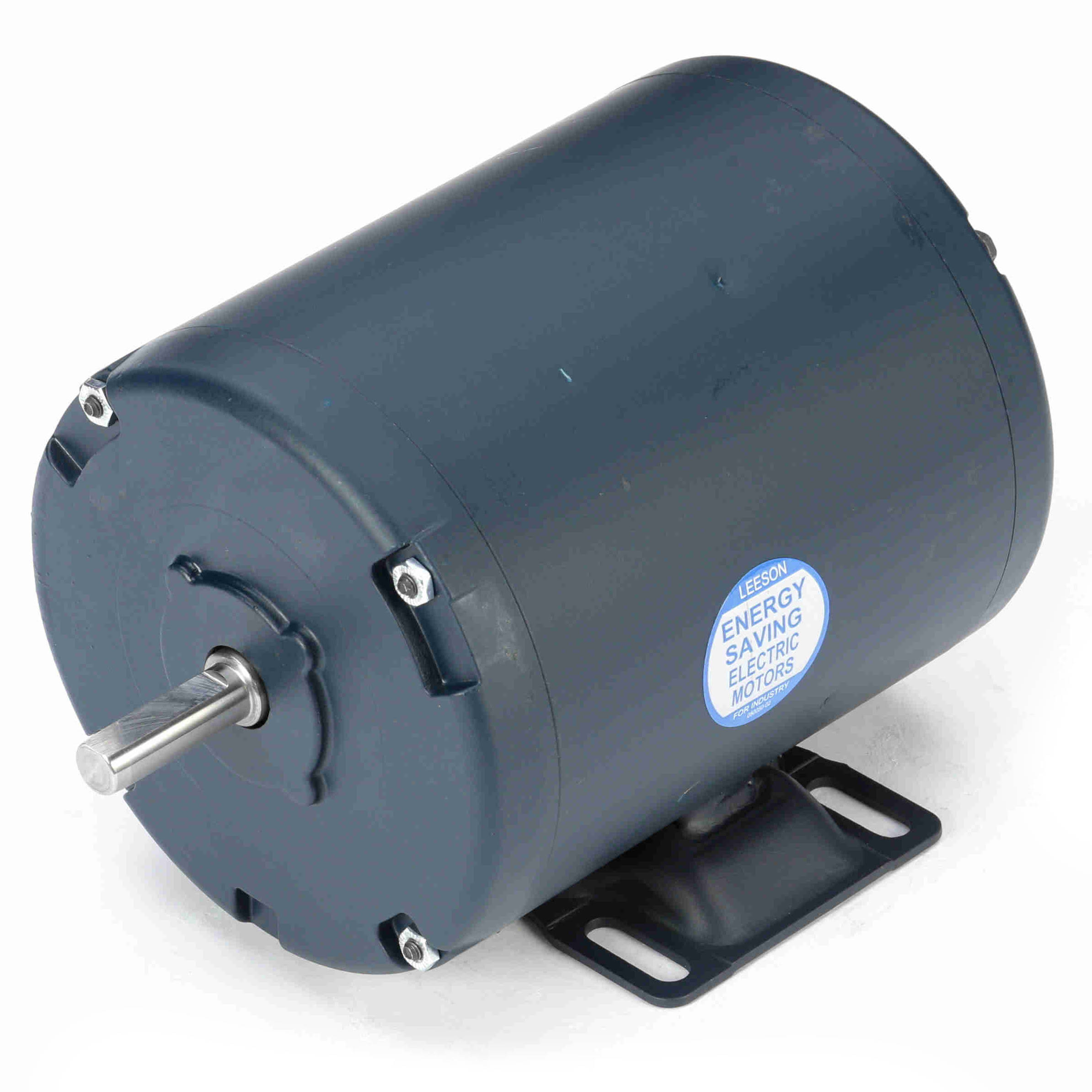

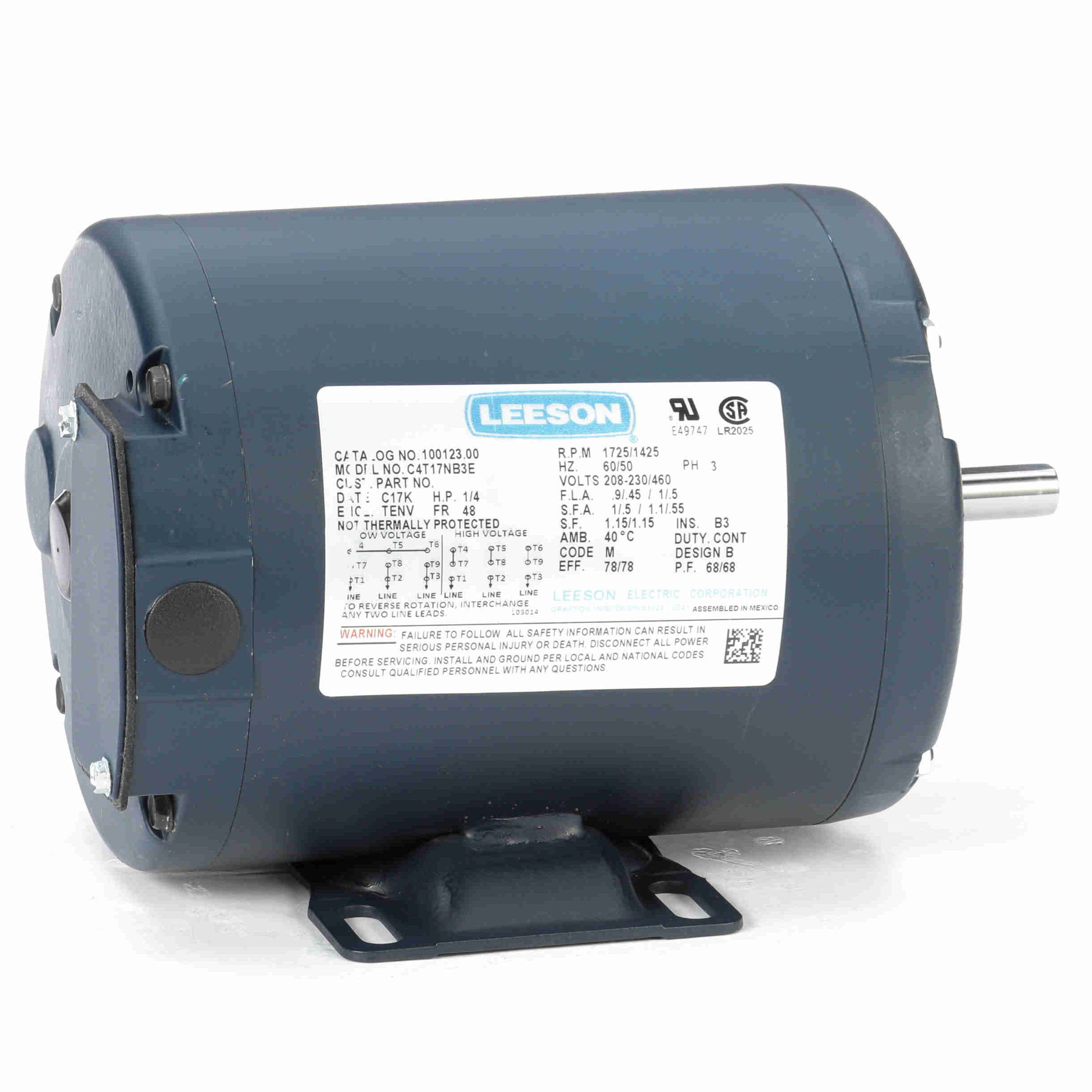

Click Image to Expand

Product ID: 100123.00

100123.00 Leeson 0.25HP Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 100123.00

Selected accessories will also be added to cart
$81.31 / Each
Quantity:
TENV, 48 Frame, 208-230/460VAC 3-Phase 60Hz, Rigid Base, Rolled Steel, 1/2" Shaft

Features

  • Standard efficient ratings
  • Inverter-rated; Continuous duty
  • Class B insulation systems – 42, 48 and 56 frames
  • UL recognized and CSA certified
  • Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
  • Dynamically balanced rotors
  • Torques exceed NEMA performance standards

General Specifications

UPC: 691720004609 Weight: 17.00 LB
Packaged Length: 13.25 IN Packaged Width: 6.94 IN
Packaged Height: 6.62 IN

Nameplate Specifications

Output HP: 0.25 Hp Output KW: 0.19 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 0.90-0.90/0.45 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 78 % Power Factor: 68
Duty: Continuous Insulation Class: B
Design Code: B KVA Code: M
Frame: 48 Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Resistance Main: 15.99 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 48 Overall Length: 9.18 in
Frame Length: 5.50 in Shaft Diameter: 0.500 in
Shaft Extension: 1.5 in Assembly/Box Mounting: F1 ONLY

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 0.49 0.0 12.06 0.0 1,750 0.25 63.7 0.25
Locked-Rotor 3.33 0.0 52.25 0.0 0 2.02 0.0 0.25
Break-Down 2.43 0.0 61.16 0.0 1,086 1.67 0.0 0.25
Pull-Up 3.30 0.0 52.05 0.0 143 2.01 0.0 0.25

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 % 175 % 200 %
Current (Amps) 0.40 0.41 0.42 0.45 0.49 0.53 0.59 0.65 0.72
Rated Output (KW) 0.05 0.10 0.15 0.20 0.25 0.30 0.36 0.42 0.48
Efficiency (%) 0.0 48.1 64.5 72.2 75.3 77.3 77.9 77.8 77.3
Power Factor (%) 16.2 30.3 42.8 54.2 63.5 71.0 76.5 81.0 84.0
Speed (RPM) 1,795 1,787 1,774 1,762 1,751 1,736 1,722 1,705 1,689
Temp. Rise @ FL 0.0 0.0 0.0 0.0 45.2 0.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 3.03 5.97 9.03 12.01 15.19 18.33 21.65 24.95
