/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/WEG 3-Phase Air Handling Electric Motors/Cooling Tower/TEAO, F-2 Mounting/10018AT3ECT405T-W22 WEG 100HP Cooling Tower Electric Motor, 1800RPM

Product ID: 10018AT3ECT405T-W22

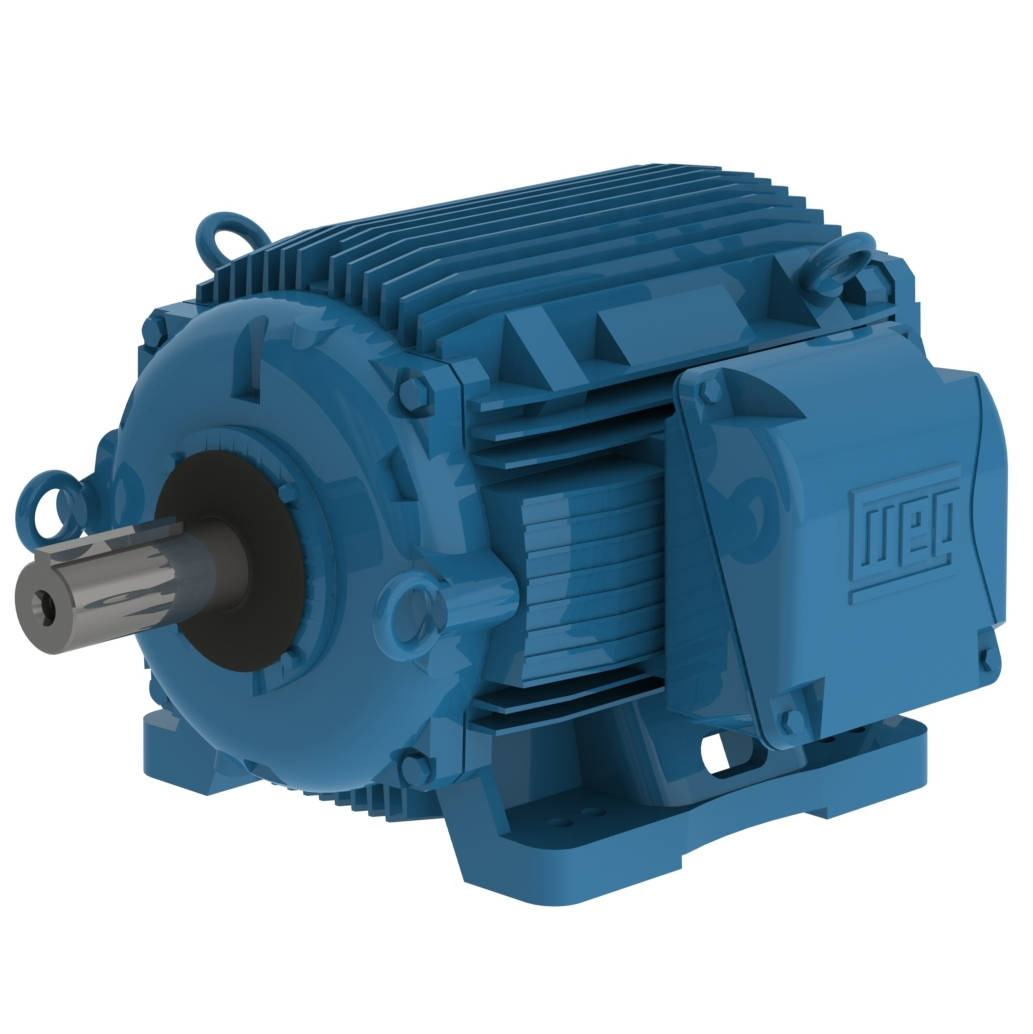

10018AT3ECT405T-W22 WEG 100HP Cooling Tower Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 10018AT3ECT405T-W22

Selected accessories will also be added to cart

$10,156.68 / Each

Quantity:

IC410 - TEAO, IP55, 404T/405T Frame, 208-230/460/380VAC 50/60Hz 3 Phase, 14409321, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, F2 Box Mounting, 2-7/8" Keyed Shaft

Electric Motors

Frame	404/5T
Output	100 HP (75 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1780 rpm
Slip	1.11 %
Rated voltage	208-230/460 V
Rated current	245-226/113 A
L. R. Amperes	1792-1650/825 A
LRC	7.3x(Code H)
No load current	65.5-76.0/38.0 A
Rated torque	295 ft.lb
Locked rotor torque	240 %
Breakdown torque	260 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	29.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-2
Rotation?	Both (CW and CCW)
Noise level?	68.0 dB(A)
Approx. weight?	1155 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.0	95.4

Power factor

50%	75%	100%
0.77	0.84	0.87

Frame	404/5T
Output	75 HP (55 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1485 rpm
Slip	1.00 %
Rated voltage	380 V
Rated current	102 A
L. R. Amperes	785 A
LRC	7.7x(Code H)
No load current	37.6 A
Rated torque	265 ft.lb
Locked rotor torque	260 %
Breakdown torque	280 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	29.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-2
Rotation?	Both (CW and CCW)
Noise level?	64.0 dB(A)
Approx. weight?	1155 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.0	94.4	95.0

Power factor

50%	75%	100%
0.72	0.83	0.86

Frame	404/5T
Output	75 HP (55 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1485 rpm
Slip	1.00 %
Rated voltage	400 V
Rated current	98.3 A
L. R. Amperes	826 A
LRC	8.4x(Code J)
No load current	40.1 A
Rated torque	265 ft.lb
Locked rotor torque	280 %
Breakdown torque	310 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	29.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-2
Rotation?	Both (CW and CCW)
Noise level?	64.0 dB(A)
Approx. weight?	1155 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.9	94.5	95.0

Power factor

50%	75%	100%
0.69	0.81	0.85

Frame	404/5T
Output	75 HP (55 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1485 rpm
Slip	1.00 %
Rated voltage	415 V
Rated current	95.9 A
L. R. Amperes	854 A
LRC	8.9x(Code K)
No load current	42.0 A
Rated torque	265 ft.lb
Locked rotor torque	290 %
Breakdown torque	330 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	29.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-2
Rotation?	Both (CW and CCW)
Noise level?	64.0 dB(A)
Approx. weight?	1155 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.6	94.5	95.0

Power factor

50%	75%	100%
0.66	0.79	0.84

Frame	404/5T
Output	100 HP (75 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	380 V
Rated current	138 A
L. R. Amperes	814 A
LRC	5.9x(Code F)
No load current	37.6 A
Rated torque	357 ft.lb
Locked rotor torque	190 %
Breakdown torque	210 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	29.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-2
Rotation?	Both (CW and CCW)
Noise level?	64.0 dB(A)
Approx. weight?	1155 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	94.1	93.6

Power factor

50%	75%	100%
0.82	0.86	0.88

Frame	404/5T
Output	100 HP (75 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	400 V
Rated current	131 A
L. R. Amperes	852 A
LRC	6.5x(Code G)
No load current	40.1 A
Rated torque	356 ft.lb
Locked rotor torque	210 %
Breakdown torque	229 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	29.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-2
Rotation?	Both (CW and CCW)
Noise level?	64.0 dB(A)
Approx. weight?	1155 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	94.5	94.1

Power factor

50%	75%	100%
0.79	0.85	0.88

Frame	404/5T
Output	100 HP (75 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	415 V
Rated current	127 A
L. R. Amperes	902 A
LRC	7.1x(Code H)
No load current	42.0 A
Rated torque	356 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	29.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-2
Rotation?	Both (CW and CCW)
Noise level?	64.0 dB(A)
Approx. weight?	1155 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	94.5	94.5

Power factor

50%	75%	100%
0.77	0.84	0.87

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Space Heater Voltage	110-127/200-240 V
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 4140 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Without Fan Cover
Tropicalized Painting	Complete (200h)
Joints Seal	Permatex
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
